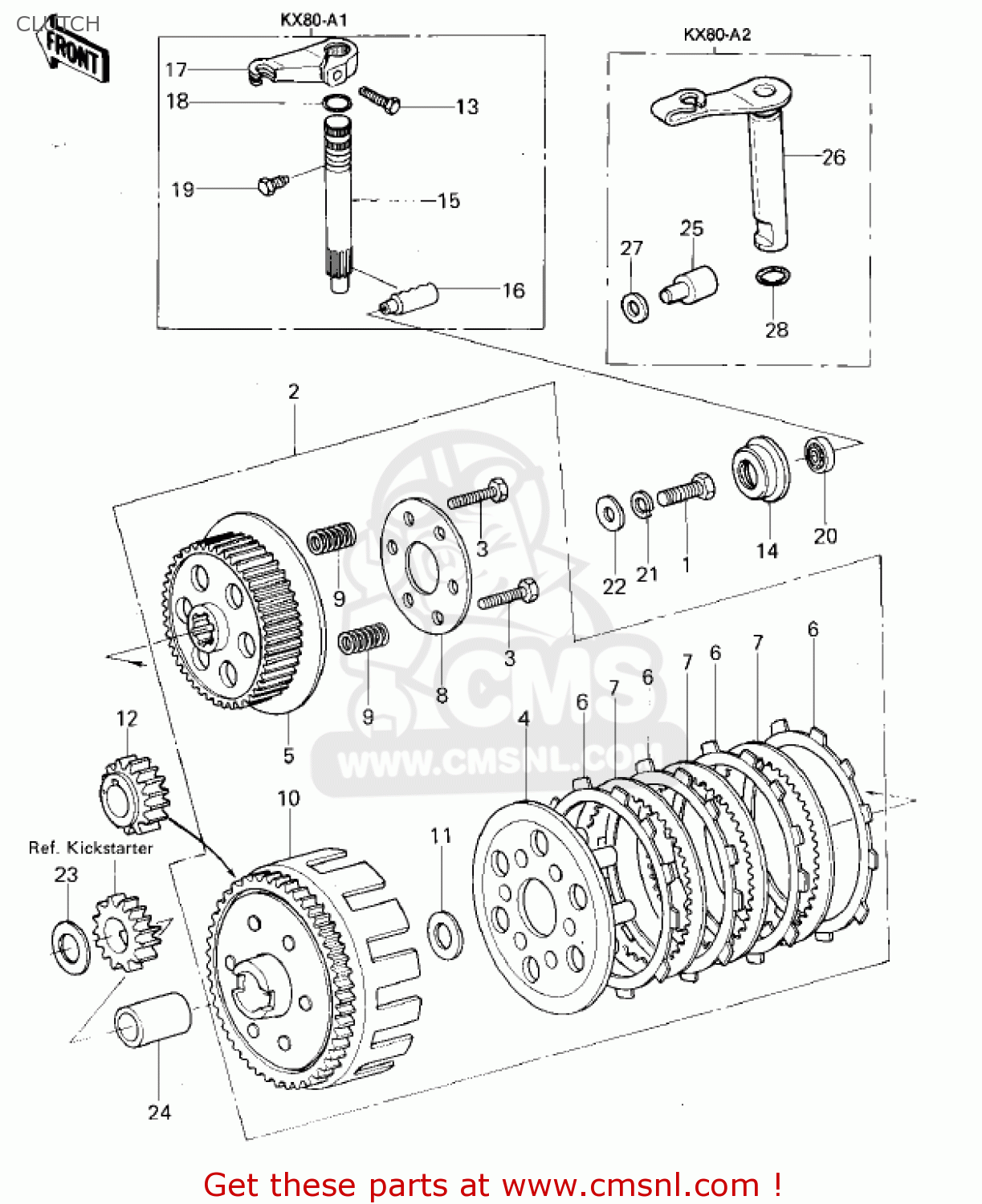

CLUTCH

ref

part #

description

quantity

1

115G0820
ref: 1

BOLT,8X20

€ 2.00

2

130811028
ref: 2
E/NO. ~002044

CLUTCH ASSY

€ 193.00

2

130811028
ref: 2
E/NO. 002045~

CLUTCH ASSY

€ 193.00

3

112G0516
ref: 3
KX80-A1

BOLT-UPSET

€ 0.50

3

110G0520
ref: 3
KX80-A2~

BOLT

€ 2.50

4

130861002
ref: 4

WHEEL,CLUTCH

€ 33.00

5

130871113
ref: 5

HUB-CLUTCH

€ 53.50

6

130881010
ref: 6

PLATE,CLUTCH FRICTION (NAS)

€ 11.00

7

130891009
ref: 7

PLATE-CLUTCH,STEEL (NAS)

€ 8.50

8

130911115
ref: 8

HOLDER,CLUTCH SPRING

€ 12.50

9

920811143
ref: 9
KX80-A1

SPRING,CLUTCH

€ 3.50

9

920811175
ref: 9
KX80-A2~

SPLING,CLUTCH

€ 4.00

10

130951018
ref: 10
E/NO. ~002044

HOUSING,CLUTCH

€ 163.50

10

130951018
ref: 10
E/NO. 002045~

HOUSING,CLUTCH

€ 163.50

11

920261034
ref: 11

SPACER,17X30X2

€ 1.00

12

130971015
ref: 12
KX80-A1

GEAR,PRIMARY,22T

€ 31.00

12

130971021
ref: 12
KX80-A2~

GEAR,PRIMARY

€ 40.50

13

112G0618
ref: 13
KX80-A1

BOLT-UPSET

€ 0.50

14

130911038
ref: 14

HOLDER,CLUTCH PUSHER

€ 8.00

15

131061003
ref: 15
KX80-A1

SHAFT,CLUTCH RELEASE

€ 18.50

16

131141003
ref: 16
KX80-A1

PUSHER,CHUTCH

€ 10.50

17

131681023
ref: 17
KX80-A1

LEVER,CLUTCH RELEASE

€ 22.00

18

670B1509
ref: 18
KX80-A1

O RING,9MM

€ 1.00

19

92003130
ref: 19
KX80-A1

BOLT,CLUTCH RELEASE

€ 3.50

20

920451211
ref: 20

BEARING-BALL

€ 11.00

21

461F0800
ref: 21

WASHER-SPRING,8MM

€ 0.50

22

920221561
ref: 22

WASHER,8.5X20X1.6

€ 2.50

23

92022255
ref: 23

WASHER

€ 5.50

24

920281057
ref: 24

BUSHING,CLUTCH

€ 12.50

25

131141004
ref: 25
KX80-A2~

PUSHER-CLUTCH

€ 16.50

26

132361019
ref: 26
KX80-A2~

LEVER,CLUTCH RELEASE

€ 34.50

27

410B0600
ref: 27
KX80-A2~

WASHER-PLAIN-SMALL,6M

€ 0.50

28

92055099
ref: 28
KX80-A2~

O RING, 8.8MM

€ 3.00

all assemblies
