FRAME/FRAME FITTINGS

KX80-A1 KX80 1979

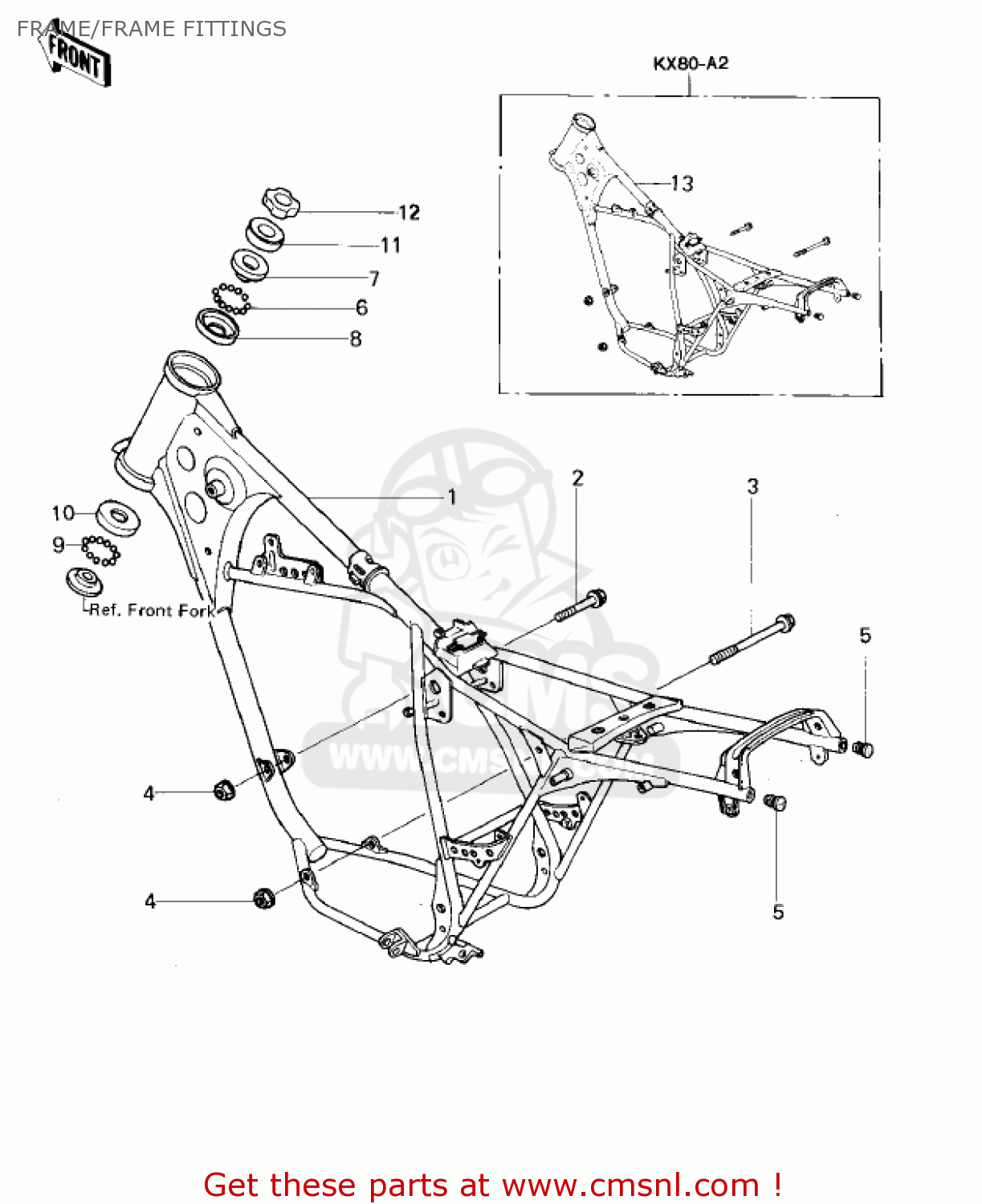

Frame/frame fittings diagram KX80-A1 KX80 1979

prices are in EUR

ref

part #

description

quantity

320021046
ref: 1
KX80-A1

FRAME

€ 425.00

130G0855
ref: 2

BOLT-FLANGED,8X55

€ 1.50

920011113
ref: 3

BOLT,FLANGED,8X115

€ 4.50

920151014
ref: 4

NUT,8MM

€ 0.50

920661034
ref: 5

PLUG,FRAME END

€ 3.00

600A0600
ref: 6

BALL-STEEL,3/16

€ 0.50

92047014
ref: 7

RACE,STEERING STEM BE

€ 12.50

92048009
ref: 8

RACE,STRG STM

€ 14.00

600A0800
ref: 9

BALL-STEEL,1/4

€ 0.50

92048005
ref: 10

RACE-STEERING BEARING

€ 11.50

46098018
ref: 11

CAP,STEERING STEM

€ 4.00

92090022
ref: 12

NUT,STEERING LOCK,25M

€ 18.50

320021120
ref: 13
KX80-A2

FRAME

€ 362.50
