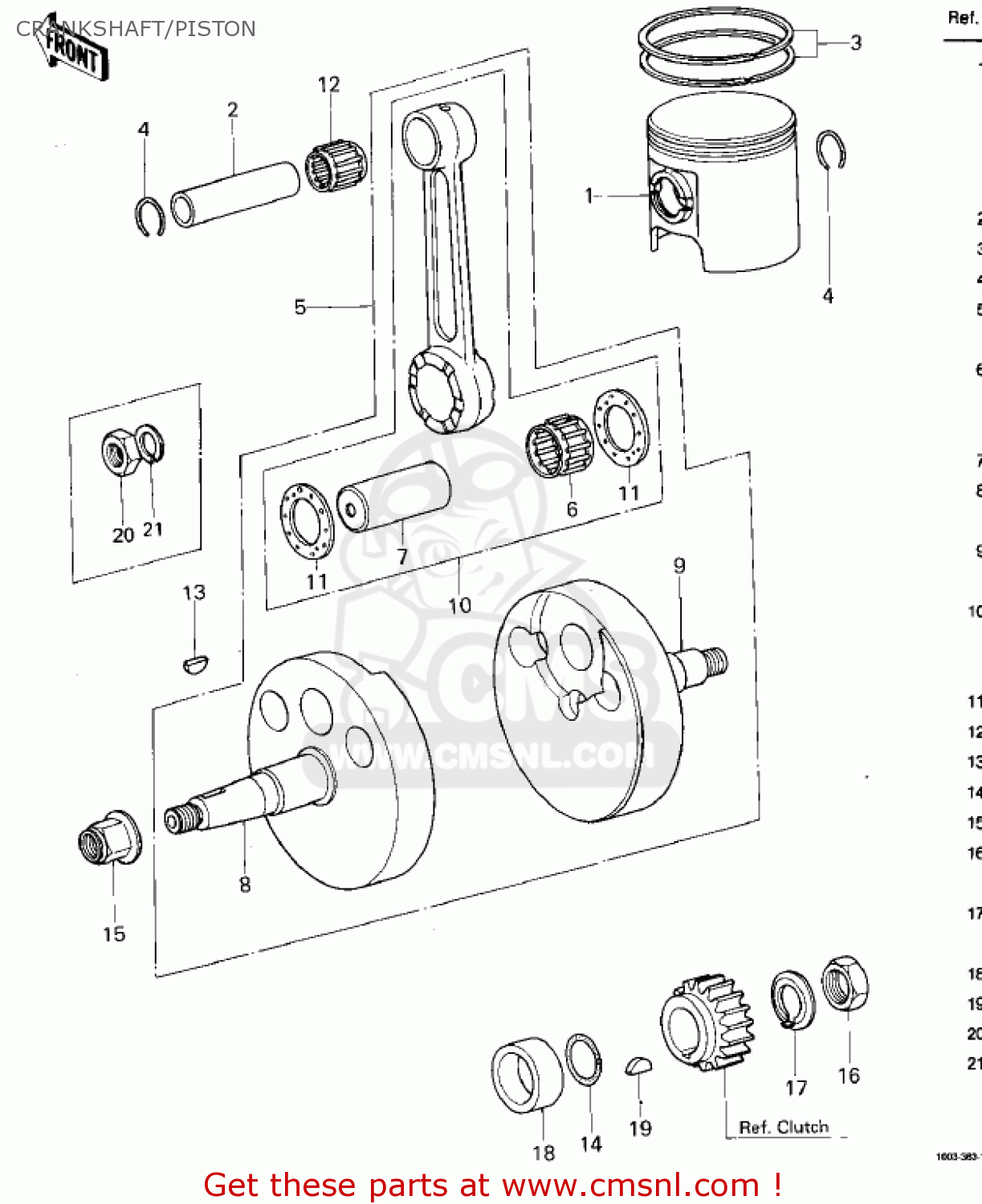

CRANKSHAFT/PISTON

ref

part #

description

quantity

1

130011082
ref: 1
~E/NO.008739

PISTON-ENGINE

€ 52.50

1

130011082
ref: 1
E/NO.008740~

PISTON-ENGINE

€ 52.50

1

130011082
ref: 1
KX80-C1

PISTON-ENGINE

€ 52.50

2

130021009
ref: 2

PIN-PISTON

€ 14.50

3

130085011
ref: 3

RING-SET-PISTON,STD

€ 47.50

4

92036003
ref: 4

CIRCLIP-PISTON PIN

€ 0.50

5

130311019
ref: 5
KX80-A1

CRANKSHAFT ASSY

€ 246.00

5

130311027
ref: 5
KX80-A2

CRANKSHAFT ASSY

€ 249.50

6

130341015
ref: 6
KX80-A1

BEARING,NEEDLE

€ 34.50

6

130341015
ref: 6
KX80-A2

BEARING,NEEDLE

€ 34.50

7

130351002
ref: 7

PIN,CRANK

€ 17.00

8

130371025
ref: 8
KX80-A1

CRANKSHAFT,L.H.

€ 62.50

8

130371053
ref: 8
KX80-A2

CRANKSHAFT,L.H

€ 118.00

9

130371026
ref: 9
KX80-A1

CRANKSHAFT,R.H.

€ 85.00

9

130371054
ref: 9
KX80-A2

CRANKSHAFT,R.H

€ 70.50

10

130445014
ref: 10
KX80-A1

CONNECTING ROD SET

€ 69.50

10

130445014
ref: 10
KX80-A2

CONNECTING ROD SET

€ 69.50

11

92025005
ref: 11

SHIM,20X34.5X1.0

€ 4.50

12

13033030
ref: 12

BEARING-NEEDLE,KTV141

€ 23.50

13

510A3200
ref: 13

KEY-WOODRUFF

€ 1.50

14

670B2016
ref: 14
KX80-A1

O RING,16MM

€ 1.00

15

92015076
ref: 15
KX80-A1

NUT,FLANGED CAP,10MM

€ 9.00

16

920151064
ref: 16
KX80-A1

NUT,12M/M

€ 3.00

16

92015006
ref: 16
KX80-A2

NUT,12MM

€ 3.50

17

920221063
ref: 17
KX80-A1

WASHER,CLAW,12.5X32X0

€ 3.50

17

92024003
ref: 17
KX80-A2

WASHER,CLAW,12.5X25X0

€ 2.50

18

920271146
ref: 18
KX80-A1

COLLAR,20X28X12

€ 9.50

19

92038003
ref: 19

WOODRUFF KEY-PRY PINI

€ 1.50

20

314G1000
ref: 20
KX80-A2

NUT,10M/M

€ 1.00

21

461F1000
ref: 21
KX80-A2

WASHER-SPRING,10MM

€ 0.50
