IGNITION (74-76)
KX250-A3 1976

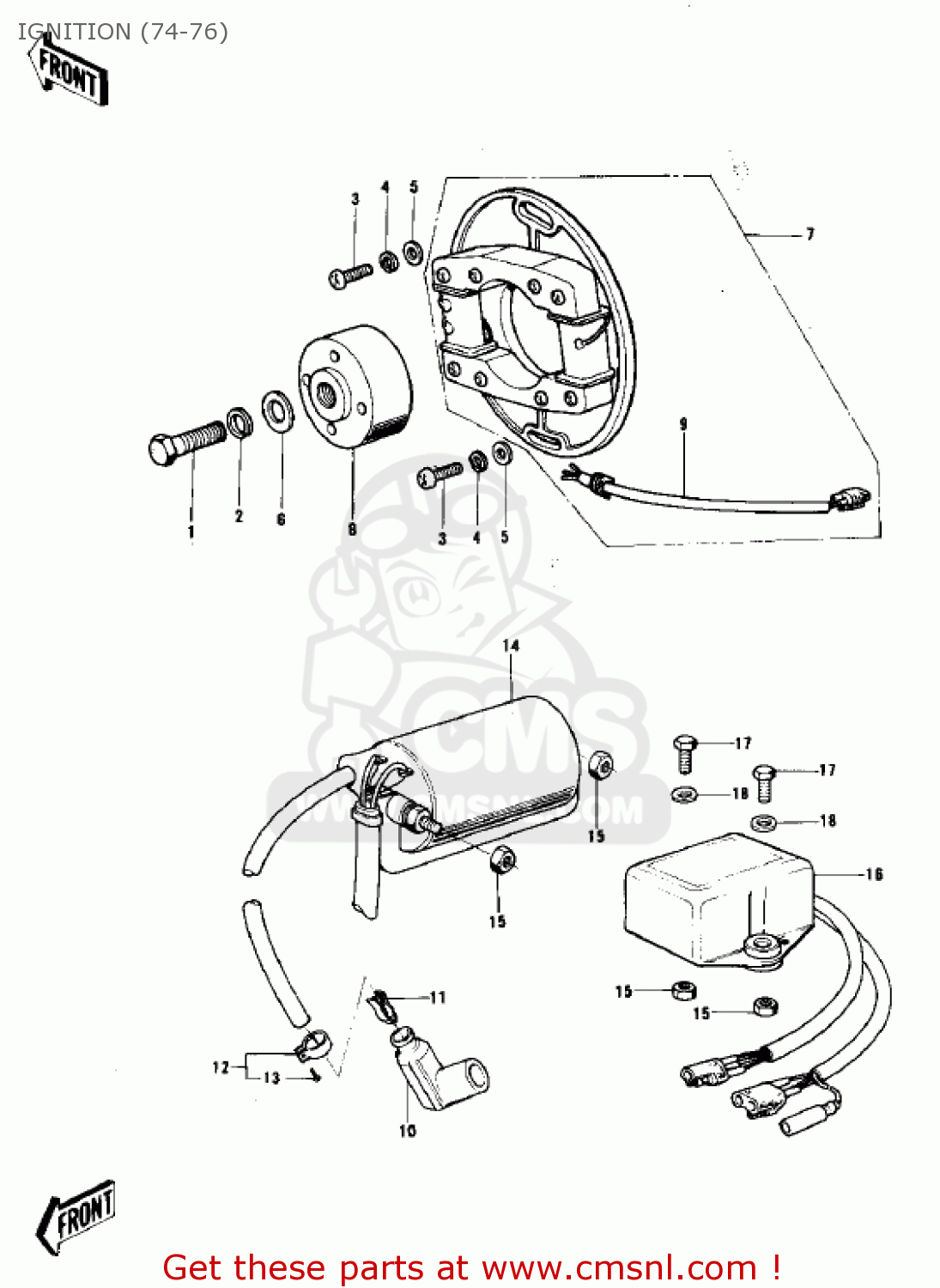

Ignition (74-76) diagram KX250-A3 1976
IGNITION (74-76) KX250-A3 1976
×
prices are in EUR
ref
part #
description
quantity
1
920011578
ref: 1
BOLT,FLANGED,8X40
€ 4.00
2
461F0800
ref: 2
WASHER-SPRING,8MM
€ 0.50
3
220B0625
ref: 3
SCREW-PAN HEAD,6X25
€ 1.50
4
461F0600
ref: 4
WASHER-SPRING,6MM
€ 0.50
5
410B0600
ref: 5
WASHER-PLAIN-SMALL,6M
€ 0.50
6
92022276
ref: 6
O.D=220
WASHER,PLAIN,8MM
€ 6.50
7
21003020
ref: 7
STATOR ASSY
€ 505.50
8
21007026
ref: 8
ROTOR,MAGNETO
€ 256.50
9
21029027
ref: 9
WIRING,HARNESS,MAGNT
€ 34.50
10
211301006
ref: 10
CAP-SPARK PLUG
€ 18.00
11
21169001
ref: 11
TERMINAL,PLUG CAP
€ 10.00
12
920371173
ref: 12
CLAMP,SPARK PLUG CAP
€ 1.00
13
220B0310
ref: 13
SCREW-PAN-CROS,3X10
€ 2.00
14
21121070
ref: 14
COIL,IGNITION
€ 100.00
15
92019019
ref: 15
NUT,6MM
€ 4.00
16
21119018
ref: 16
IGNITION UNIT
€ 386.00
17
112G0618
ref: 17
BOLT-UPSET
€ 0.50
18
92022024
ref: 18
WASHER,7X16X1.2
€ 2.50
