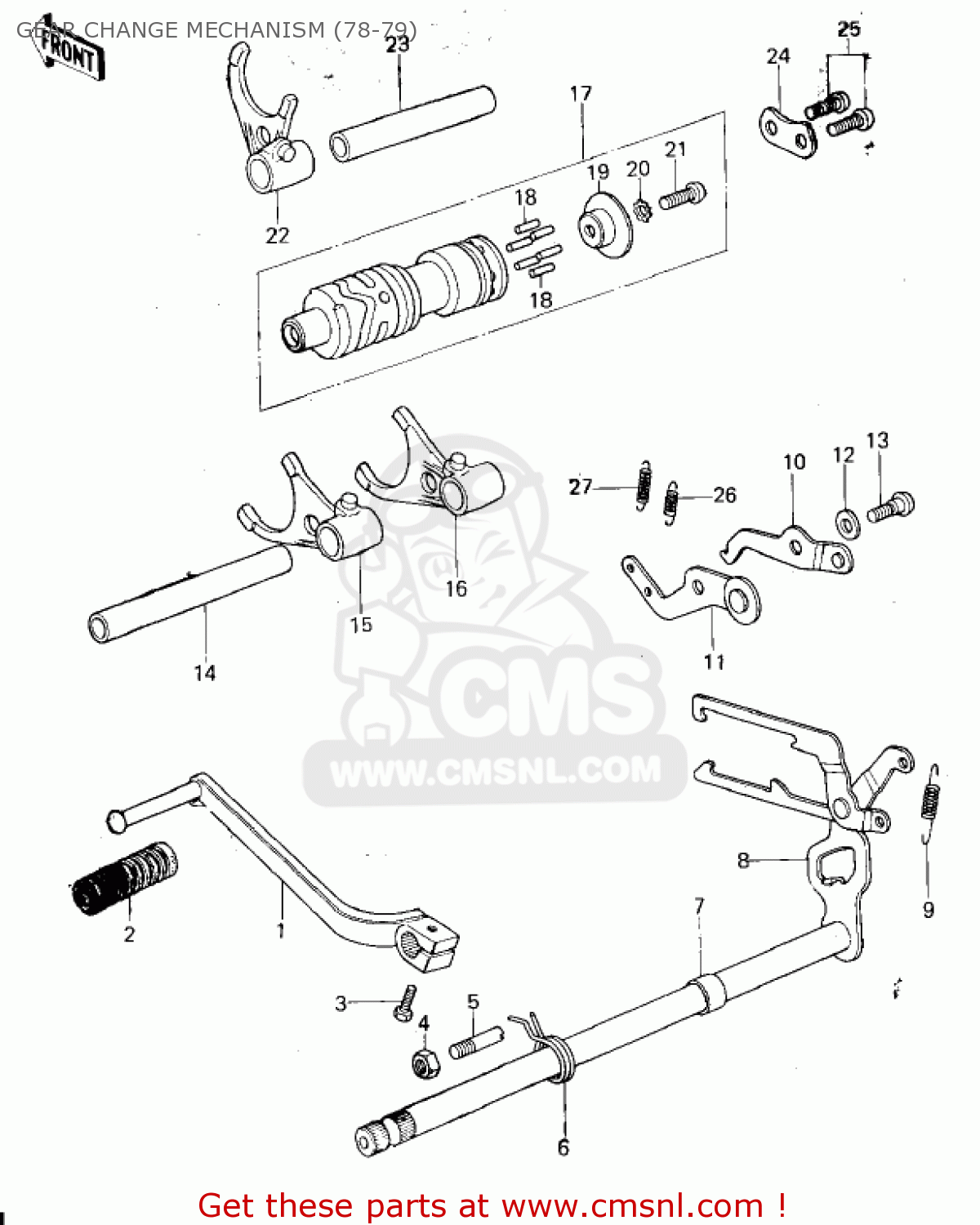

GEAR CHANGE MECHANISM (78-79)

ref

part #

description

quantity

1

131561008
ref: 1

PEDAL ASSY,CHANGE

€ 41.00

2

921601108
ref: 2

DAMPER,CHANGE PEDAL

€ 5.50

3

112G0620
ref: 3

BOLT 6X20

€ 1.00

4

312B0800
ref: 4

NUT,8MM

€ 0.50

5

920011401
ref: 5

BOLT,RETURN SPRING

€ 3.00

6

920811129
ref: 6

SPRING,TENTION

€ 6.50

7

92027189
ref: 7

COLLAR,13X18X11.5

€ 6.00

8

131611003
ref: 8

LEVER ASSY,GEAR CHANG

€ 55.00

9

92081076
ref: 9

SPRING-CHANG LEVER

€ 3.50

10

13236007
ref: 10

LEVER-COMP,GEAR CHNG

€ 13.00

11

132361001
ref: 11

LEVER,CHANGE DRUM

€ 6.00

12

920221053
ref: 12
O.D=14

WASHER,PLAIN

€ 1.50

13

92011023
ref: 13

SCREW-PAN HEAD

€ 2.50

14

490471003
ref: 14

ROD,SHIFT 93.7MM

€ 18.00

15

131401004
ref: 15

SHIFT FORK,2ND&3RD

€ 72.00

16

131401003
ref: 16

SHIFT FORK,LOW

€ 53.50

17

132391003
ref: 17

DRUM ASSY,GEAR CHANGE

€ 109.50

18

92042029
ref: 18

PIN,GEAR CHANGE DRUM

€ 3.50

19

13142014
ref: 19

HOLDER,CHANGE DRUM PI

€ 14.00

20

464H0600
ref: 20

WASHER-LOCK,6MM

€ 0.50

21

220B0614
ref: 21

SCREW-PAN HEAD,6X14

€ 2.00

22

131401005
ref: 22

SHIFT FORK,4TH&TOP

€ 39.00

23

490471002
ref: 23

ROD,SHIFT 71.7MM

€ 32.00

24

13169012
ref: 24

PLATE,CHANGE DRAM

€ 11.50

25

220B0614
ref: 25

SCREW-PAN HEAD,6X14

€ 2.00

26

92081091
ref: 26

SPRING-COIL

€ 3.50

27

92081119
ref: 27

SPRING,CHANGE LEVER

€ 3.00
