GEAR CHANGE MECHANISM (74-76)
KX250-A3 1976

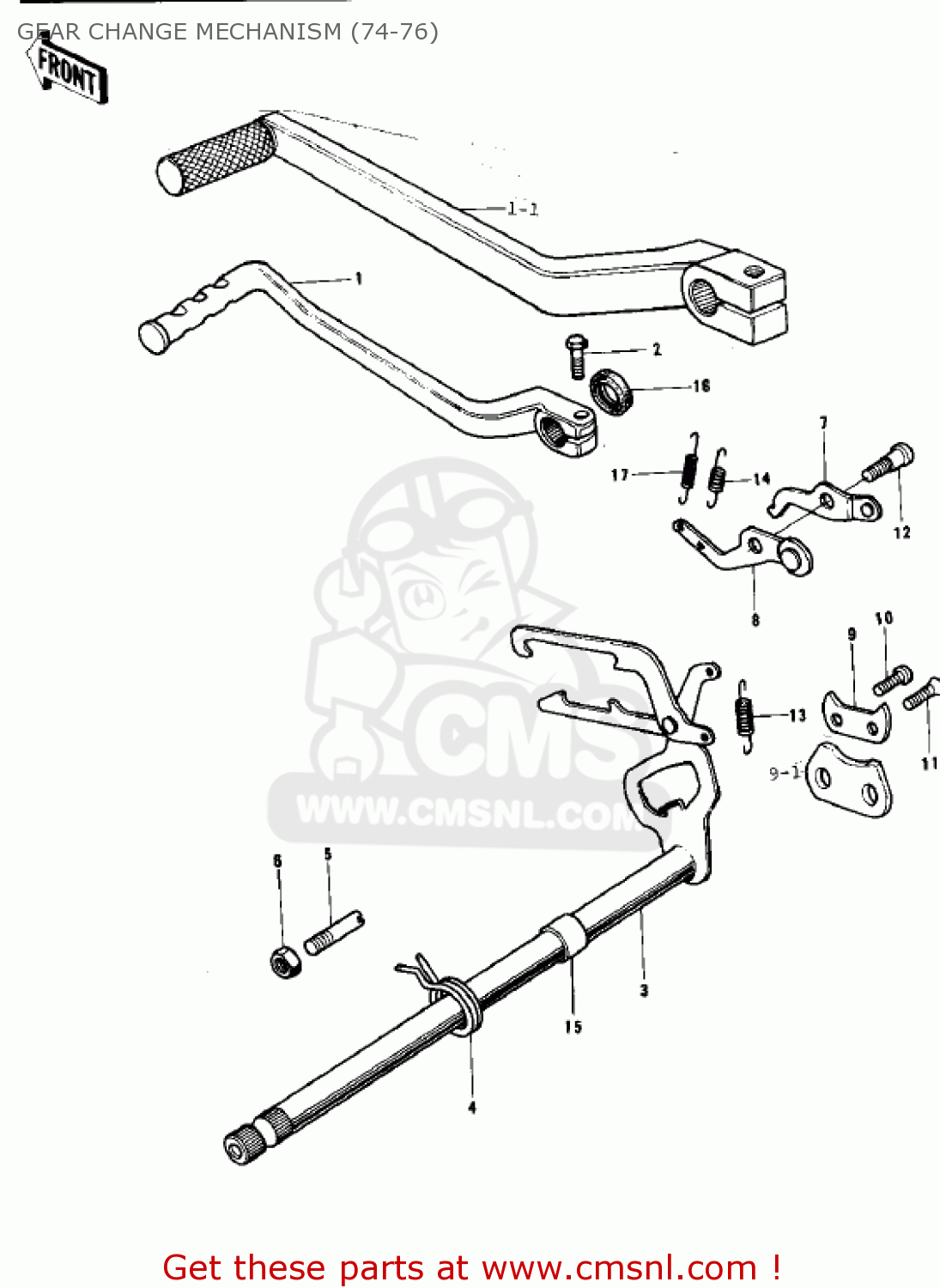

Gear change mechanism (74-76) diagram KX250-A3 1976
GEAR CHANGE MECHANISM (74-76) KX250-A3 1976
×
prices are in EUR
ref
part #
description
quantity
1
13156055
ref: 1
PEDAL,GEAR CHANGE
€ 43.00
1-1
13156059
ref: 1-1
KX250A/-A3
PEDAL,GEAR CHANGE
€ 44.50
2
112G0620
ref: 2
BOLT 6X20
€ 1.00
3
13161033
ref: 3
LEVER ASSY,GEAR CHNG
€ 45.50
4
920811129
ref: 4
SPRING,TENTION
€ 6.50
5
920011401
ref: 5
BOLT,RETURN SPRING
€ 3.00
6
312B0800
ref: 6
NUT,8MM
€ 0.50
7
13236006
ref: 7
LEVER ASSY,GEAR CHNG
€ 10.00
8
13236007
ref: 8
LEVER-COMP,GEAR CHNG
€ 13.00
9
13169012
ref: 9
USE FOR P/N
PLATE,CHANGE DRAM
€ 11.50
9-1
13169012
ref: 9-1
USE FOR P/N
PLATE,CHANGE DRAM
€ 11.50
10
220B0614
ref: 10
(2 REQ FOR KX250A)
SCREW-PAN HEAD,6X14
€ 2.00
11
221B0614
ref: 11
(N/R FOR KX250A)
SCREW-CNTSNK HD,6X14
€ 2.50
12
92011023
ref: 12
SCREW-PAN HEAD
€ 2.50
13
92081076
ref: 13
SPRING-CHANG LEVER
€ 3.50
14
92081077
ref: 14
SPRING-COIL
€ 3.00
15
92027189
ref: 15
COLLAR,13X18X11.5
€ 6.00
16
92051005A
ref: 16
OIL SEAL,TB13225.5
€ 5.50
17
92081119
ref: 17
SPRING,CHANGE LEVER
€ 3.00
