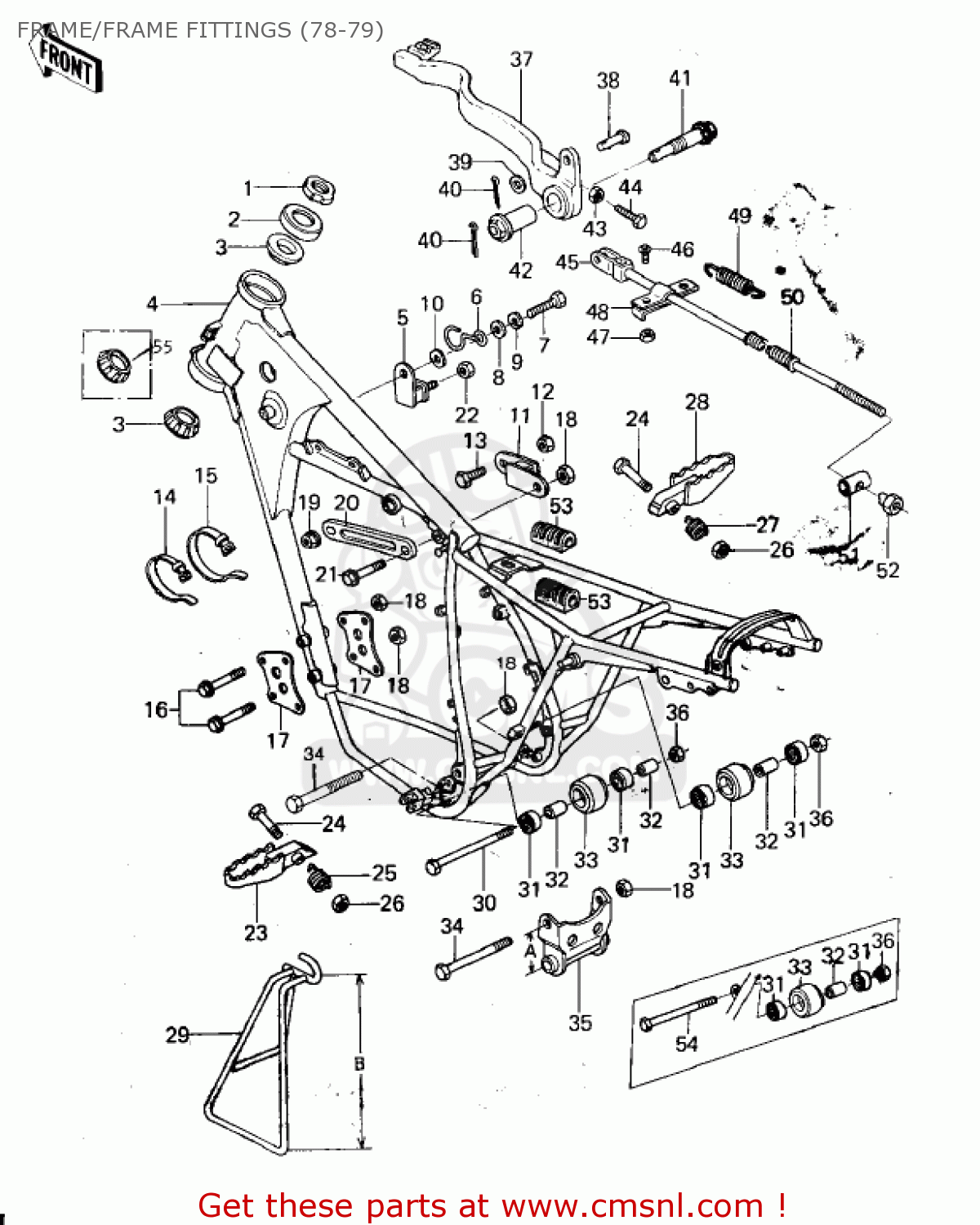

FRAME/FRAME FITTINGS (78-79)

ref

part #

description

quantity

1

920151546
ref: 1

NUT,25MM,T=12

€ 14.50

2

46098015
ref: 2

CAP,STEERING STEM

€ 3.50

3

92047017
ref: 3
KX250-A4

CONE,STRNG,STEM

€ 49.50

3

92047017
ref: 3
KX250-A5+

CONE,STRNG,STEM

€ 49.50

4

320021014
ref: 4
KX250-A4

FRAME

€ 992.50

4

320021073
ref: 4
KX250-A5+

FRAME

€ 943.00

5

920751060
ref: 5

DAMPER,MUFFLER FITTIN

€ 18.50

6

920371064
ref: 6

CLAMP,CABLE

€ 5.50

7

115G0825
ref: 7

BOLT-HEX,HEAD,8X25

€ 3.00

8

411B0800
ref: 8

WASHER-PLAIN,8MM

€ 0.50

9

461F0800
ref: 9

WASHER-SPRING,8MM

€ 0.50

10

920221561
ref: 10

WASHER,8.5X20X1.6

€ 2.50

11

920751025
ref: 11

DAMPER,MUFFLER FITTNG

€ 8.50

12

92019008
ref: 12

NUT-LOCK,6MM

€ 3.00

13

112G0612
ref: 13

BOLT-UPSET

€ 2.50

14

92072031
ref: 14
KX250-A4

BAND,MIDDLE

€ 3.00

14

92072031
ref: 14
KX250-A5+

BAND,MIDDLE

€ 3.00

15

92072056
ref: 15

BAND,RUBBER

€ 3.00

16

920011033
ref: 16

BOLT,HEX HEAD,10X66.5

€ 5.50

17

320291090
ref: 17
KX250-A4

BRACKET,ENGINE

€ 23.50

17

320291090
ref: 17
KX250-A5+

BRACKET,ENGINE

€ 23.50

18

92019021
ref: 18

NUT,LOCK,10M/M

€ 2.00

19

920151021
ref: 19

NUT,10MM

€ 3.00

20

320291089
ref: 20
KX250-A4

BRACKET,ENGINE

€ 29.50

20

320291089
ref: 20
KX250-A5+

BRACKET,ENGINE

€ 29.50

21

920011030
ref: 21

BOLT,HEX HEAD,10X58

€ 6.00

22

92019018
ref: 22

NUT,8MM

€ 5.50

23

340281034
ref: 23

STEP,LH

€ 64.50

24

920011028
ref: 24

BOLT,HEX HEAD,10X40

€ 7.50

25

920811254
ref: 25

SPRING,FOOTREST,L.H

€ 3.50

26

92019021
ref: 26

NUT,LOCK,10M/M

€ 2.00

27

920811255
ref: 27

SPRING,FOOTREST,R.H

€ 4.50

28

340281033
ref: 28

STEP,RH

€ 36.00

29

340241012
ref: 29
KX250-A4

STAND,SIDE

€ 37.00

29

340241029
ref: 29
KX250-A5+

STAND,SIDE

€ 29.00

30

920011093
ref: 30

BOLT,8X78.5

€ 3.00

31

920451009
ref: 31

BEARING-BALL,608LLU/2

€ 34.50

32

920271081
ref: 32

COLLAR

€ 6.50

33

921221014
ref: 33

ROLLER

€ 9.50

34

920011031
ref: 34

BOLT,HEX HEAD,10X105

€ 6.00

35

320291021
ref: 35
KX250-A4

BRACKET,ENGINE,REAR

€ 15.50

35

320291073
ref: 35
KX250-A5+

BRACKET,ENGINE

€ 16.50

36

92017013
ref: 36

NUT,LOCK,8MM

€ 5.50

37

430011007
ref: 37

PEDAL,BRAKE

€ 65.50

38

92043064
ref: 38

PIN-BRAKE ROD FITTING

€ 4.50

39

410B0600
ref: 39

WASHER-PLAIN-SMALL,6M

€ 0.50

40

550D2015
ref: 40

PIN-COTTER,2.0X15

€ 1.00

41

920011036
ref: 41

BOLT,HEX HEAD,12MM

€ 6.50

42

920011035
ref: 42

BOLT,HEX HEAD,12MM

€ 8.50

43

311B0600
ref: 43

NUT,6MM

€ 0.50

44

112G0625
ref: 44
KX250-A4

BOLT-UPSET,6X25

€ 4.00

44

920011090
ref: 44
KX250-A5+

BOLT,HEX HEAD,6X25

€ 2.50

45

430111002
ref: 45
KX250-A4

ROD,BRAKE

€ 10.00

45

430111012
ref: 45
KX250-A5+

ROD,BRAKE

€ 16.50

46

220B0306
ref: 46
KX250-A4

SCREW-PAN-CROS

€ 0.50

47

311B0300
ref: 47
KX250-A4

NUT-HEX

€ 0.50

48

920371032
ref: 48
KX250-A4

CLAMP,RETURN SPRING

€ 3.50

49

920811059
ref: 49

SPRING,RETURN

€ 5.50

50

43012001
ref: 50

SPRING,BRAKE ROD

€ 3.00

51

920431024
ref: 51

PIN,BRAKE

€ 6.00

52

92015042
ref: 52

NUT-BRAKE ROD ADJUST

€ 4.00

53

920751096
ref: 53
KX250-A4

DAMPER RUBBER

€ 2.00

54

920011182
ref: 54
KX250-A5+

BOLT,10X45

€ 6.00

55

921161008
ref: 55
KX250-A5+

BEARING-ROLLER,LWR,32

€ 78.00

FRAME/FRAME FITTINGS (78-79)
