FRONT FORK (KX250-A5) (78-79)
KX250-A3 1976

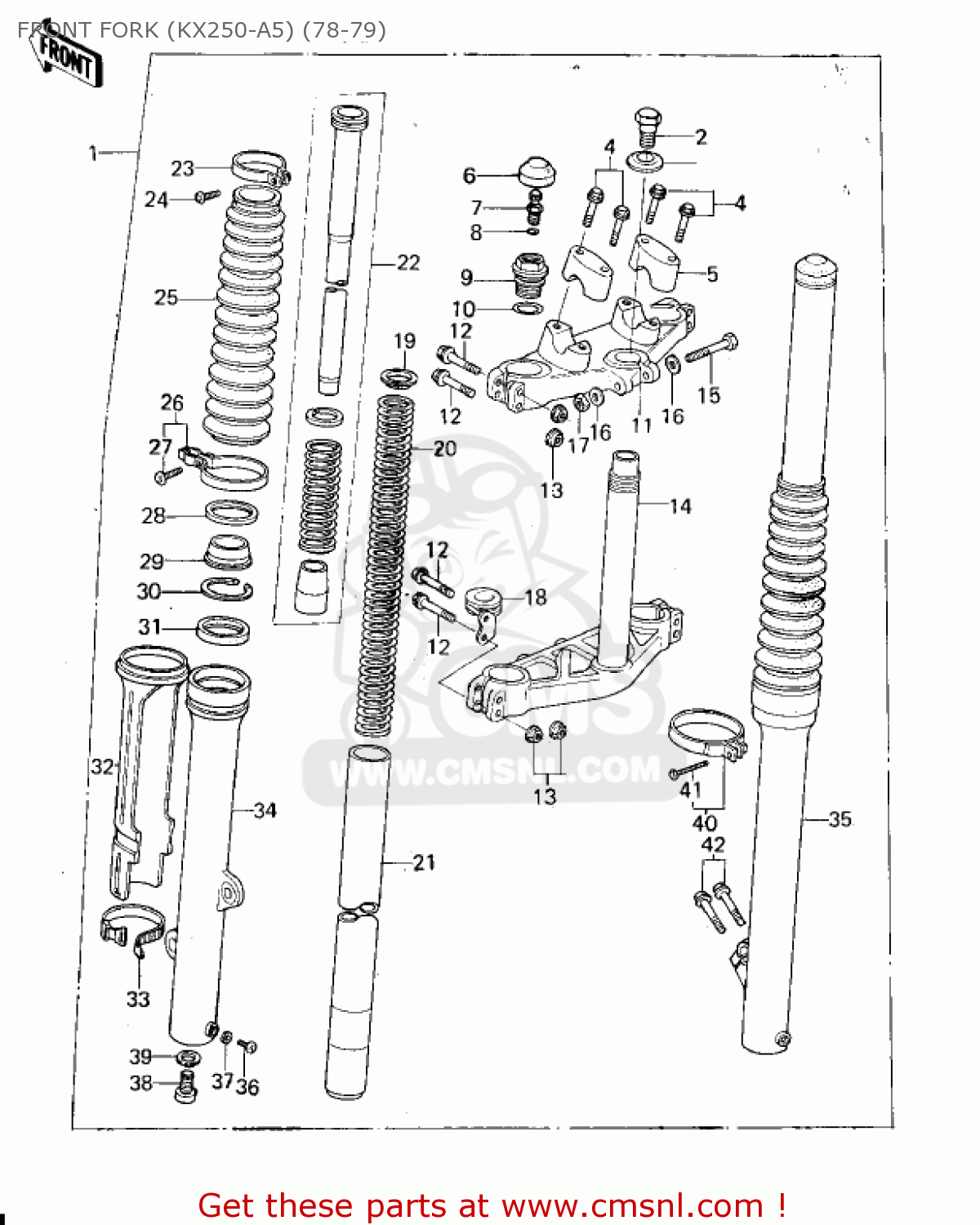

Front fork (kx250-a5) (78-79) diagram KX250-A3 1976
FRONT FORK (KX250-A5) (78-79) KX250-A3 1976
×
prices are in EUR
ref
part #
description
quantity
1
440011080
ref: 1
FRONT FORK ASSY
€ 1,289.00
2
44041065
ref: 2
14 X 20
BOLT,FORK TOP
€ 18.50
3
44043052
ref: 3
WASHER,PLAIN
€ 6.00
4
920011059
ref: 4
BOLT,HEX HEAD,8X35
€ 5.50
5
460121003
ref: 5
HOLDER,HANDLEBAR
€ 8.50
6
440291009
ref: 6
SEAT-FORK SPRING
€ 4.00
7
161261003
ref: 7
VALVE,AIR
€ 22.50
8
920551018
ref: 8
RING-O,AIR VALVE
€ 2.50
9
440291008
ref: 9
CAP,FORK TOP
€ 38.50
10
920551050
ref: 10
RING-O,FORK TOP CAP
€ 4.00
11
440391022
ref: 11
HEAD,STEERING STEM
€ 108.00
12
920011060
ref: 12
BOLT,HEX HEAD,8X53
€ 2.00
13
440071002
ref: 13
NUT,8M/M
€ 2.00
14
440371026
ref: 14
STEM,STEERING
€ 214.50
15
920011141
ref: 15
BOLT,HEX HEAD,8X57
€ 2.00
16
410B0800
ref: 16
WASHER-PLAIN-SMALL,8M
€ 0.50
17
920151124
ref: 17
NUT,LOCK,8MM
€ 3.50
18
920721027
ref: 18
BAND,CABLE
€ 12.50
19
440281003
ref: 19
GUIDE-FORK SPRING
€ 7.50
20
440261027
ref: 20
SPRING,FORK INNER
€ 23.50
21
440131018
ref: 21
TUBE,FORK INNER
€ 165.00
22
440221019
ref: 22
CYLINDER ASSY,FORK
€ 39.00
23
920721008
ref: 23
BAND,BOOTS
€ 7.50
24
220B0414
ref: 24
SCREW-PAN-CROS
€ 2.00
25
490061027
ref: 25
LIME GREEN
BOOT,FORK,L.GREEN
€ 42.00
26
920721026
ref: 26
CLAMP,BOOT,L.H
€ 8.50
27
220B0620
ref: 27
SCREW-PAN HEAD,6X20
€ 2.50
28
320991010
ref: 28
CASE,DUST SHIELD
€ 8.50
29
920931022
ref: 29
DUST SHIELD,FORK OT T
€ 8.50
30
920331035
ref: 30
SNAP RING,FORK OUT TU
€ 2.50
31
920491042
ref: 31
OIL SEAL,FORK OUTE TU
€ 13.50
32
550201022
ref: 32
LIME GREEN
GUARD,FORK
€ 14.50
33
920721009
ref: 33
BAND,BOOTS
€ 3.00
34
440051021
ref: 34
TUBE,L.H.FORK OUTER
€ 205.00
35
440061021
ref: 35
TUBE,R.H,FORK OUTER
€ 205.00
36
220B0408
ref: 36
SCREW-PAN-CROS
€ 0.50
37
44045002
ref: 37
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
38
920011186
ref: 38
BOLT,FORK CYLINDER
€ 2.00
39
110091127
ref: 39
GASKET,FORK CYLID BOL (NAS)
€ 3.00
40
920721025
ref: 40
CLAMP,BOOT,R.H
€ 6.00
41
220B0425
ref: 41
SCREW-PAN-CROS
€ 0.50
42
920011058
ref: 42
BOLT,HEX HEAD,8X25
€ 2.00
