FRONT HUB/BRAKE (KX250)
KX250-A3 1976

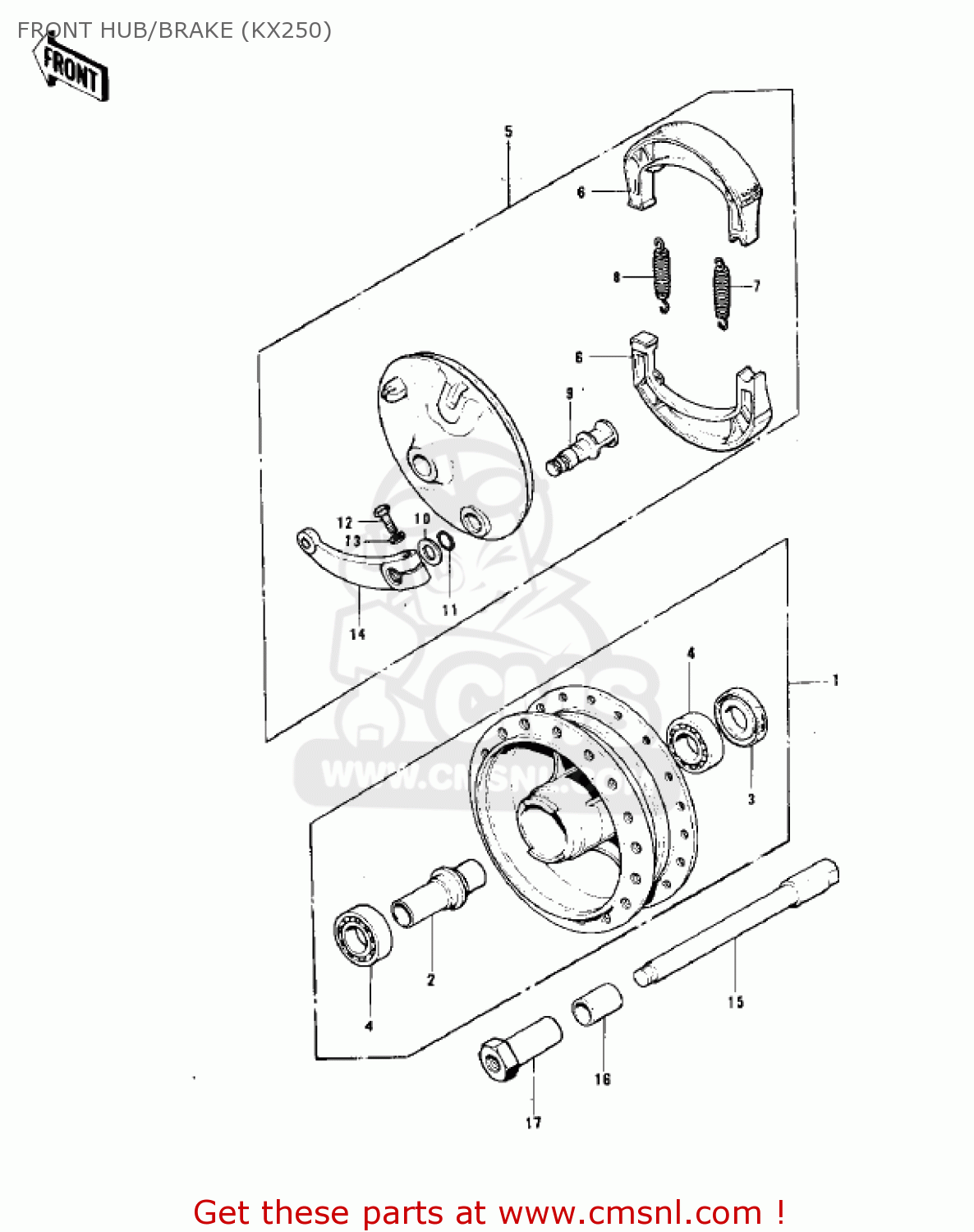

Front hub/brake (kx250) diagram KX250-A3 1976
FRONT HUB/BRAKE (KX250) KX250-A3 1976
×
prices are in EUR
ref
part #
description
quantity
1
41034036
ref: 1
KX250
DRUM ASSY,FRONT BRAKE
€ 129.50
2
41039023
ref: 2
COLLAR,FRONT HUB
€ 12.00
3
654A18376
ref: 3
OIL SEAL,TB18376
€ 4.00
4
92045029
ref: 4
BEARING,BALL,#6201
€ 4.50
5
41035061
ref: 5
MG
PANEL ASSY,FRNT,BRAKE
€ 145.00
5
4103506321
ref: 5
A1
PANEL ASSY,FR BRK,B
€ 145.00
6
42019010
ref: 6
SHOE,BRAKE (MCA)
€ 26.00
7
920811766
ref: 7
SPRING,BRAKE SHOE
€ 5.50
8
42020004
ref: 8
SPRING-BRAKE SHOE
€ 5.50
9
41050020
ref: 9
CAM SHAFT,FRONT BRAKE
€ 12.00
10
92022257
ref: 10
WASHER
€ 9.00
11
670B2012
ref: 11
O RING,12MM
€ 1.00
12
112B0622
ref: 12
BOLT, 6X22
€ 2.50
13
410B0600
ref: 13
WASHER-PLAIN-SMALL,6M
€ 0.50
14
41053021
ref: 14
LEVER,FRONT BRAKE CAM
€ 40.50
15
41068044
ref: 15
AXLE,FRONT
€ 26.00
16
41069023
ref: 16
COLLAR,FRONT AXLE
€ 4.50
17
41072008
ref: 17
1 PCS NOT
NUT,FRONT AXLE
€ 3.50
