CYLINDER HEAD/CYLINDER (74-76)
KX250-A3 1976

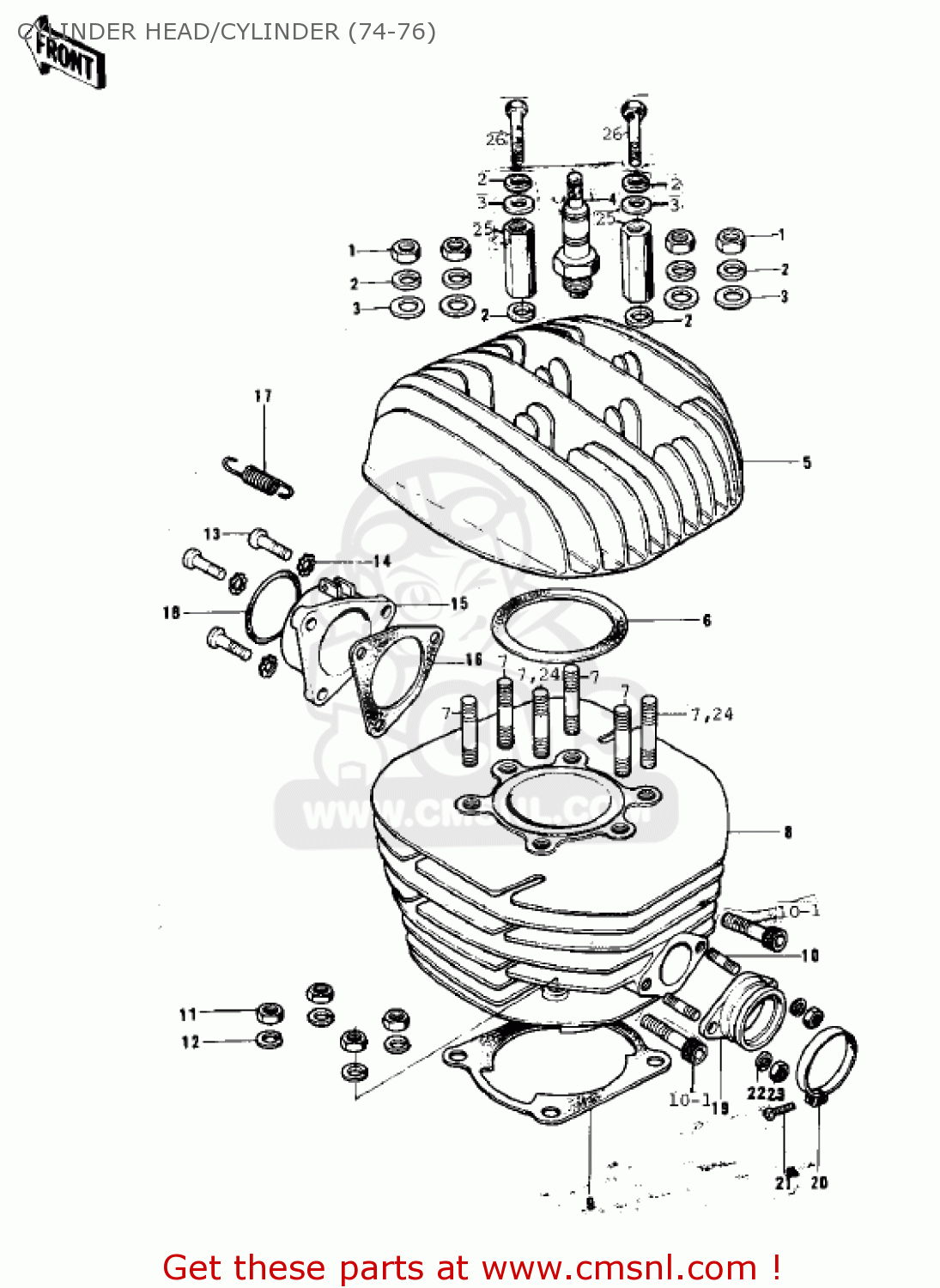

Cylinder head/cylinder (74-76) diagram KX250-A3 1976
CYLINDER HEAD/CYLINDER (74-76) KX250-A3 1976
×
prices are in EUR
ref
part #
description
quantity
1
311B0800
ref: 1
(4 REQ KX250A)
NUT,8MM
€ 0.50
1
311B0800
ref: 1
KX250-A3
NUT,8MM
€ 0.50
2
461F0800
ref: 2
(8 REQ KX250A)
WASHER-SPRING,8MM
€ 0.50
2
461F0800
ref: 2
KX250-A3
WASHER-SPRING,8MM
€ 0.50
3
410B0800
ref: 3
(4 REQ KX250-A3)
WASHER-PLAIN-SMALL,8M
€ 0.50
3
411B0800
ref: 3
KX250-A3
WASHER-PLAIN,8MM
€ 0.50
4
B9EV
ref: 4
SPARK PLUG,B9EV
€ 5.50
5
1100109521
ref: 5
CYLINDER HEAD,F.BLACK
€ 134.50
6
11004065
ref: 6
GASKET,CYLINDER HEAD (NAS)
€ 10.50
7
172G0840
ref: 7
(4 REQ KX250-A3)
STUD,8X40
€ 1.50
8
1100512121
ref: 8
CYLINDER,F.BLACK
€ 393.00
8
1100514921
ref: 8
KX250A/-A3
ELEX CYLINDER,F.BLACK
€ 331.00
9
11009038
ref: 9
GASKET,CYLINDER BASE (MCA)
€ 7.50
10
172G0812
ref: 10
STUD,8X12
€ 2.00
10-1
120P0816
ref: 10-1
KX250-A3
BOLT-SOCKET
€ 2.50
11
317B1000
ref: 11
NUT,10MM
€ 0.50
12
461F1000
ref: 12
WASHER-SPRING,10MM
€ 0.50
13
220B0625
ref: 13
SCREW-PAN HEAD,6X25
€ 1.50
14
464H0600
ref: 14
WASHER-LOCK,6MM
€ 0.50
15
18062008
ref: 15
HOLDER,EXHAUST PIPE
€ 29.50
16
18050006
ref: 16
GASKET,EXHAUST HOLDER (MCA)
€ 20.00
16
18050010
ref: 16
KX250-A3
GASKET,EXHAUST PIPE (NAS)
€ 20.00
17
18071003
ref: 17
SPRING,MUFFLER CONNEC
€ 7.50
18
?
ref: 18
USE 56019-102
?
19
16065021
ref: 19
HOLDER-CARBURETOR
€ 27.00
20
92037116
ref: 20
CLAMP
€ 10.50
21
220B0535
ref: 21
SCREW-PAN-CROS
€ 2.00
22
461F0800
ref: 22
WASHER-SPRING,8MM
€ 0.50
23
318B0800
ref: 23
KX250/A
NUT,8MM
€ 0.50
24
92004060
ref: 24
KX250A/-A3
STUD,8MM
€ 3.50
25
92016058
ref: 25
KX250A/-A3
NUT,CYLINDER HEAD
€ 9.50
26
115G0820
ref: 26
KX250 A/-A3
BOLT,8X20
€ 2.00
