AIR CLEANER (78-79)
KX250-A3 1976

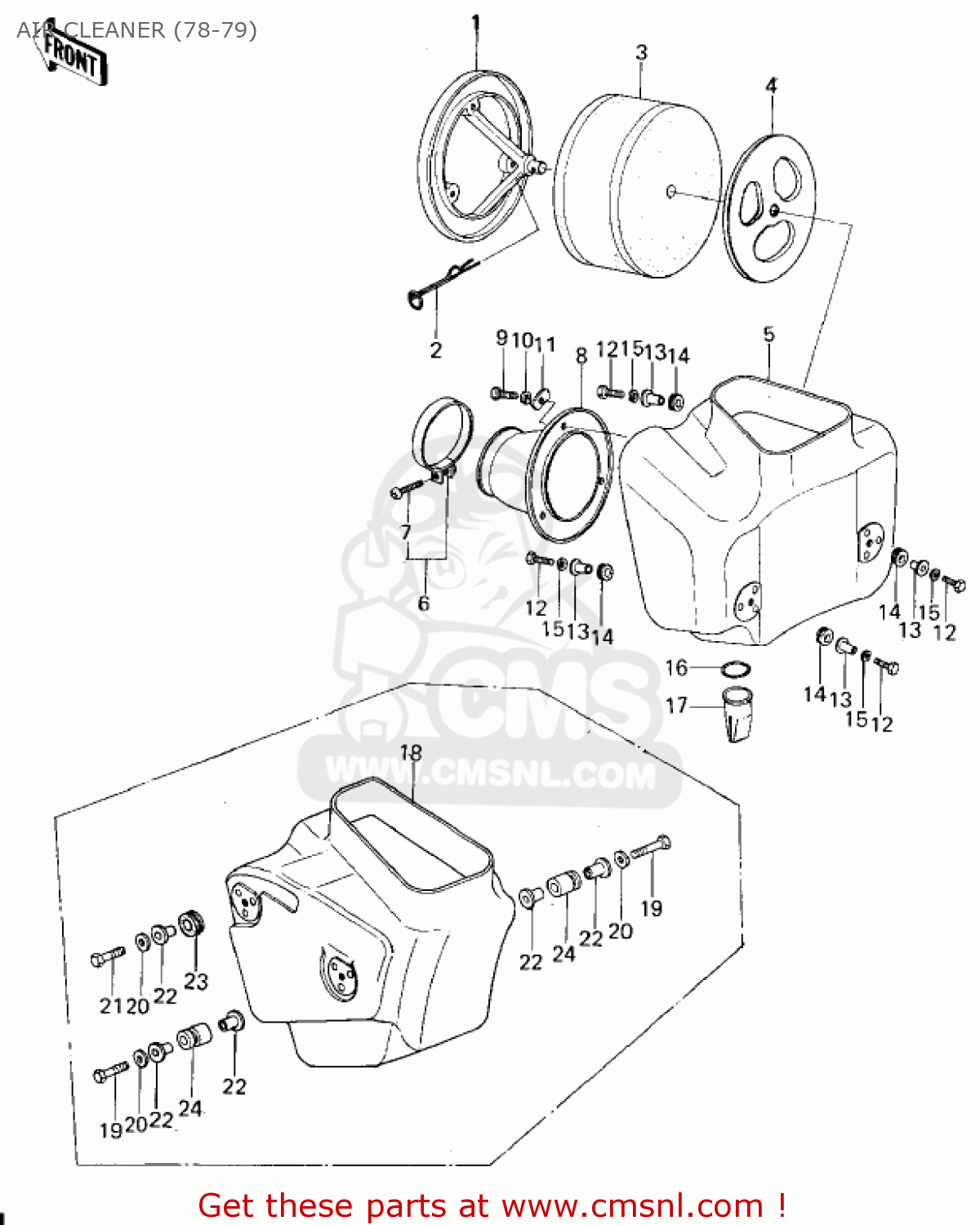

Air cleaner (78-79) diagram KX250-A3 1976
AIR CLEANER (78-79) KX250-A3 1976
×
prices are in EUR
ref
part #
description
quantity
1
110111007
ref: 1
CASE,AIR CLEANER
€ 23.00
2
920411001
ref: 2
COTTER,AIR CLEANER
€ 6.00
3
110131005
ref: 3
ELEMENT,AIR CLEANER
€ 19.00
4
110121013
ref: 4
CAP,AIR CLEANER
€ 15.00
5
110111008
ref: 5
BODY,AIR CLEANER
€ 83.00
6
92037068
ref: 6
CLAMP
€ 7.50
7
220B0635
ref: 7
SCREW-PAN HEAD,6X35
€ 1.00
8
140731005
ref: 8
BUCT,AIR CLEANER
€ 19.00
9
112G0618
ref: 9
BOLT-UPSET
€ 0.50
10
461F0600
ref: 10
WASHER-SPRING,6MM
€ 0.50
11
920221018
ref: 11
WASHER,PLAIN
€ 2.00
12
112G0620
ref: 12
BOLT 6X20
€ 1.00
13
92027194
ref: 13
COLLAR
€ 3.50
14
92075076
ref: 14
DAMPER
€ 3.00
15
461F0600
ref: 15
WASHER-SPRING,6MM
€ 0.50
16
670B2020
ref: 16
O RING,20MM
€ 1.00
17
490061012
ref: 17
BOOT
€ 5.50
18
110111030
ref: 18
BODY,AIR CLEANER
€ 83.00
19
110R0635
ref: 19
BOLT 6X35
€ 3.50
20
461F0600
ref: 20
WASHER-SPRING,6MM
€ 0.50
21
112G0620
ref: 21
BOLT 6X20
€ 1.00
22
92027194
ref: 22
COLLAR
€ 3.50
23
92075076
ref: 23
DAMPER
€ 3.00
24
920751154
ref: 24
DAMPER RUBBER
€ 5.50
