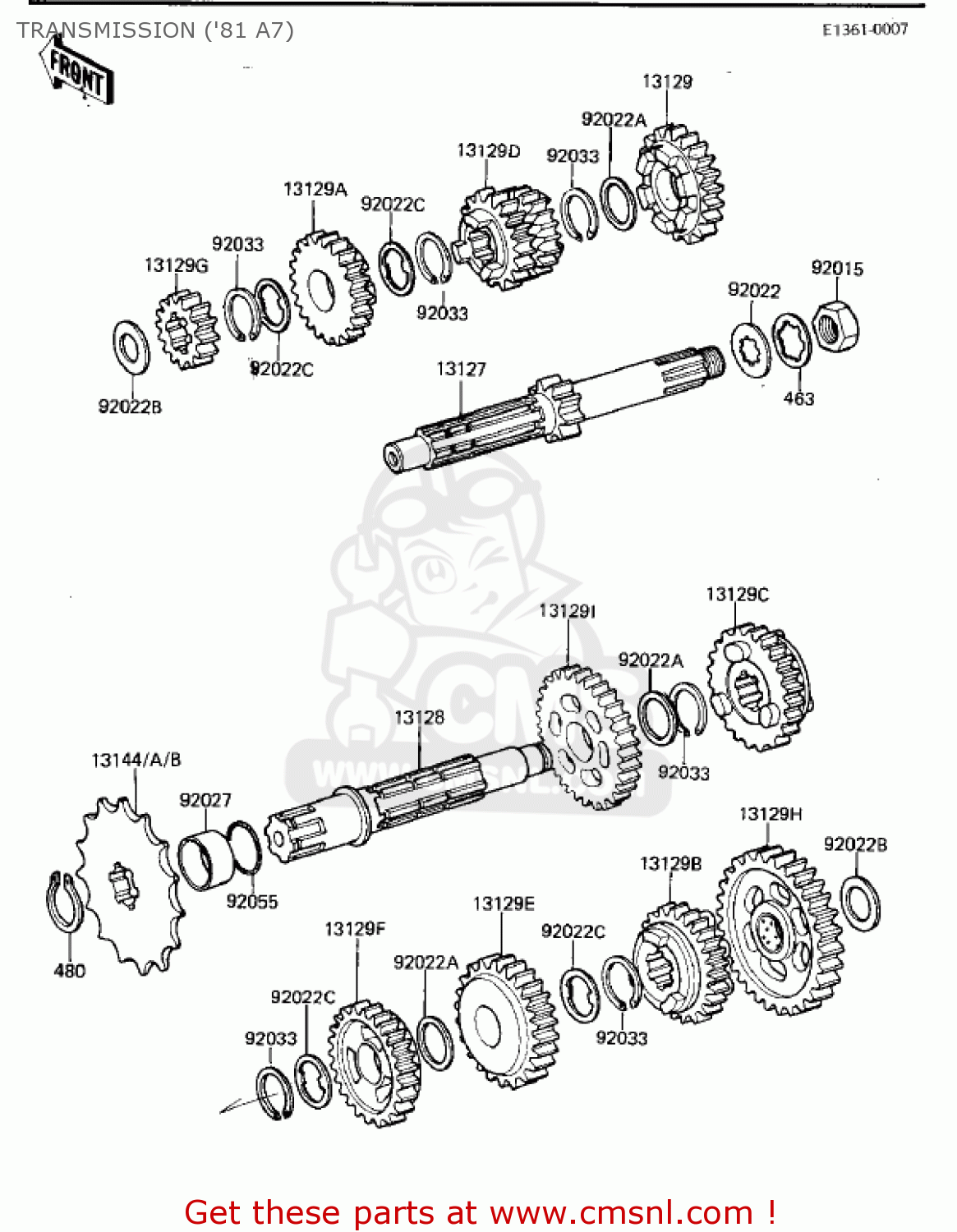

TRANSMISSION ('81 A7)

ref

part #

description

quantity

13127

131271030
ref: 13127

SHAFT,DRIVE

€ 112.50

13128

131281039
ref: 13128

SHAFT OUTPUT

€ 112.50

13129

131291065
ref: 13129

5TH GEAR,DRIVE,21T

€ 39.00

13129A

131291066
ref: 13129A

TOP GEAR,DRIVE,22T

€ 52.00

13129B

131291071
ref: 13129B

5TH GEAR,OUTPUT,21T

€ 38.50

13129C

131291072
ref: 13129C

TOP GEAR OUTPUT,20T

€ 64.50

13129D

131291120
ref: 13129D

3RD & 4TH GEAR,DRIVE

€ 73.50

13129E

131291123
ref: 13129E

3RD GEAR,OUTPUT SHAFT

€ 66.50

13129F

131291124
ref: 13129F

4TH GEAR,OUTPUT SHAFT

€ 55.50

13129G

131291299
ref: 13129G

GEAR,INPUT 2ND,18T

€ 26.50

13129H

131291210
ref: 13129H

LOW GEAR,OUTPUT,30T

€ 47.00

13129I

131291211
ref: 13129I

2ND GEAR,OUTPUT,30T

€ 65.50

13144

131441036
ref: 13144
(OPTION)

SPROCKET-OUTPUT,11T

€ 22.00

13144A

131441049
ref: 13144A

SPROCKET-OUTPUT,12T

€ 17.00

13144B

131441050
ref: 13144B
(OPTION)

SPROCKET-OUTPUT,13T

€ 18.00

92015

92016036
ref: 92015

NUT,16MM

€ 2.50

92022

920221124
ref: 92022

WASHER,TOOTHED,16.5X3

€ 2.00

92022A

92022252
ref: 92022A

WASHER

€ 4.00

92022B

92022279
ref: 92022B

WASHER,15.3X25X1

€ 7.00

92022C

92024059
ref: 92022C

WASHER,LOCK

€ 3.00

92027

920271244
ref: 92027

COLLAR,OUTPUT SPROCKE

€ 11.50

92033

92033029
ref: 92033

CIRCLIP,18MM

€ 6.50

92055

92055022
ref: 92055

'O' RING

€ 4.00

463

463H1600
ref: 463

WASHER-TOOTHED,16MM

€ 3.50

480

480J2000
ref: 480

CIRCLIP-TYPE-C,20MM

€ 1.00

all assemblies
