FUEL TANK ('80 A6)

KX125-A6 KX125 1980 UNITED KINGDOM USA CANADA AL

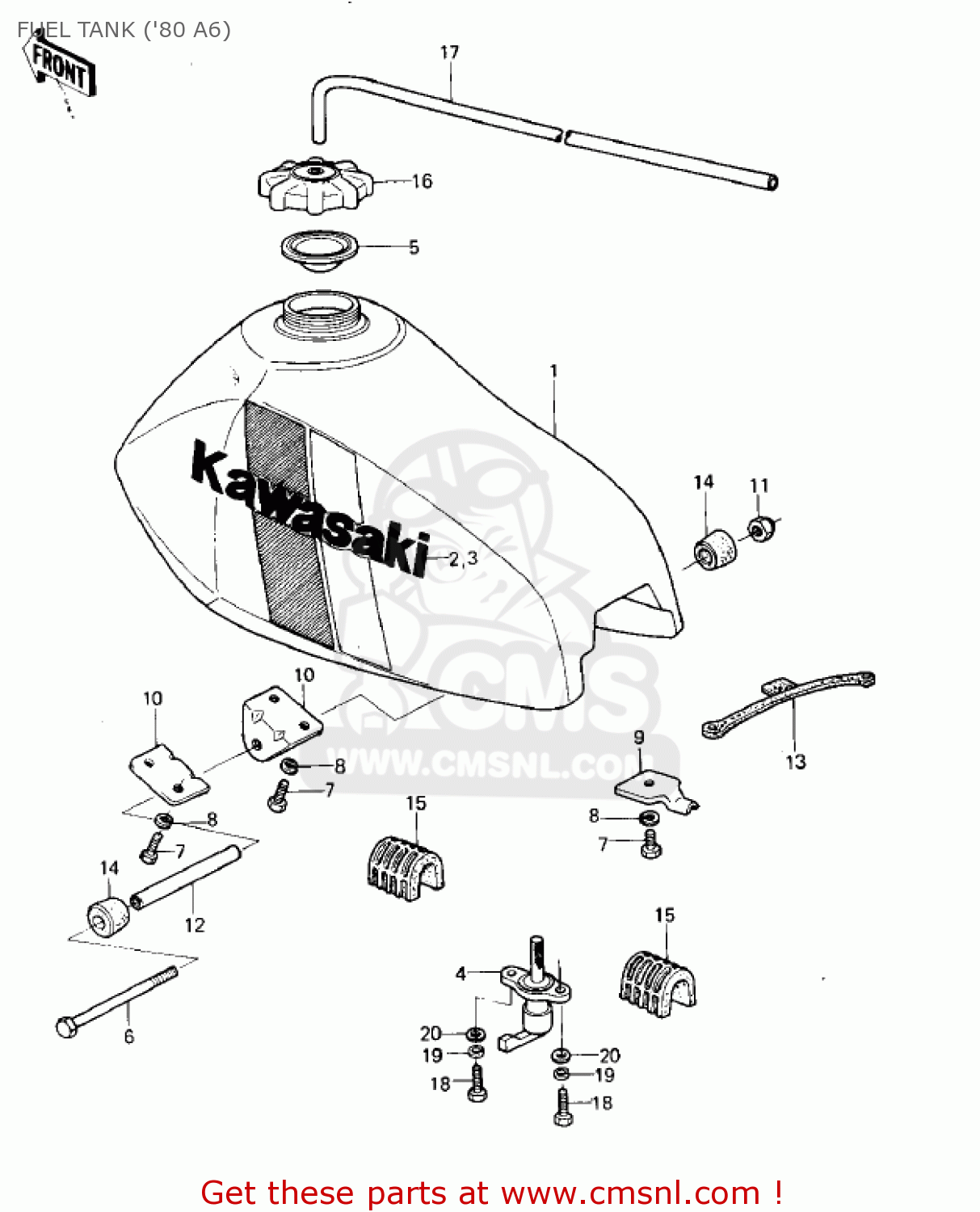

Fuel tank ('80 a6) diagram KX125-A6 KX125 1980 UNITED KINGDOM USA CANADA AL

FUEL TANK ('80 A6) KX125-A6 KX125 1980 UNITED KINGDOM USA CANADA AL

FUEL TANK ('80 A6) KX125-A6 KX125 1980 UNITED KINGDOM USA CANADA AL

prices are in EUR

ref

part #

description

quantity

1

5100151086W
ref: 1

TANK-COMP-FUEL,L.GREN

€ 237.00

2

560271853
ref: 2

EMBLEM,FUEL TANK L.H

€ 13.00

3

560271854
ref: 3

EMBLEM,FUEL TANK,R.H

€ 32.50

4

510231115
ref: 4

TAP-ASSY,FUEL

€ 37.00

5

110091452
ref: 5

GASKET,FUEL TANK CAP (NAS)

€ 15.00

6

112G06105
ref: 6

BOLT-UPSET,6X105

€ 1.50

7

112G0612
ref: 7

BOLT-UPSET

€ 2.50

8

461F0600
ref: 8

WASHER-SPRING,6MM

€ 0.50

9

320521009
ref: 9

BRACKET,FUEL TANK

€ 4.50

10

320521036
ref: 10

BRACKET,FUEL TANK FIT

€ 6.00

11

92019008
ref: 11

NUT-LOCK,6MM

€ 3.00

12

920271228
ref: 12

COLLAR,FUEL TANK FITT

€ 3.00

13

92072042
ref: 13

BAND,FUEL TANK

€ 9.00

14

920751220
ref: 14

DAMPER,FUEL TANK FITT

€ 4.00

15

920751221
ref: 15

DAMPER,FUEL TANK

€ 8.00

16

510491006
ref: 16

CAP-TANK,FUEL

€ 21.50

17

920591109
ref: 17

TUBE,5X5.6X280

€ 3.00

18

112G0618
ref: 18

BOLT-UPSET

€ 0.50

19

461F0600
ref: 19

WASHER-SPRING,6MM

€ 0.50

20

411B0600
ref: 20

WASHER-PLAIN,6MM

€ 0.50
