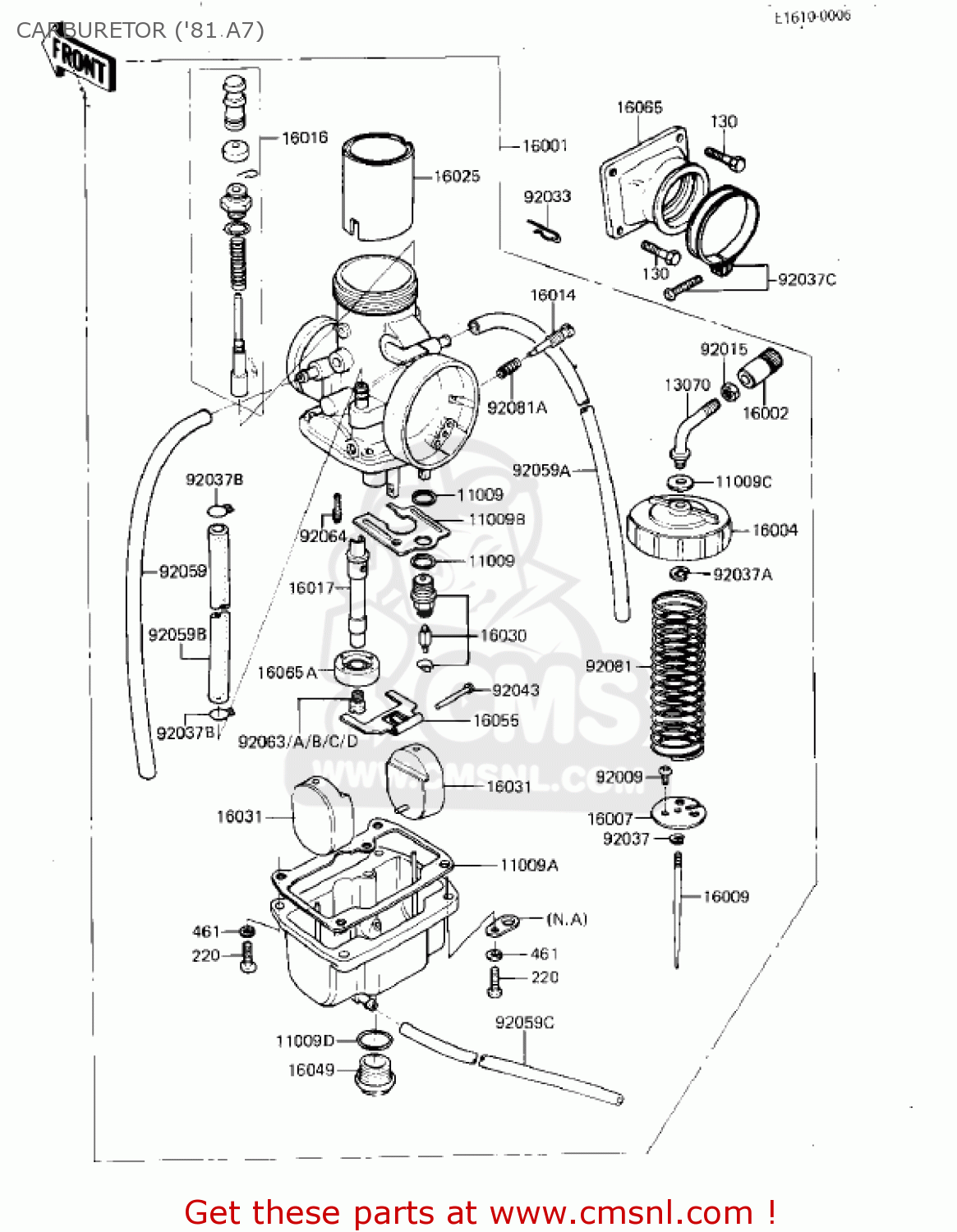

CARBURETOR ('81 A7)

ref

part #

description

quantity

11009

110091076
ref: 11009

GASKET,FLOAT VALVE (NAS)

€ 2.00

11009A

110091079
ref: 11009A

GASKET,FLOAT CHAMBER (NAS)

€ 8.00

11009B

110091080
ref: 11009B

PLATE,FLOAT CHAMBER

€ 8.00

11009C

110091191
ref: 11009C

GASKET,CABLE GUIDE (NAS)

€ 4.50

11009D

16038009
ref: 11009D

GASKET,MAIN JET COVER

€ 5.50

13070

130701010
ref: 13070

GUIDE,CABLE

€ 23.50

16001

160011367
ref: 16001

CARBURETOR

€ 191.00

16002

160021006
ref: 16002

ADJUSTER-CABLE

€ 6.50

16004

160041003
ref: 16004

TOP,MIXING CHAMBER

€ 30.50

16007

160071007
ref: 16007

SEAT-SPRING,THROTTLE

€ 6.50

16009

160091067
ref: 16009

NEEDLE-JET,6F21

€ 26.50

16014

16014006
ref: 16014

SCREW-PILOT AIR

€ 9.00

16016

160161013
ref: 16016

PLUNGER,STARTER

€ 24.50

16017

160171081
ref: 16017

JET-NEEDLE,R-2

€ 14.00

16025

160251055
ref: 16025

VALVE-THROTTLE,CA3.5

€ 53.50

16030

160301015
ref: 16030

VALVE-FLOAT,#3.0

€ 31.50

16031

16031025
ref: 16031

FLOAT

€ 44.50

16049

16049006
ref: 16049

COVER-MAIN JET

€ 10.50

16055

16055004
ref: 16055

ARM,FLOAT

€ 11.50

16065

160651007
ref: 16065

HOLDER-CARBURETOR

€ 65.00

16065A

160651040
ref: 16065A

HOLDER-CARBURETOR

€ 40.50

92009

920091037
ref: 92009

SCREW,4X5

€ 2.50

92015

16003004
ref: 92015

NUT-CABLE ADJUST LOCK

€ 4.50

92033

92036018
ref: 92033

CIRCLIP

€ 2.50

92037

16008010
ref: 92037

CLAMP,E-TYPE

€ 5.00

92037A

16008011
ref: 92037A

CLAMP,CABLE GUIDE

€ 4.50

92037B

92037056
ref: 92037B

CLAMP,FUEL TUBE

€ 3.00

92037C

92037061
ref: 92037C

CLAMP

€ 10.50

92043

16032008
ref: 92043

PIN,FLOAT

€ 4.00

92059

920591017
ref: 92059

HOSE,OVERFLOW

€ 18.00

92059A

920591025
ref: 92059A

HOSE,OVERFLOW

€ 18.00

92059B

920591084
ref: 92059B

HOSE,6.5X11.5X240

€ 14.50

92059C

920591178
ref: 92059C

HOSE,OVERFLOW

€ 18.00

92063

920631018
ref: 92063
(OFF ROAD USE ONLY)

JET-MAIN,#160R

€ 8.50

92063A

920631019
ref: 92063A
(OFF ROAD USE ONLY)

JET-MAIN,#162.5R

€ 11.50

92063B

920631020
ref: 92063B

MAIN JET,#165R

€ 7.50

92063C

920631021
ref: 92063C
(OFF ROAD USE ONLY)

MAIN JET,#167.5R

€ 7.00

92063D

920631022
ref: 92063D
(OFF ROAD USE ONLY)

JET-MAIN,#170R

€ 11.50

92064

92064022
ref: 92064

PILOT JET #30 ISO

€ 11.50

92081

16006016
ref: 92081

SPRING-THROTTLE VALVE

€ 12.50

92081A

16022007
ref: 92081A

SPRING-THR STOP SCREW

€ 5.50

130

130G0620
ref: 130

BOLT,FLANGED,6X20

€ 2.50

220

214B0516A
ref: 220

UNAVAILABLE IN PRICE BOOK

€ 0.50

461

461F0500
ref: 461

WASHER-SPRING,5MM

€ 0.50

all assemblies
