REAR SUSPENSION/SHOCK ABSORBER (

KX125-A6 KX125 1980 UNITED KINGDOM USA CANADA AL

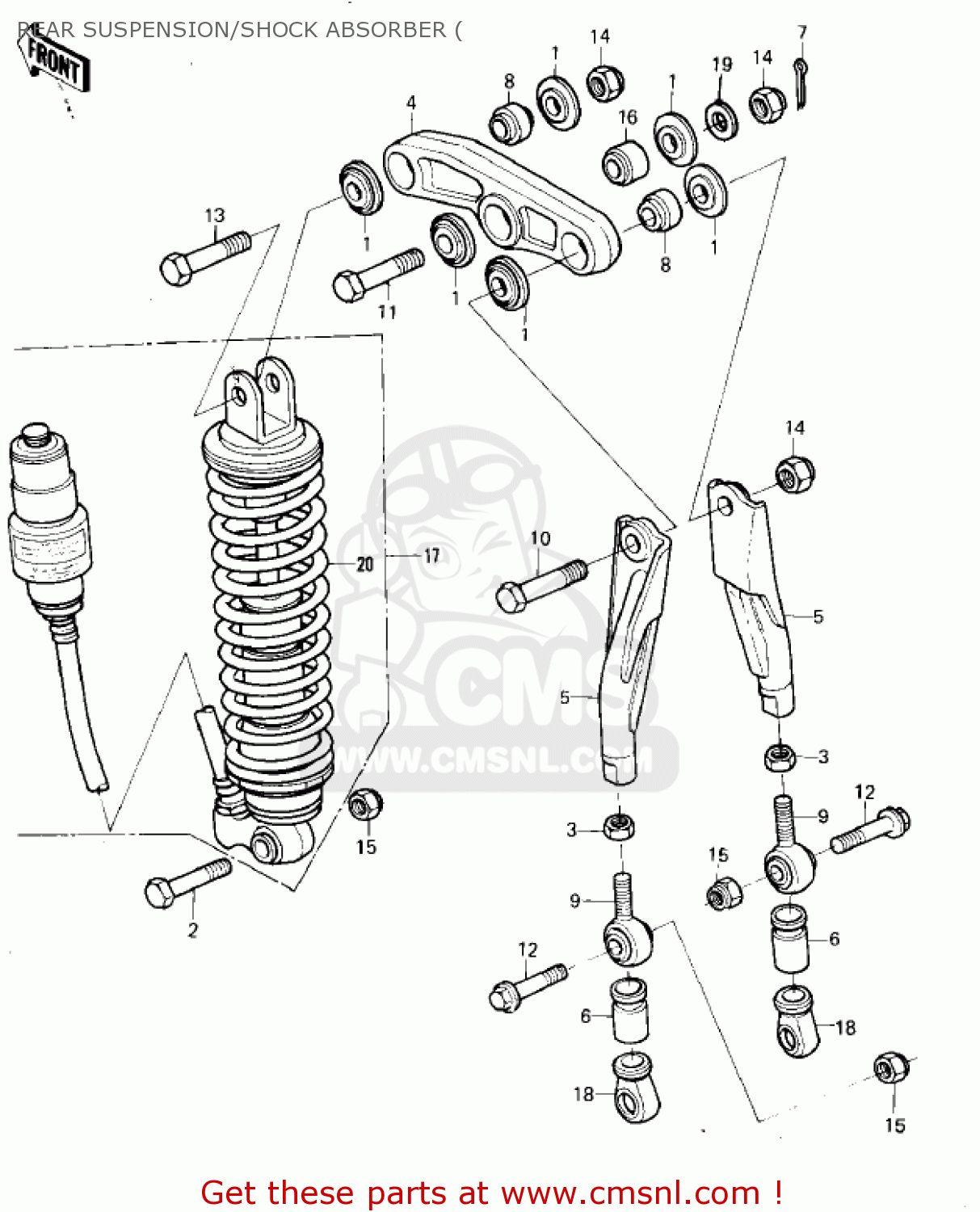

Rear suspension/shock absorber ( diagram KX125-A6 KX125 1980 UNITED KINGDOM USA CANADA AL

REAR SUSPENSION/SHOCK ABSORBER ( KX125-A6 KX125 1980 UNITED KINGDOM USA CANADA AL

REAR SUSPENSION/SHOCK ABSORBER ( KX125-A6 KX125 1980 UNITED KINGDOM USA CANADA AL

prices are in EUR

ref

part #

description

quantity

1

110121117
ref: 1

CAP,SUSPENSION ARM

€ 10.00

2

113P1255A
ref: 2

BOLT,HEX HEAD 12X55

€ 6.00

3

315B1200
ref: 3

NUT,12MM

€ 0.50

4

390071002
ref: 4

ARM,SUSPENSION

€ 77.50

5

461025001
ref: 5

ROD-ASSY,UNITRAK

€ 74.50

6

490061045
ref: 6

BOOT,BALL JOINT

€ 9.00

7

550D2525
ref: 7

PIN-COTTER,2.5X25

€ 1.00

8

592661001
ref: 8

JOINT-BALL,MBWTD14-20

€ 113.50

9

592661002
ref: 9

JOINT-BALL,HR12E-202

€ 91.50

10

920011295
ref: 10

BOLT,HEX HEAD,14X54

€ 6.00

11

920011335
ref: 11

BOLT,HEX HEAD,14X59

€ 14.00

12

920011297
ref: 12

BOLT,HEX HEAD,12X48

€ 7.50

13

920011317
ref: 13

BOLT,HEX HEAD,14X50

€ 8.00

14

92019011
ref: 14

NUT,LOCK,14MM

€ 6.00

15

92019009
ref: 15

NUT,LOCK,12MM

€ 5.00

16

920281087
ref: 16

BUSHING,14X27.5X17

€ 108.00

17

450141087
ref: 17

SHOCKABSORBER

€ 447.00

18

490061046
ref: 18

BOOT,BALL JOINT

€ 9.00

19

410B1400
ref: 19

410B1400

20

920811244
ref: 20
6.5 KG/MM

SPRING,RR SHCK ABSBR

€ 117.00

20

920811282
ref: 20
6.0 KG/MM

SPRING,RR SHOCK,SOFTR

€ 193.50

20

920811283
ref: 20
7.0 KG/MM

SPRING,RR SHOCK,HARDR

€ 145.00
