CLUTCH ('81 A7)

KX125-A6 KX125 1980 UNITED KINGDOM USA CANADA AL

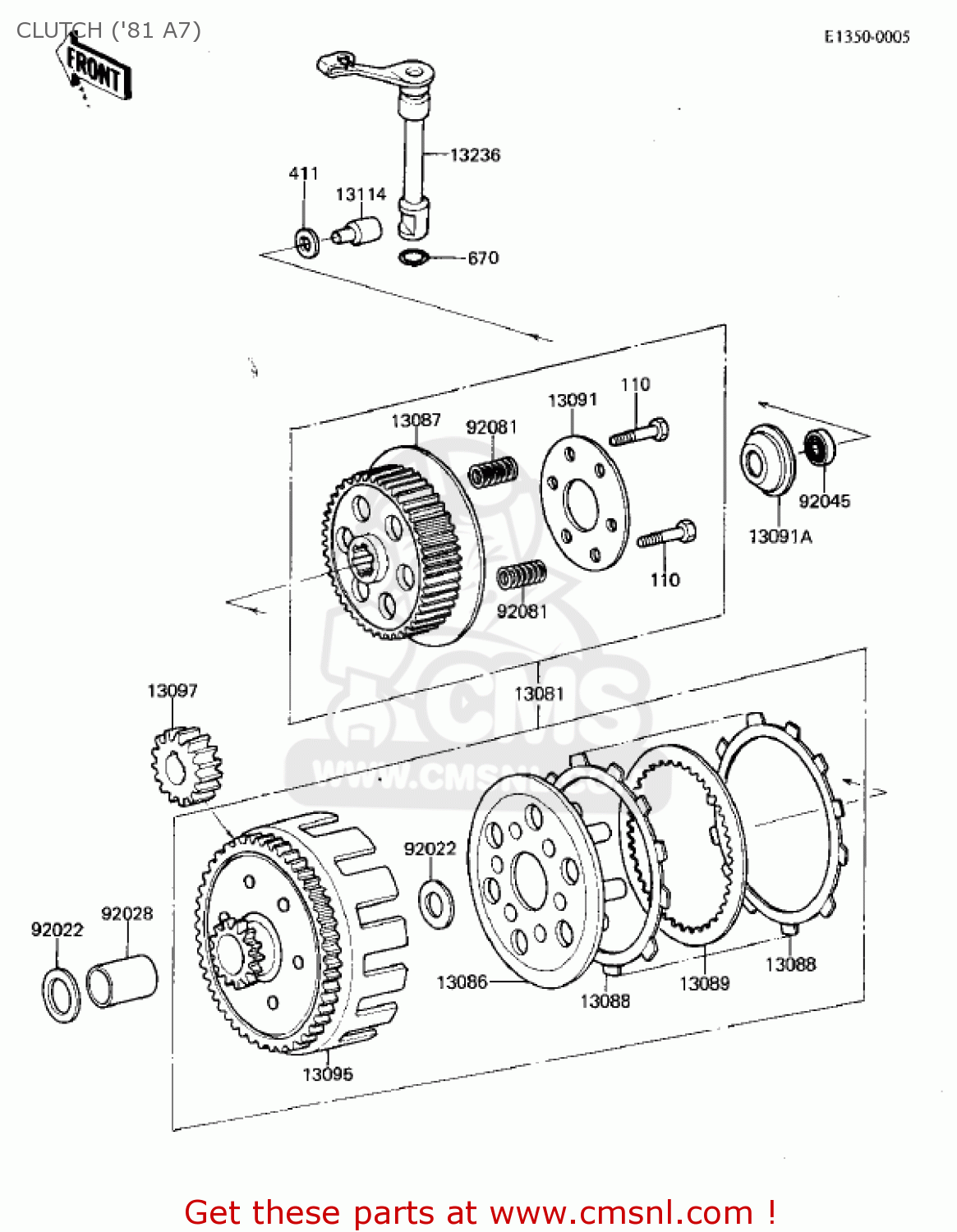

Clutch ('81 a7) diagram KX125-A6 KX125 1980 UNITED KINGDOM USA CANADA AL

CLUTCH ('81 A7) KX125-A6 KX125 1980 UNITED KINGDOM USA CANADA AL

CLUTCH ('81 A7) KX125-A6 KX125 1980 UNITED KINGDOM USA CANADA AL

prices are in EUR

ref

part #

description

quantity

13081

130811060
ref: 13081

CLUTCH-ASSY

€ 371.50

13086

130861001
ref: 13086

WHEEL,CLUTCH

€ 25.00

13087

130871002
ref: 13087

HUB,CLUTCH

€ 38.00

13088

130881015
ref: 13088

PLATE-FRICTION (NAS)

€ 11.50

13089

130891002
ref: 13089

PLATE,CLUTCH STEEL (NAS)

€ 6.00

13091

130911011
ref: 13091

HOLDER,CLUTCH

€ 14.50

13091A

130911071
ref: 13091A

HOLDER,CLUTCH PUSHER

€ 15.00

13095

130951028
ref: 13095

HOUSING,CLUTCH

€ 237.50

13097

130971032
ref: 13097

GEAR,PRIMARY,20T

€ 41.50

13114

131141004
ref: 13114

PUSHER-CLUTCH

€ 16.50

13236

132361022
ref: 13236

LEVER ASSY,CLUTCH REL

€ 22.50

92022

92022270
ref: 92022

WASHER,PLAIN

€ 7.00

92028

920281018
ref: 92028

BUSHING,CLUTCH

€ 10.50

92045

920451211
ref: 92045

BEARING-BALL

€ 11.00

92081

92081123
ref: 92081

SPRING,CLUTCH

€ 4.50

110

110G0520
ref: 110

BOLT

€ 2.50

411

411B0600
ref: 411

WASHER-PLAIN,6MM

€ 0.50

670

670B2010
ref: 670

O RING,10MM

€ 1.00
