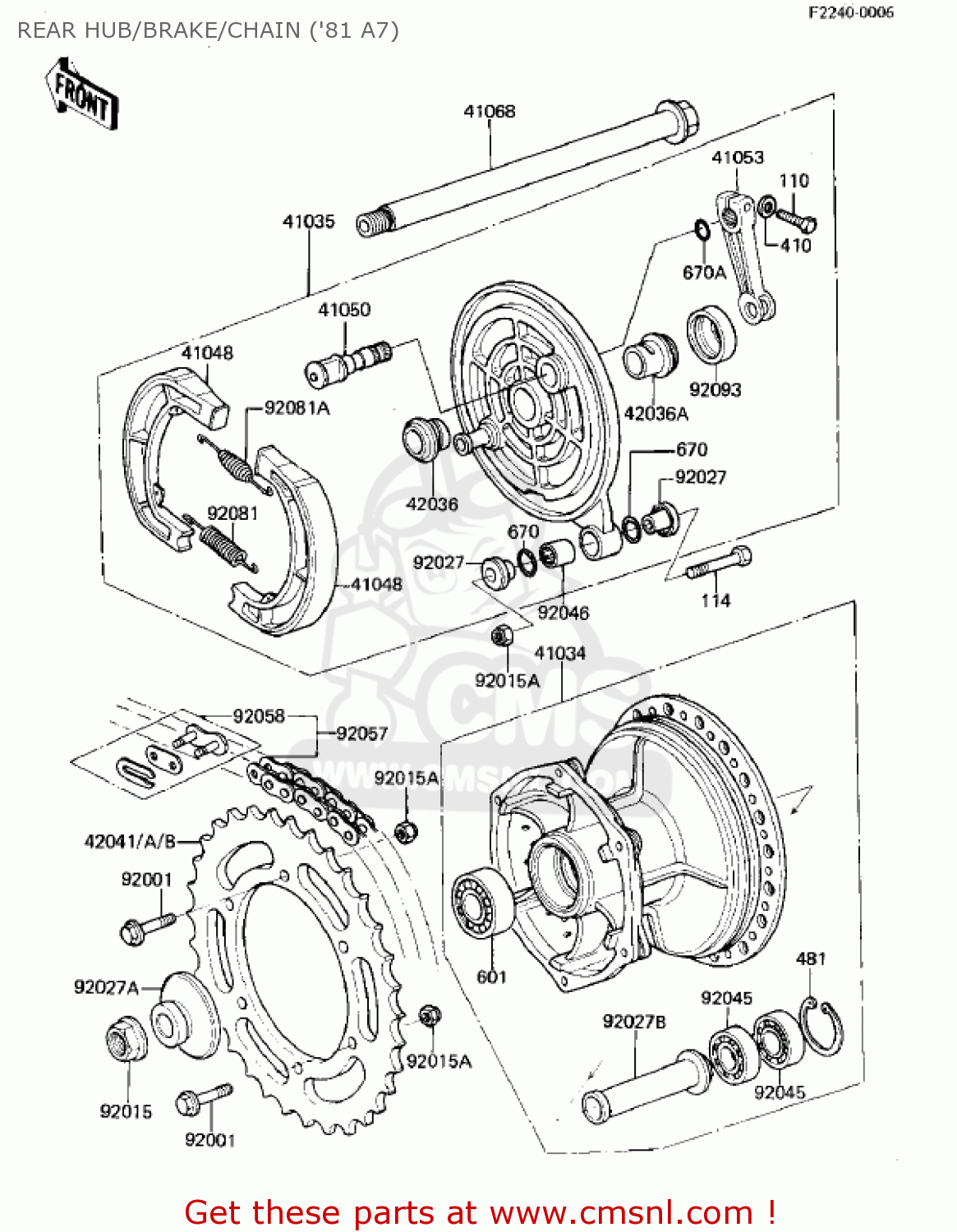

REAR HUB/BRAKE/CHAIN ('81 A7)

ref

part #

description

quantity

41034

410341017
ref: 41034

DRUM ASSY,REAR

€ 343.50

41035

410351025
ref: 41035

PANEL ASSY,REAR

€ 318.50

41048

42019010
ref: 41048

SHOE,BRAKE (MCA)

€ 26.00

41050

410501007
ref: 41050

CAM SHAFT

€ 19.50

41053

410531008
ref: 41053

LEVER BRAKE,CAM REAR

€ 58.50

41068

410681033
ref: 41068

AXLE,REAR

€ 37.00

42036

420361009
ref: 42036

SLEEVE,RR BRAKE PANEL

€ 39.50

42036A

420361035
ref: 42036A

SLEEVE,RR PANEL,RH

€ 48.50

42041

420411078
ref: 42041

SPROCKET-HUB,53T

€ 79.00

42041A

420411079
ref: 42041A
(RACING USE ONLY)

SPROCKET-HUB,51T

€ 64.50

42041B

420411080
ref: 42041B
(RACING USE ONLY)

SPROCKET-HUB,55T

€ 54.00

92001

920011040
ref: 92001

BOLT,HEX HEAD,8X32

€ 5.50

92015

920151015
ref: 92015

NUT,16MM

€ 13.50

92015A

920151134
ref: 92015A

NUT,8MM

€ 3.50

92027

920271040
ref: 92027

COLLAR,L=11.5

€ 12.50

92027A

920271206
ref: 92027A

COLLAR,REAR AXLE

€ 31.00

92027B

920271207
ref: 92027B

COLLAR,REAR DRUM

€ 36.00

92045

601B6003U
ref: 92045

BEARING-BALL,#6003UC3

€ 21.50

92046

920461009
ref: 92046

BEARING-NEEDLE,HK1216

€ 14.50

92057

920571051
ref: 92057

CHAIN ASSY,DRIVE,118L

€ 38.50

92058

920581051
ref: 92058

JOINT-CHAIN

€ 6.00

92081

920811766
ref: 92081

SPRING,BRAKE SHOE

€ 5.50

92081A

920811550
ref: 92081A

SPRING,BRAKE SHOE

€ 6.00

92093

920931004
ref: 92093

OIL SEAL

€ 3.50

110

112G0622
ref: 110

BOLT-UPSET

€ 2.50

114

115G0835
ref: 114

BOLT HEX,HEAD,8X35

€ 3.00

410

410B0600
ref: 410

WASHER-PLAIN-SMALL,6M

€ 0.50

481

481J3500
ref: 481

CIRCLIP-TYPE-C,35MM

€ 1.00

601

601B6004UU
ref: 601

BEARING-BALL,#6004UUC

€ 27.00

670

670B2011
ref: 670

O RING,11MM

€ 1.00

670A

670B2012
ref: 670A

O RING,12MM

€ 1.00

all assemblies
