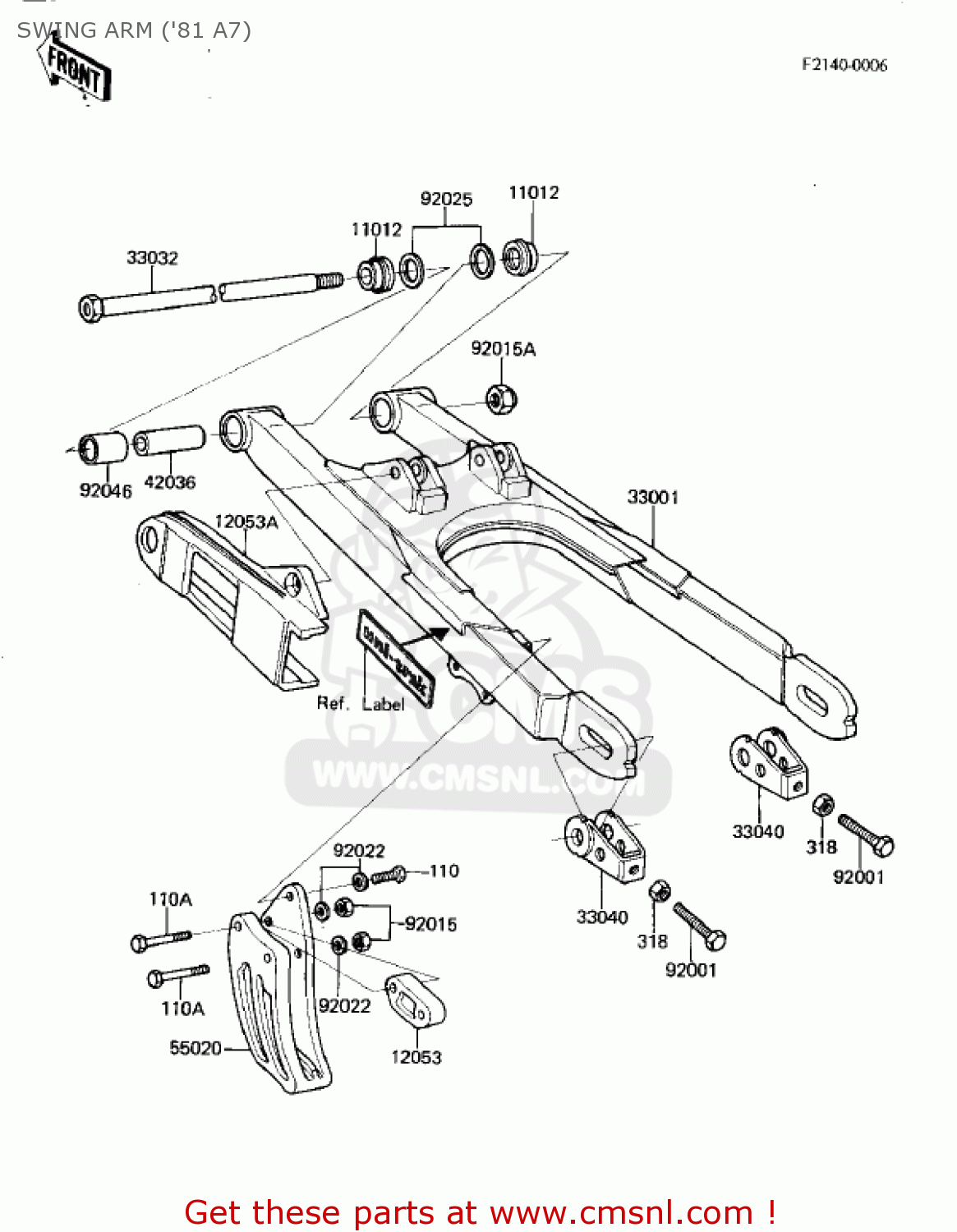

SWING ARM ('81 A7)

KX125-A6 KX125 1980 UNITED KINGDOM USA CANADA AL

Swing arm ('81 a7) diagram KX125-A6 KX125 1980 UNITED KINGDOM USA CANADA AL

SWING ARM ('81 A7) KX125-A6 KX125 1980 UNITED KINGDOM USA CANADA AL

SWING ARM ('81 A7) KX125-A6 KX125 1980 UNITED KINGDOM USA CANADA AL

prices are in EUR

ref

part #

description

quantity

11012

110121099
ref: 11012

CAP,SWING ARM

€ 14.50

12053

120531039
ref: 12053

GUIDE-CHAIN,RR,UPP

€ 10.50

12053A

120531046
ref: 12053A

GUIDE-CHAIN,FR

€ 57.50

33001

330011047
ref: 33001

ARM,SWING

€ 393.00

33032

330321020
ref: 33032

SHAFT-SWING ARM

€ 64.50

33040

330401012
ref: 33040

ADJUSTER-CHAIN

€ 25.00

42036

420361031
ref: 42036

SLEEVE,SWING ARM

€ 33.50

55020

550201038
ref: 55020

GUARD,CHAIN

€ 24.50

92001

920011027
ref: 92001

BOLT,CHAIN ADJUSTER

€ 9.50

92015

92019008
ref: 92015

NUT-LOCK,6MM

€ 3.00

92015A

92019011
ref: 92015A

NUT,LOCK,14MM

€ 6.00

92022

92022125
ref: 92022

WASHER,6.5X20X1.6

€ 1.00

92025

920251116
ref: 92025

SHIM,20X26.6X0.5

€ 2.50

92046

920461031
ref: 92046

BEARING-NEEDLE,HMK203

€ 20.50

110

112G0620
ref: 110

BOLT 6X20

€ 1.00

110A

112G0660
ref: 110A

BOLT-UPSET

€ 3.00

318

318G0800
ref: 318

NUT-HEX-SMALL,8MM

€ 1.00
