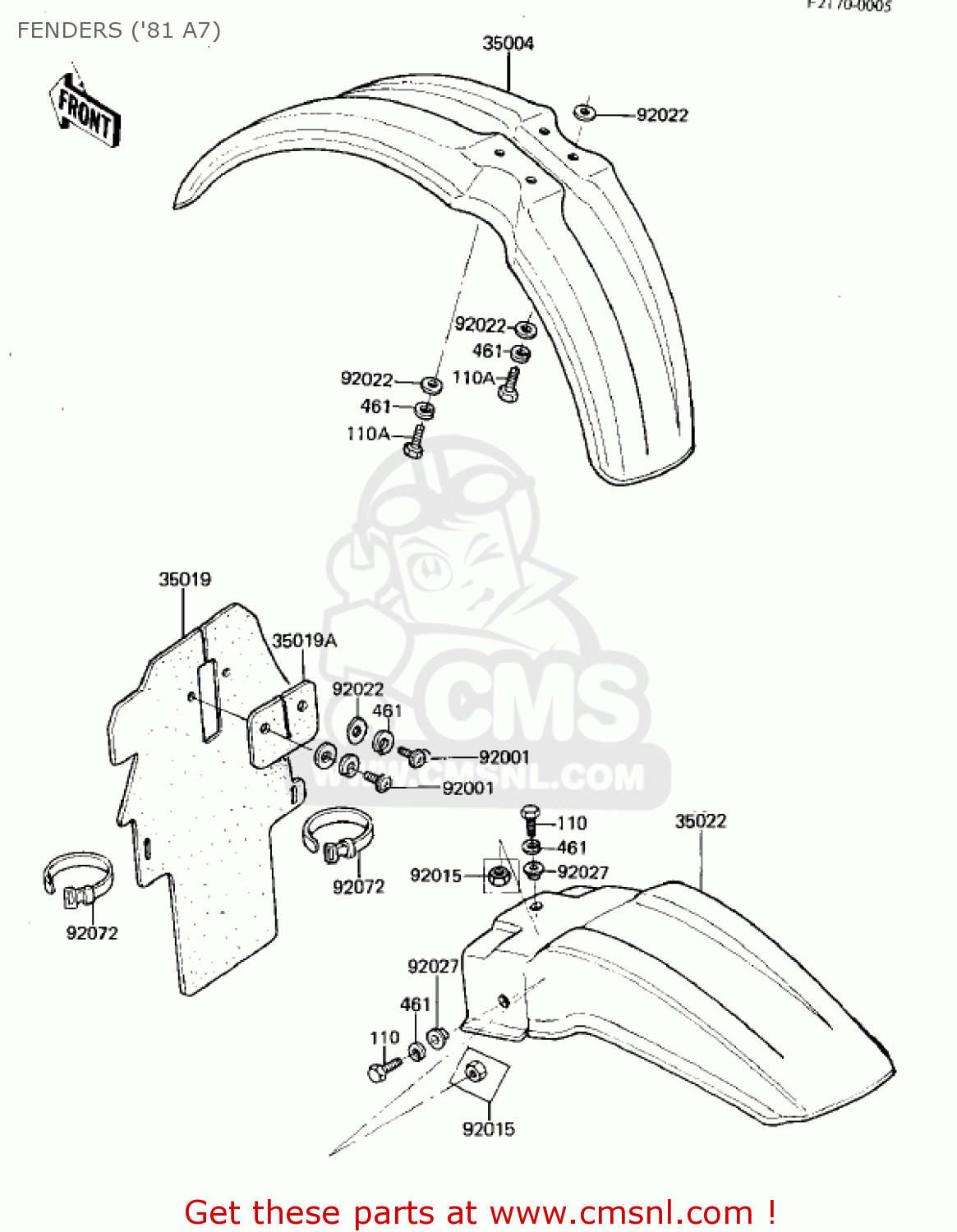

FENDERS ('81 A7)

KX125-A6 KX125 1980 UNITED KINGDOM USA CANADA AL

Fenders ('81 a7) diagram KX125-A6 KX125 1980 UNITED KINGDOM USA CANADA AL

prices are in EUR

ref

part #

description

quantity

35004

3500412336W
ref: 35004

FENDER-FRONT,L.GREEN

€ 61.50

35019

350191017
ref: 35019

FLAP,RR FENDER

€ 29.00

35019A

350191019
ref: 35019A

FLAP,FENDER,RR

€ 8.00

35022

3502210436W
ref: 35022
CN,US

FENDER-COMP-REAR

€ 57.50

92001

920091287
ref: 92001

SCREW,6X14

€ 1.50

92015

92019008
ref: 92015

NUT-LOCK,6MM

€ 3.00

92022

92022125
ref: 92022

WASHER,6.5X20X1.6

€ 1.00

92027

920271260
ref: 92027

COLLAR

€ 4.00

92072

92072056
ref: 92072

BAND,RUBBER

€ 3.00

110

112B0614
ref: 110

BOLT-UPSET 6X14

€ 2.50

110A

112G0616
ref: 110A

BOLT UPSET,6X16

€ 1.00

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50
