TRANSMISSION
KMX200-A5 1991 EUROPE GR

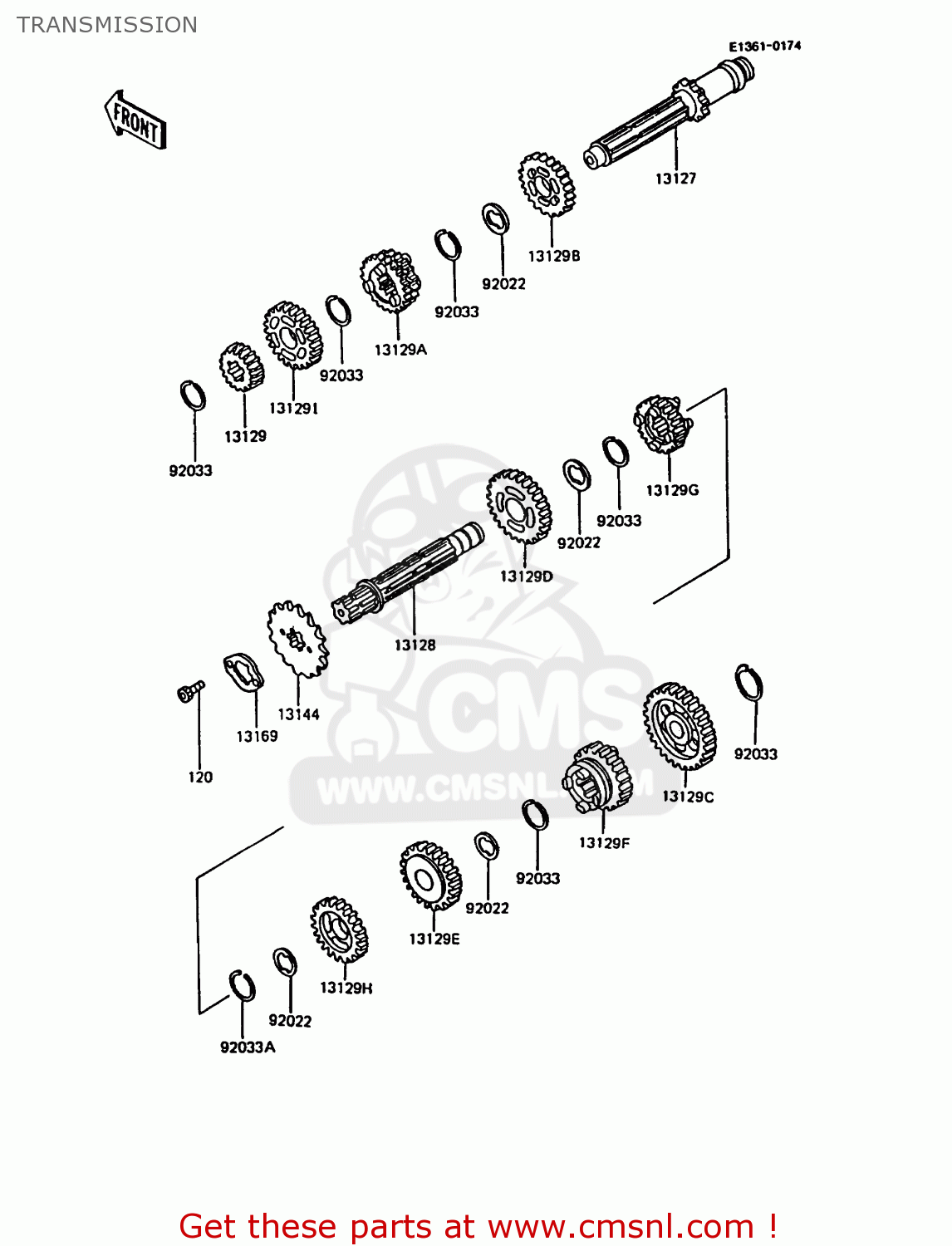

Transmission diagram KMX200-A5 1991 EUROPE GR
TRANSMISSION KMX200-A5 1991 EUROPE GR
×
prices are in EUR
ref
part #
description
quantity
120
120Q0608
ref: 120
BOLT-SOCKET
€ 2.00
13127
131271156
ref: 13127
SHAFT-TRANSMISSION IN
€ 123.50
13128
131281134
ref: 13128
SHAFT-TRANSMISSION OU
€ 124.50
13129
131291884
ref: 13129
GEAR,INPUT 2ND,15T
€ 58.50
13129A
131291885
ref: 13129A
GEAR,INPUT 3RD&4TH,18
€ 87.50
13129B
131291886
ref: 13129B
GEAR,INPUT 5TH,25T
€ 78.00
13129C
131291888
ref: 13129C
GEAR,OUTPUT LOW,30T
€ 78.00
13129D
131291889
ref: 13129D
GEAR,OUTPUT 2ND,26T
€ 78.00
13129E
131291890
ref: 13129E
GEAR,OUTPUT 3RD,23T
€ 90.00
13129F
131291891
ref: 13129F
GEAR,OUTPUT 5TH,21T
€ 66.00
13129G
131291892
ref: 13129G
GEAR,OUTPUT TOP,20T
€ 66.00
13129H
131291924
ref: 13129H
GEAR,OUTPUT 4TH,23T
€ 59.50
13129I
131291925
ref: 13129I
GEAR,INPUT TOP,26T
€ 58.00
13144
131441144
ref: 13144
SPROCKET-OUTPUT,16T
€ 24.50
13169
131691541
ref: 13169
PLATE,SPROCKET
€ 3.00
92022
920221033
ref: 92022
WASHER,TOOTHED,20.3X2
€ 4.50
92033
920331214
ref: 92033
RING-SNAP,18.7MM
€ 2.50
92033A
920331215
ref: 92033A
RING-SNAP,14MM
€ 2.50
