Genuine KMX Kawasaki Parts delivered quickly!


BRAKE PEDAL

KMX200-A5 1991 EUROPE GR

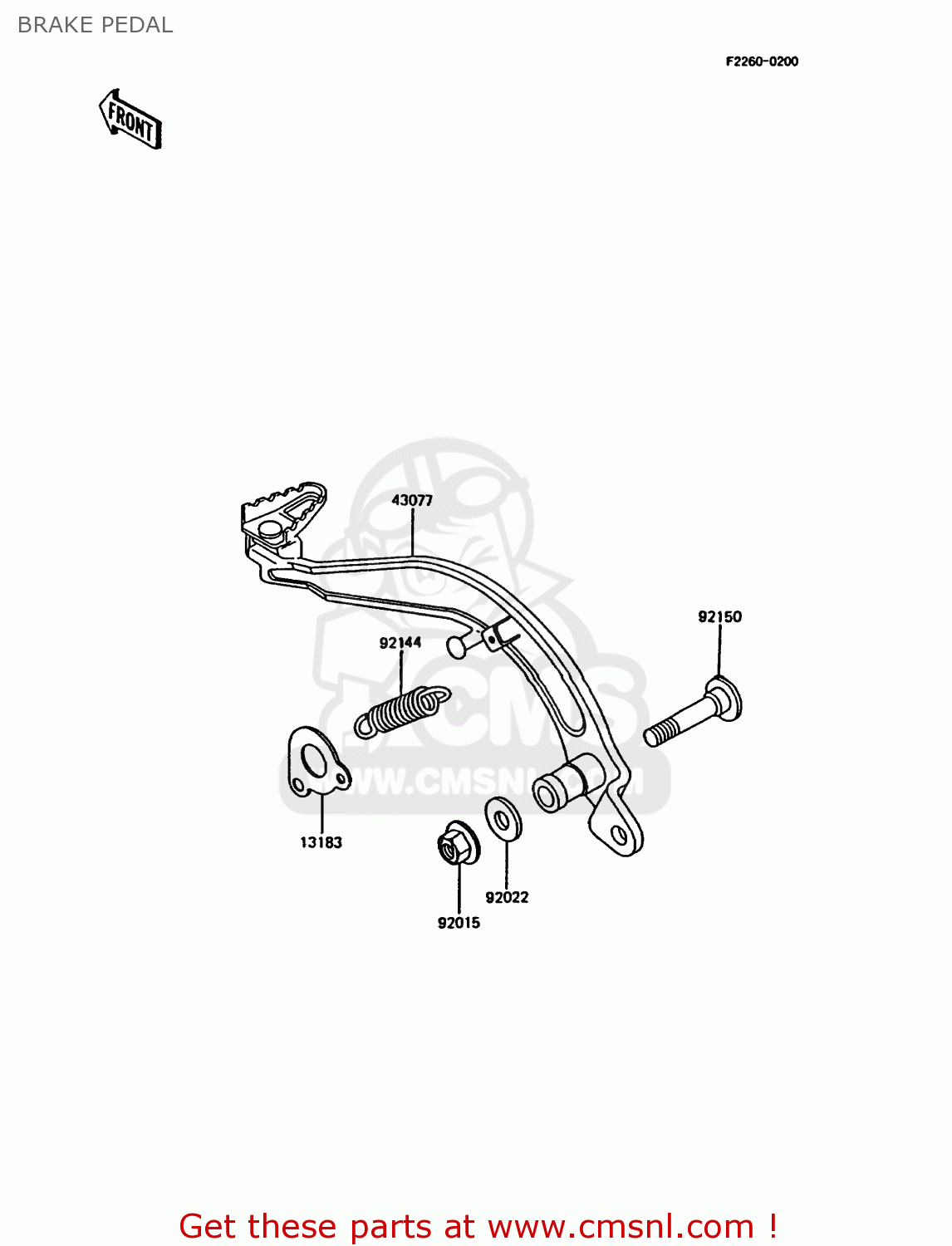

Brake pedal diagram KMX200-A5 1991 EUROPE GR

BRAKE PEDAL KMX200-A5 1991 EUROPE GR
BRAKE PEDAL KMX200-A5 1991 EUROPE GR
BRAKE PEDAL KMX200-A5 1991 EUROPE GR
prices are in EUR
ref
part #
description
quantity
13183
131831240
ref: 13183
PLATE,BRAKE RETURN SP
131831240
€ 6.00
43077
430771067
ref: 43077
LEVER-ASSY-BRAKE,PEDA
€ 56.00
92015
920151668
ref: 92015
NUT
920151668
€ 3.00
92022
920221561
ref: 92022
WASHER,8.5X20X1.6
920221561
€ 2.50
92144
921441227
ref: 92144
SPRING,BRAKE PEDAL RE
921441227
€ 4.50
92150
920011858
ref: 92150
BOLT,SOCKET,8X40
€ 4.00
