REAR HUB
KMX200-A5 1991 EUROPE GR

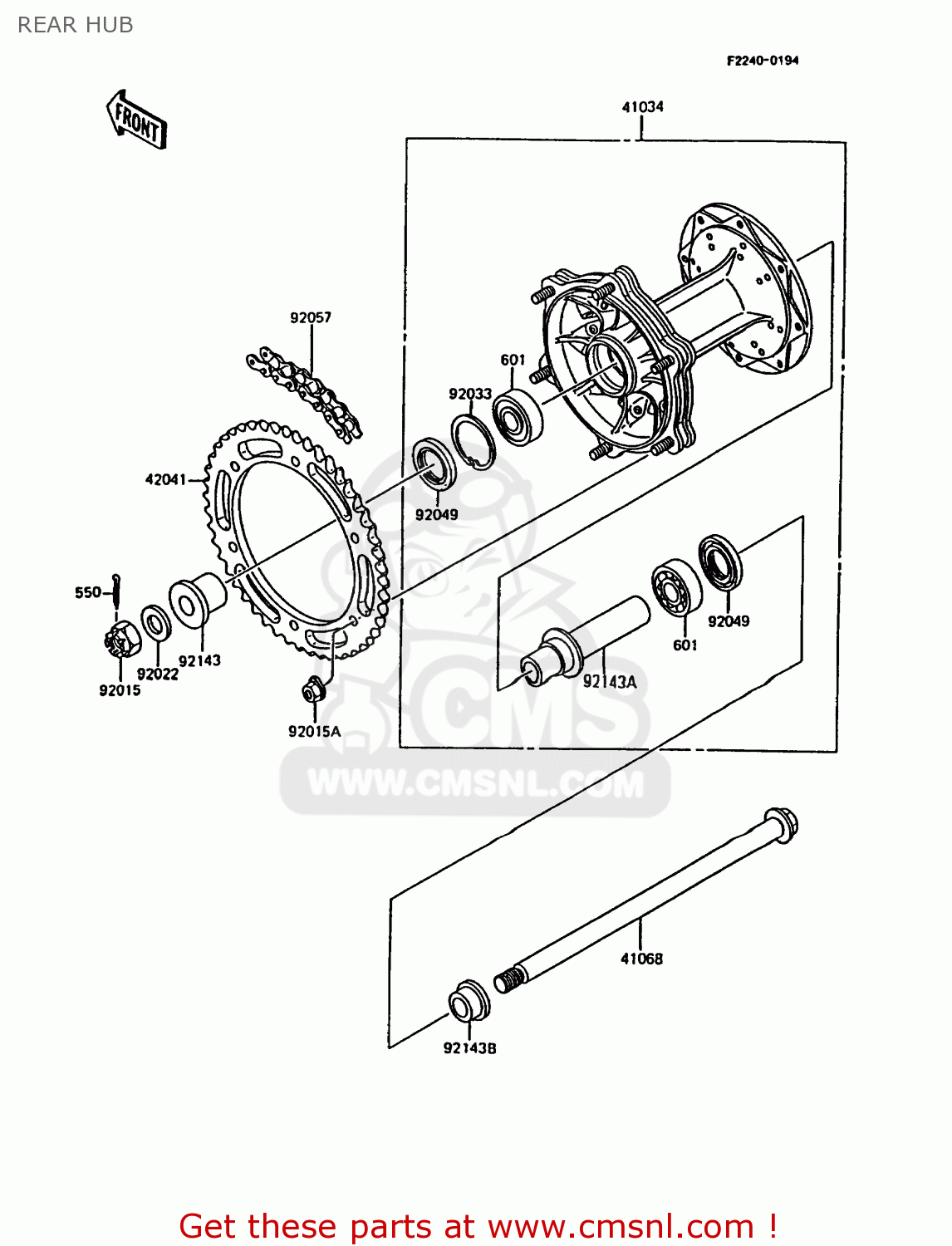

Rear hub diagram KMX200-A5 1991 EUROPE GR
REAR HUB KMX200-A5 1991 EUROPE GR
×
prices are in EUR
ref
part #
description
quantity
550
550D3025
ref: 550
PIN-COTTER,3.0X25
€ 0.50
601
601B6302UG
ref: 601
BEARING BALL
€ 29.00
41034
410341182
ref: 41034
DRUM-ASSY,REAR BRAKE
€ 422.50
41068
410681246
ref: 41068
AXLE,RR
€ 54.00
42041
420411291
ref: 42041
SPROCKET-HUB,50T
€ 36.00
92015
42045020
ref: 92015
NUT,14MM
€ 6.50
92015A
920151668
ref: 92015A
NUT
€ 3.00
92022
920221550
ref: 92022
WASHER,15.5X28X2
€ 2.50
92033
920331041
ref: 92033
CIRCLIP,42MM
€ 4.00
92049
920491203
ref: 92049
SEAL-OIL,BJNC2 25425
€ 12.00
92057
920571243
ref: 92057
CHAIN,DRIVE,EK428SHD-
€ 52.50
92143
921431015
ref: 92143
COLLAR,L=28
€ 18.50
92143A
921431020
ref: 92143A
COLLAR,15.2X22X115
€ 13.00
92143B
921431021
ref: 92143B
COLLAR,L=13
€ 13.50
