SUSPENSION
KMX200-A5 1991 EUROPE GR

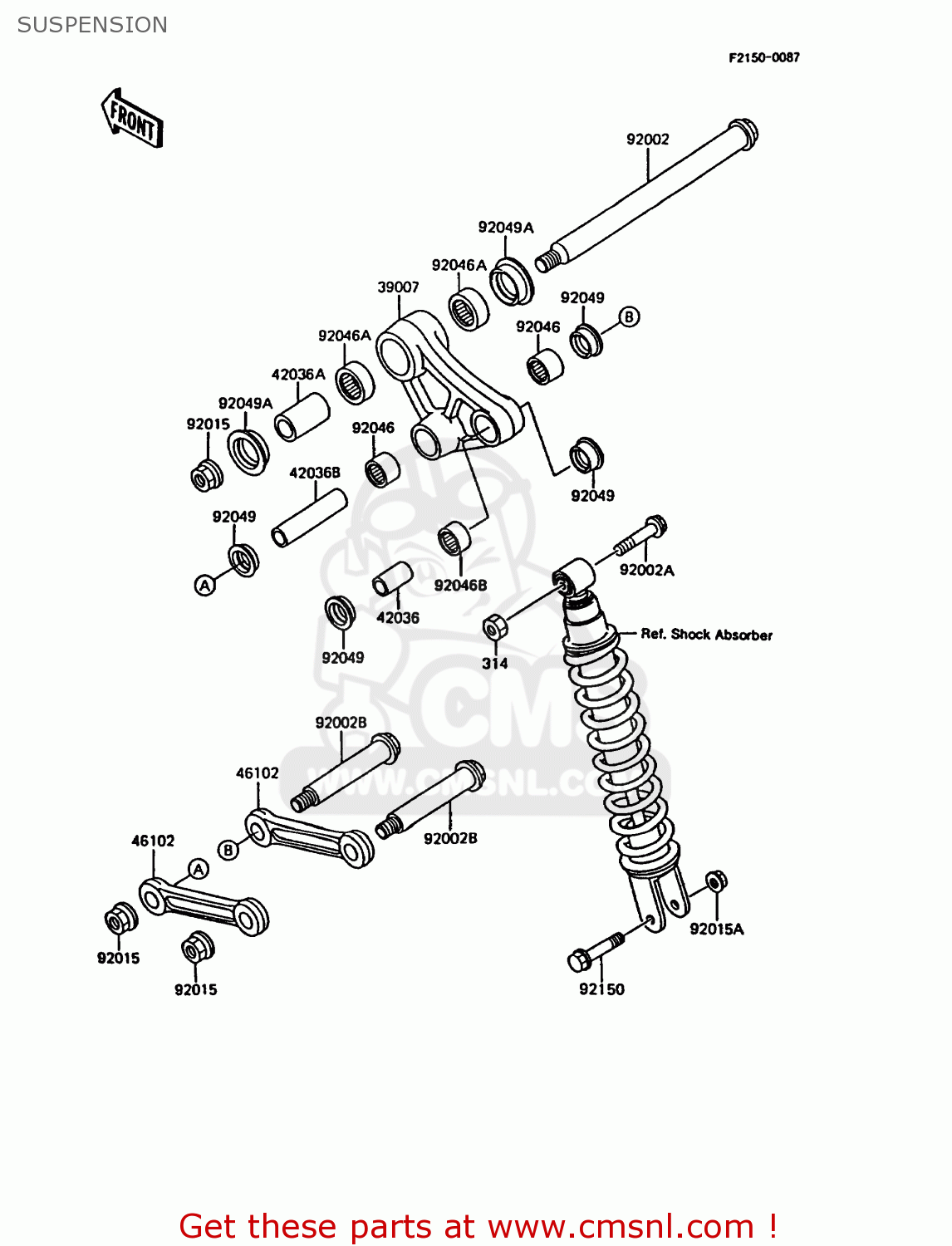

Suspension diagram KMX200-A5 1991 EUROPE GR
SUSPENSION KMX200-A5 1991 EUROPE GR
×
prices are in EUR
ref
part #
description
quantity
314
314G1200
ref: 314
NUT-HEX-FINE
€ 2.50
39007
390071137
ref: 39007
ARM-SUSP,UNI TRAK
€ 155.50
42036
420361077
ref: 42036
SLEEVE,ARM,RR
€ 11.50
42036A
420361203
ref: 42036A
SLEEVE,20.1X28X53
€ 24.50
42036B
420361205
ref: 42036B
SLEEVE,15X20X82
€ 18.50
46102
461021219
ref: 46102
ROD,SUSPENSION
€ 47.50
92002
920021839
ref: 92002
BOLT
€ 63.50
92002A
920021840
ref: 92002A
BOLT
€ 6.00
92002B
920021870
ref: 92002B
BOLT,FLANGED,14X120
€ 19.00
92015
920151459
ref: 92015
NUT,14MM
€ 6.50
92015A
920151706
ref: 92015A
NUT
€ 5.00
92046
920461110
ref: 92046
BEARING-NEEDLE,BM2027
€ 22.50
92046A
920461111
ref: 92046A
BEARING-NEEDLE,BM2817
€ 21.50
92046B
920461112
ref: 92046B
BEARING-NEEDLE,BM2027
€ 21.50
92049
920491109
ref: 92049
SEAL-OIL,ARM,CNT
€ 6.50
92049A
920491181
ref: 92049A
SEAL-OIL
€ 7.50
92150
921501129
ref: 92150
BOLT,FLANGED,12X58
€ 7.00
