FRAME

KMX200-A5 1991 EUROPE GR

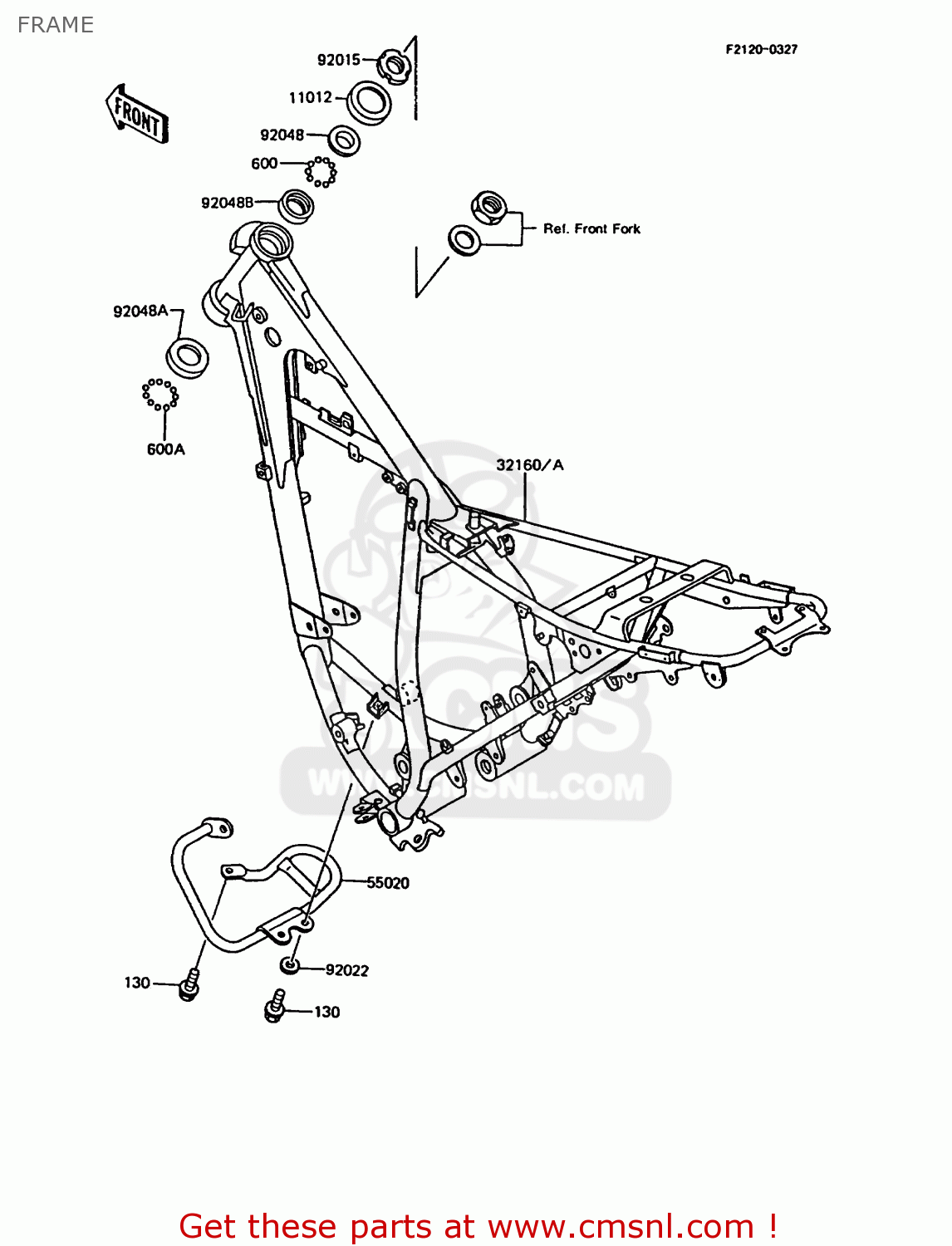

Frame diagram KMX200-A5 1991 EUROPE GR

prices are in EUR

ref

part #

description

quantity

130

130G0614
ref: 130

BOLT,FLANGED,6X14

€ 0.50

600

600A0600
ref: 600

BALL-STEEL,3/16

€ 0.50

600A

600A0800
ref: 600A

BALL-STEEL,1/4

€ 0.50

11012

46098018
ref: 11012

CAP,STEERING STEM

€ 4.00

32160

321601068CC
ref: 32160

FRAME-COMP,L.GREEN

€ 699.50

32160A

321601068CD
ref: 32160A

FRAME-COMP,F.RED

€ 990.50

55020

550201318
ref: 55020

GUARD,ENGINE

€ 47.50

92015

92090022
ref: 92015

NUT,STEERING LOCK,25M

€ 18.50

92022

920221565
ref: 92022

WASHER,6.5X16X2

€ 2.50

92048

92047014
ref: 92048

RACE,STEERING STEM BE

€ 12.50

92048A

92048005
ref: 92048A

RACE-STEERING BEARING

€ 11.50

92048B

92048009
ref: 92048B

RACE,STRG STM

€ 14.00
