FRONT FORK
KMX200-A5 1991 EUROPE GR

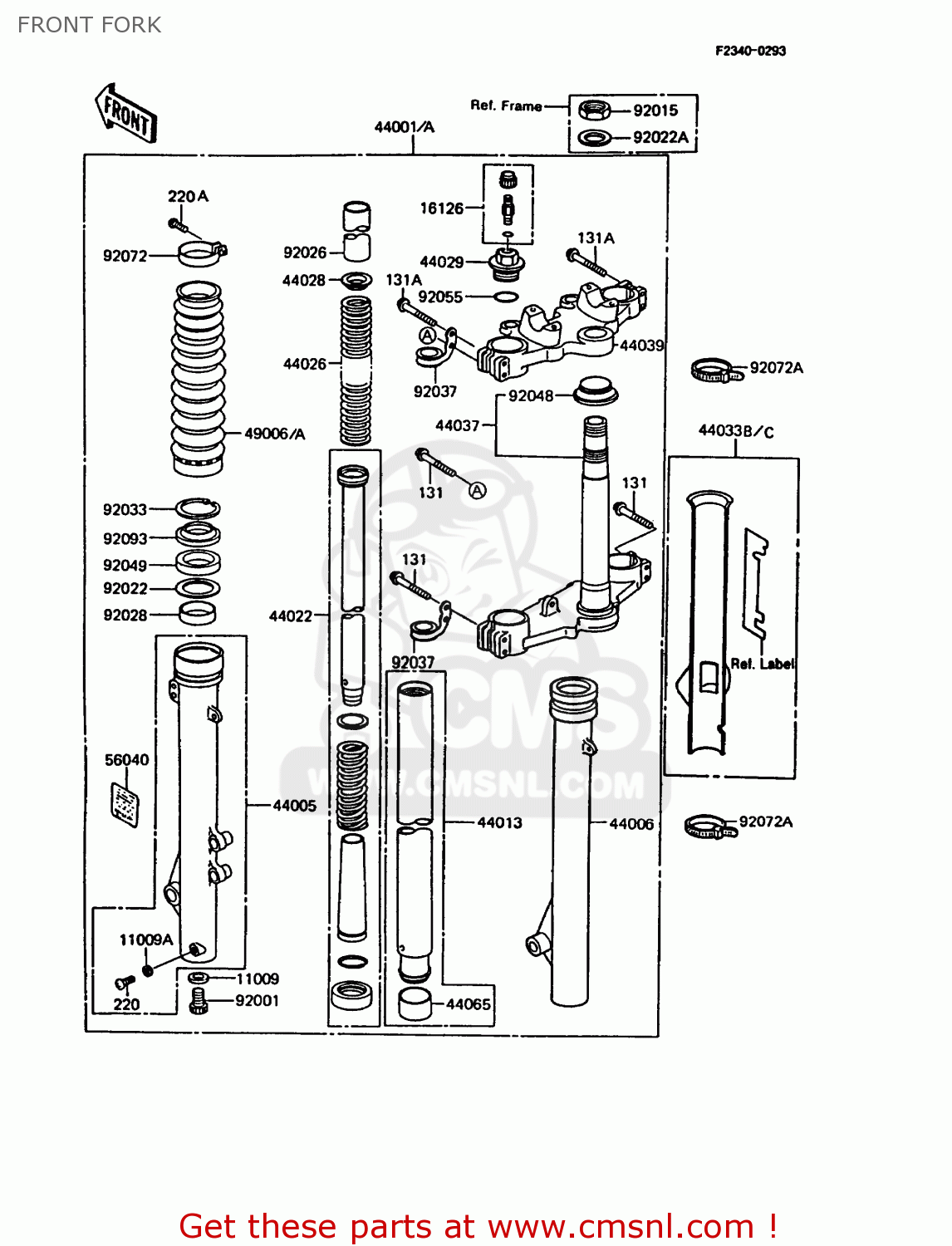

Front fork diagram KMX200-A5 1991 EUROPE GR
FRONT FORK KMX200-A5 1991 EUROPE GR
×
prices are in EUR
ref
part #
description
quantity
131
131G0840
ref: 131
BOLT, 8 X 40
€ 5.50
131A
131J0845
ref: 131A
BOLT-FLANGED,8X45,BLA
€ 5.50
220
220B0408
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220B0416
ref: 220A
SCREW-PAN-CROS
€ 2.00
11009
110091127
ref: 11009
GASKET,FORK CYLID BOL (NAS)
€ 3.00
11009A
44045002
ref: 11009A
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
16126
161261052
ref: 16126
VALVE,AIR
€ 22.00
44001
440011668BC
ref: 44001
FORK-FRONT,BLUE
€ 1,433.50
44001A
440011668BL
ref: 44001A
FORK-FRONT,RED
€ 1,433.50
44005
440051271
ref: 44005
PIPE-LEFT FORK OUTER
€ 295.00
44006
440061268
ref: 44006
PIPE-RIGHT FORK OUTER
€ 295.00
44013
440131272
ref: 44013
PIPE-FORK INNER
€ 233.00
44022
440221220
ref: 44022
CYLINDER-FORK
€ 94.00
44026
440261381
ref: 44026
SPRING-FRONT FORK
€ 45.50
44028
440281003
ref: 44028
GUIDE-FORK SPRING
€ 7.50
44029
440291042
ref: 44029
SEAT-FORK SPRING
€ 51.50
44033B
4403350086L
ref: 44033B
COVER-FORK,RH,F.RED
€ 25.00
44033C
4403350096W
ref: 44033C
COVER-FORK,RH,L.GREEN
€ 26.00
44037
440371229
ref: 44037
HOLDER-FORK UNDER
€ 232.50
44039
440391170
ref: 44039
HOLDER-FORK UPPER
€ 197.50
44065
440651057
ref: 44065
BUSHING,FRON.PIPE
€ 31.50
49006
490061222BC
ref: 49006
BOOT,FORK,BLUE
€ 56.50
49006A
490061222BL
ref: 49006A
BOOT,FORK,RED
€ 45.00
56040
560401120
ref: 56040
LABEL,FRONT FORK
€ 3.50
92001
920011309
ref: 92001
BOLT,FORK CYLINDER
€ 4.50
92015
920151653
ref: 92015
NUT,STEERING STEM,22M
€ 11.50
92022
920221242
ref: 92022
WASHER
€ 5.50
92022A
920221873
ref: 92022A
WASHER
€ 5.00
92026
920261294
ref: 92026
SPACER
€ 30.00
92028
920281125
ref: 92028
BUSHING
€ 17.00
92033
920331047
ref: 92033
SNAP RING,FORK OUTER
€ 4.00
92037
920371973
ref: 92037
CLAMP
€ 12.00
92048
92047010
ref: 92048
CONE-STERNG BERG LOW
€ 10.00
92049
920491180
ref: 92049
SEAL-OIL,FRONT FORK
€ 14.50
92055
920551050
ref: 92055
RING-O,FORK TOP CAP
€ 4.00
92072
920721046
ref: 92072
BAND,BOOT
€ 6.50
92072A
920721237
ref: 92072A
BAND,L=250
€ 2.00
92093
920931166
ref: 92093
SEAL,FRONT FORK
€ 12.50
