FRAME FITTING

KMX200-A5 1991 EUROPE GR

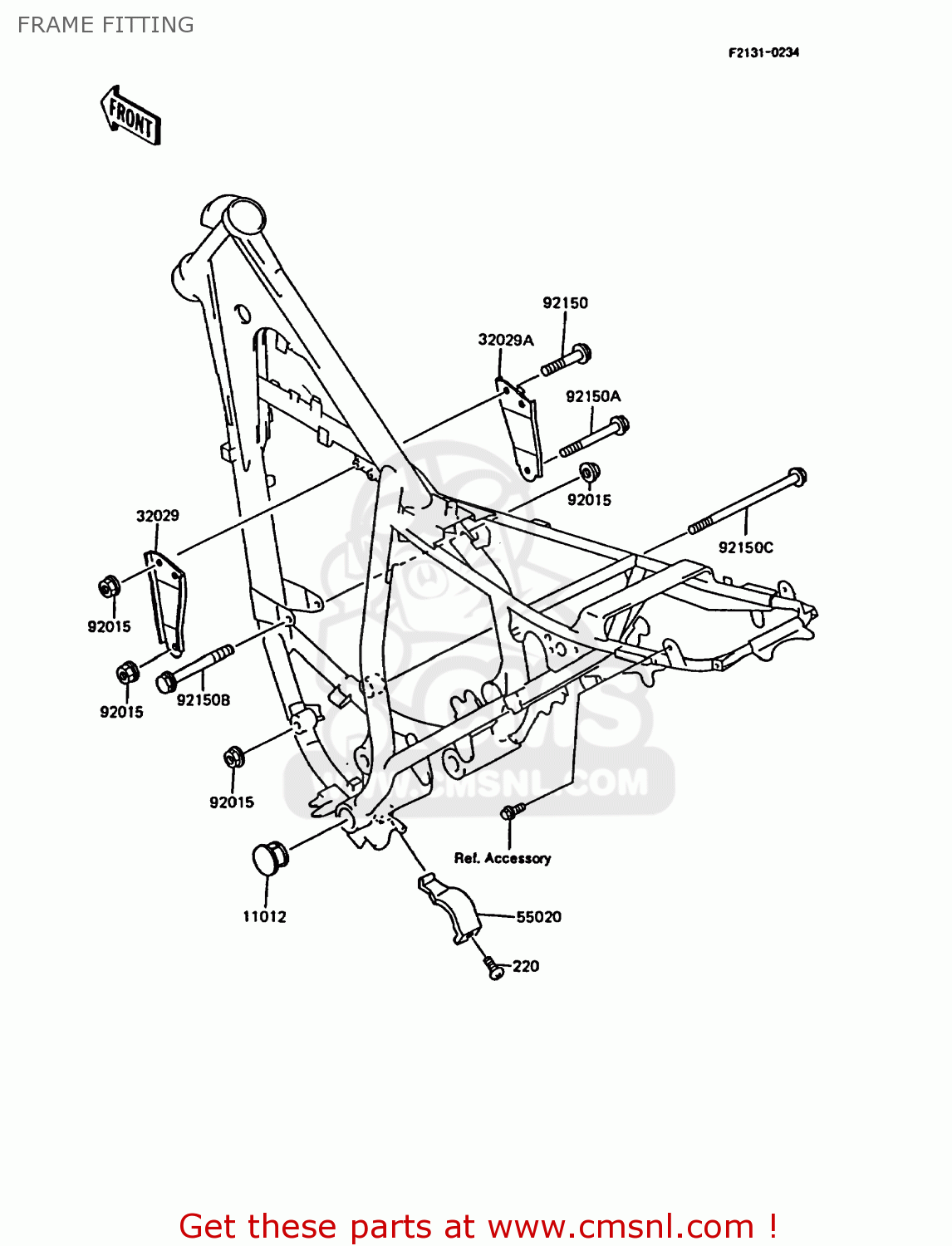

Frame fitting diagram KMX200-A5 1991 EUROPE GR

prices are in EUR

ref

part #

description

quantity

220

220B0510
ref: 220

SCREW-PAN-CROS,5X10

€ 0.50

11012

110121559
ref: 11012

CAP,32X14

€ 4.50

32029

320291482
ref: 32029

BRACKET-ENGINE,LH

€ 13.00

32029A

320291483
ref: 32029A

BRACKET-ENGINE,RH

€ 13.50

55020

550201231
ref: 55020

GUARD,FRAME CLOSS

€ 7.00

92015

920151696
ref: 92015

NUT,FLANGED,LOCK,8MM

€ 3.00

92150

921501034
ref: 92150

BOLT,FLANGED,8X45

€ 3.00

92150A

921501035
ref: 92150A

BOLT,FLANGED,8X65

€ 5.50

92150B

921501036
ref: 92150B

BOLT,FLANGED,8X65

€ 3.50

92150C

921501037
ref: 92150C

BOLT,FLANGED,8X135

€ 4.50
