CLUTCH
KMX200-A5 1991 EUROPE GR

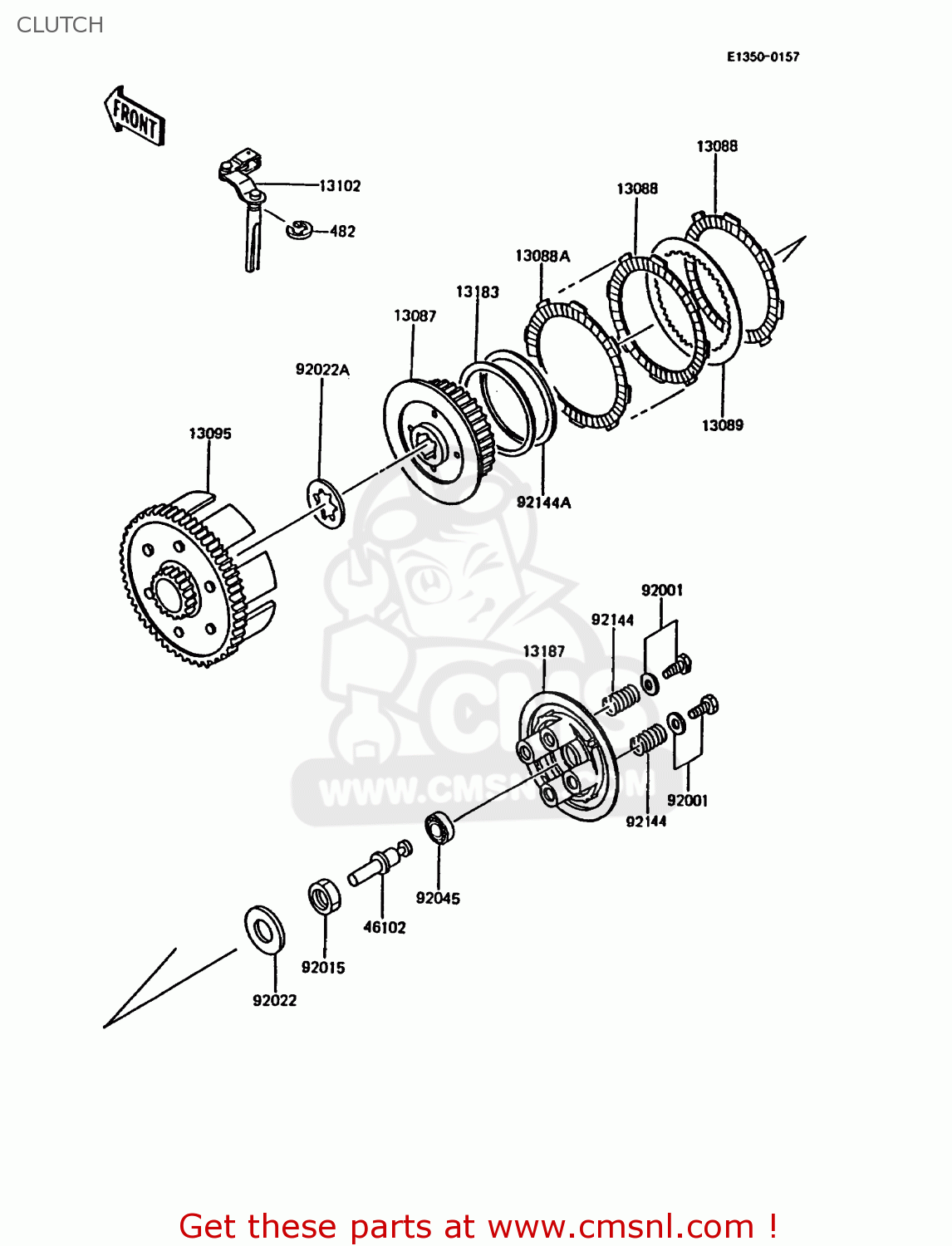

Clutch diagram KMX200-A5 1991 EUROPE GR
CLUTCH KMX200-A5 1991 EUROPE GR
×
prices are in EUR
ref
part #
description
quantity
482
482J8000
ref: 482
CIRCLIP-TYPE-E,8MM
€ 0.50
13087
130871021
ref: 13087
HUB-CLUTCH
€ 73.00
13088
130881016
ref: 13088
PLATE-FRICTION (NAS)
€ 10.00
13088A
130881077
ref: 13088A
PLATE-FRICTION (NAS)
€ 11.50
13089
130891012
ref: 13089
PLATE-CLUTCH (NAS)
€ 8.00
13095
130951197
ref: 13095
HOUSING-COMP-CLUTCH
€ 358.00
13102
131021082
ref: 13102
RELEASE-COMP-CLUTCH
€ 37.00
13183
131831274
ref: 13183
PLATE
€ 7.00
13187
131871013
ref: 13187
PLATE-CLUTCH OPERATIN (NAS)
€ 32.00
46102
461021049
ref: 46102
ROD,CLUTCH
€ 15.00
92001
920011791
ref: 92001
BOLT,6X20,W/WASHER
€ 2.00
92015
92015072
ref: 92015
NUT,LOCK,16MM
€ 4.50
92022
920221356
ref: 92022
WASHER,16.3X29X1.75
€ 4.50
92022A
920221915
ref: 92022A
WASHER,20X30X4.5
€ 9.50
92045
920451235
ref: 92045
BEARING-BALL,6001C3ML
€ 15.50
92144
921441200
ref: 92144
SPRING,CLUTCH
€ 4.50
92144A
921441289
ref: 92144A
SPRING,CLUTCH
€ 14.00
