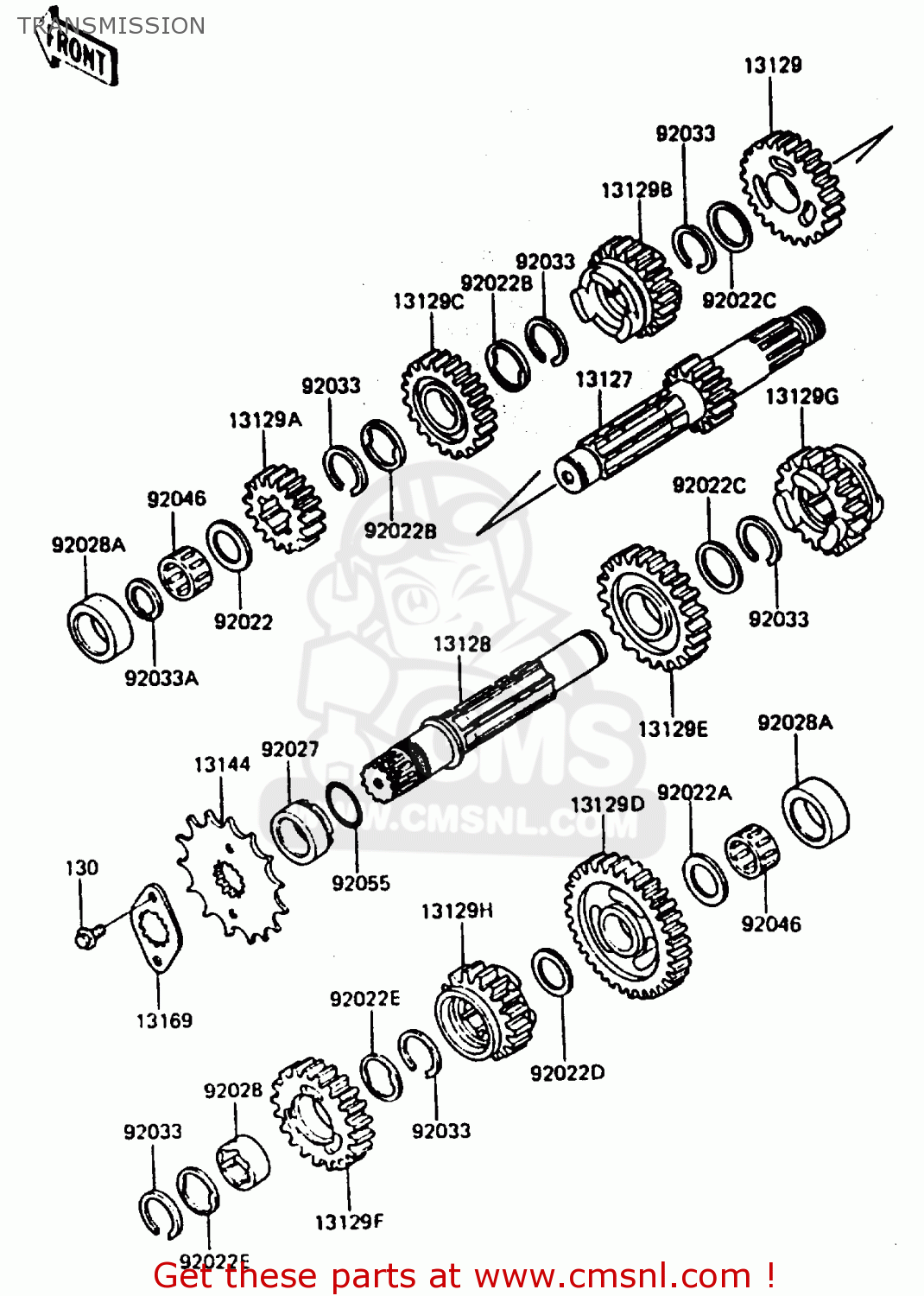

TRANSMISSION

ref

part #

description

quantity

13127

131271107
ref: 13127

SHAFT-TRANSMISSION IN

€ 161.00

13128

131281104
ref: 13128

SHAFT-TRANSMISSION OU

€ 137.50

13129

131291410
ref: 13129

GEAR,INPUT TOP,24T

€ 94.50

13129A

131291518
ref: 13129A

GEAR,INPUT 2ND,17T

€ 55.50

13129B

131291519
ref: 13129B

GEAR,INPUT 3RD,22T

€ 53.50

13129C

131291520
ref: 13129C

GEAR,INPUT 4TH,22T

€ 48.50

13129D

131291522
ref: 13129D

GEAR,OUTPUT LOW,39T

€ 65.00

13129E

131291523
ref: 13129E

GEAR,OUTPUT 2ND,26T

€ 39.00

13129F

131291524
ref: 13129F

GEAR,OUTPUT 3RD,26T

€ 48.50

13129G

131291525
ref: 13129G

GEAR,OUTPUT 4TH,21T

€ 60.00

13129H

131291575
ref: 13129H

GEAR,OUTPUT TOP,19T

€ 99.50

13144

131441103
ref: 13144

SPROCKET-OUTPUT,15T

€ 36.00

13169

131691109
ref: 13169

PLATE,ENGINE SPROCKET

€ 5.50

92022

92022112
ref: 92022

WASHER,20.5X30X1,STEE

€ 6.00

92022A

920221479
ref: 92022A

WASHER,20.3X29X0.5

€ 3.00

92022B

920221482
ref: 92022B

WASHER,TOOTHED,25.3X2

€ 2.50

92022C

92022159
ref: 92022C

WASHER-THRUST,25MM

€ 5.50

92022D

92022252
ref: 92022D

WASHER

€ 4.00

92022E

92024036
ref: 92022E

WASHER-LOCK

€ 1.00

92027

920271800
ref: 92027

COLLAR

€ 19.50

92028

920281299
ref: 92028

BUSHING,OUTPUT 3RD GE

€ 10.50

92028A

92028131
ref: 92028A

BUSHING

€ 28.00

92033

92033026
ref: 92033

CIRCLIP

€ 6.00

92033A

92033029
ref: 92033A

CIRCLIP,18MM

€ 6.50

92046

92046036
ref: 92046

BEARING,KT202614

€ 9.00

92053

920551293
ref: 92053

RING-O, 21.5MM

€ 3.00

130

130G0608
ref: 130

BOLT-FLANGED

€ 0.50
