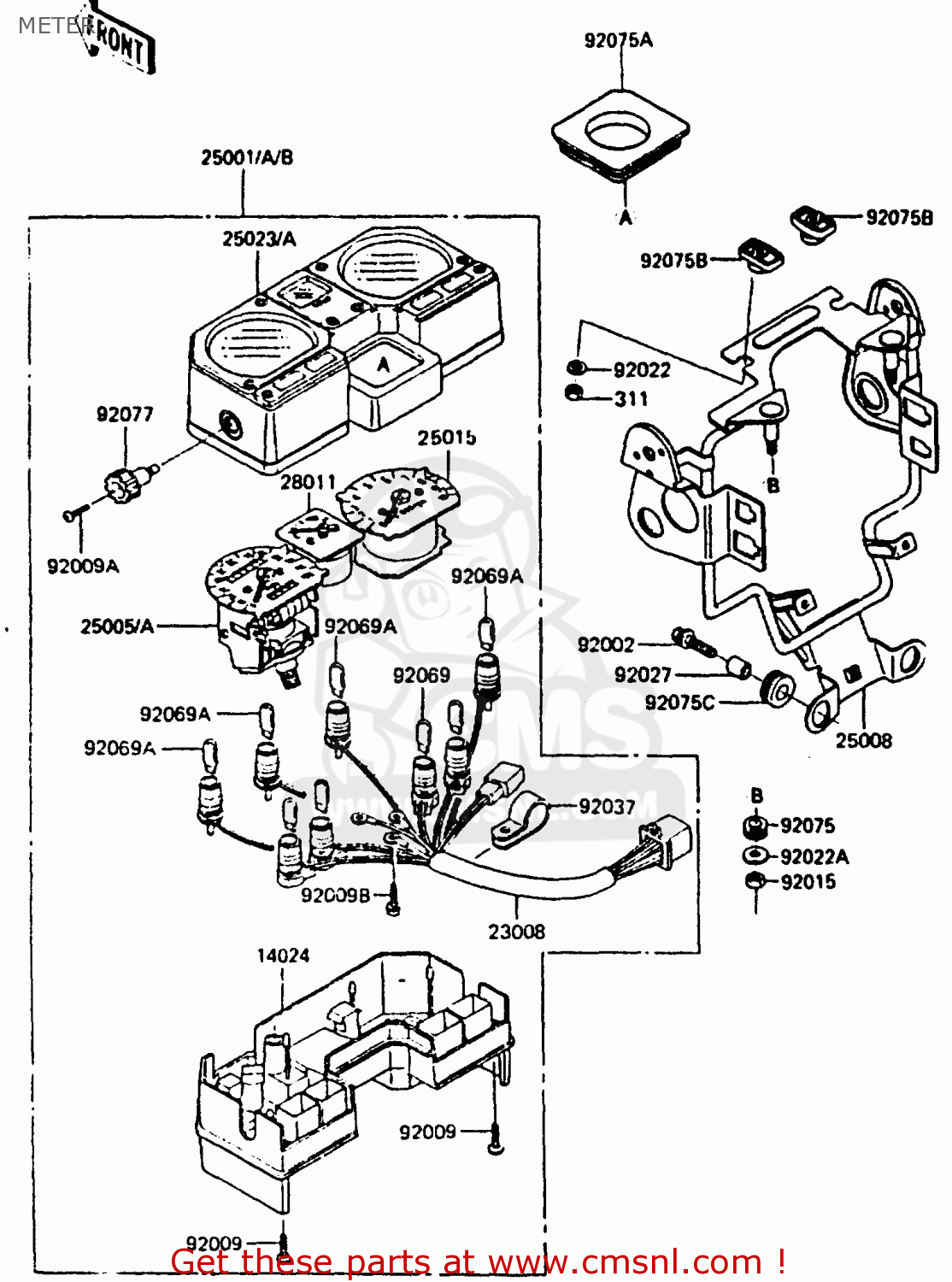

METER

ref

part #

description

quantity

14024

140251818
ref: 14024

COVER,METER CASE,LWR

€ 59.50

23008

230081215
ref: 23008

SOCKET-ASSY,METER

€ 86.50

23001

250011515
ref: 23001
UK

METER-ASSY,MPH

€ 926.00

25001A

250011516
ref: 25001A
EU, FR, GR, IT, NR,

METER-ASSY,KPH

€ 769.00

25001B

250011556
ref: 25001B
SD

METER-ASSY,KPH

€ 1,685.50

25005

250051261
ref: 25005
EU, FR, GR, IT, NR,

SPEEDOMETER,KPH

€ 168.00

25005A

250051262
ref: 25005A
UK

SPEEDOMETER,MPH

€ 157.50

25008

250081114
ref: 25008

BRACKET-METER

€ 52.50

25015

250151208
ref: 25015

TACHOMETER,X1000R/MIN

€ 208.50

25023

250231107
ref: 25023
EU, FR, UR, IT, NR,

COVER-METER CASE,UPP

€ 66.00

25023A

250231111
ref: 25023A
SD

COVER-METER CASE,UPP

€ 55.00

28011

280111058
ref: 28011

METER,TEMP

€ 115.00

92002

920021137
ref: 92002

BOLT,6X25

€ 2.50

92009

920091163
ref: 92009

SCREW,TAPPING,4X16

€ 2.50

92009A

920091172
ref: 92009A

SCREW,2X6,BLACK

€ 2.00

92009B

920091293
ref: 92009B

SCREW,3X22

€ 2.50

92015

920151391
ref: 92015

NUT,6MM

€ 2.00

92022

25009004
ref: 92022

WASHER,5.2X16X1.2T

€ 2.50

92022A

920221557
ref: 92022A

WASHER,6.5X20X1.6

€ 1.00

92027

92027162
ref: 92027

COLLAR-REAR FENDER

€ 4.50

92037

920371479
ref: 92037

CLAMP,METER,SOCKET AS

€ 6.00

92069

920691007
ref: 92069

BULB,12V3.4W

€ 2.50

92069A

920691059
ref: 92069A

BULB,12V 1.7W

€ 2.50

92075

92075024
ref: 92075

DAMPER

€ 2.50

92075A

920751578
ref: 92075A

DAMPER,IGNITION SWITC

€ 4.50

92075B

920751581
ref: 92075B

DAMPER,METER BRACKET

€ 4.00

92075C

92075209
ref: 92075C

DAMPER RUBBER

€ 3.00

92077

920771054
ref: 92077

KNOB,METER

€ 6.00

311

311C0500
ref: 311

NUT-HEX

€ 0.50

all assemblies
