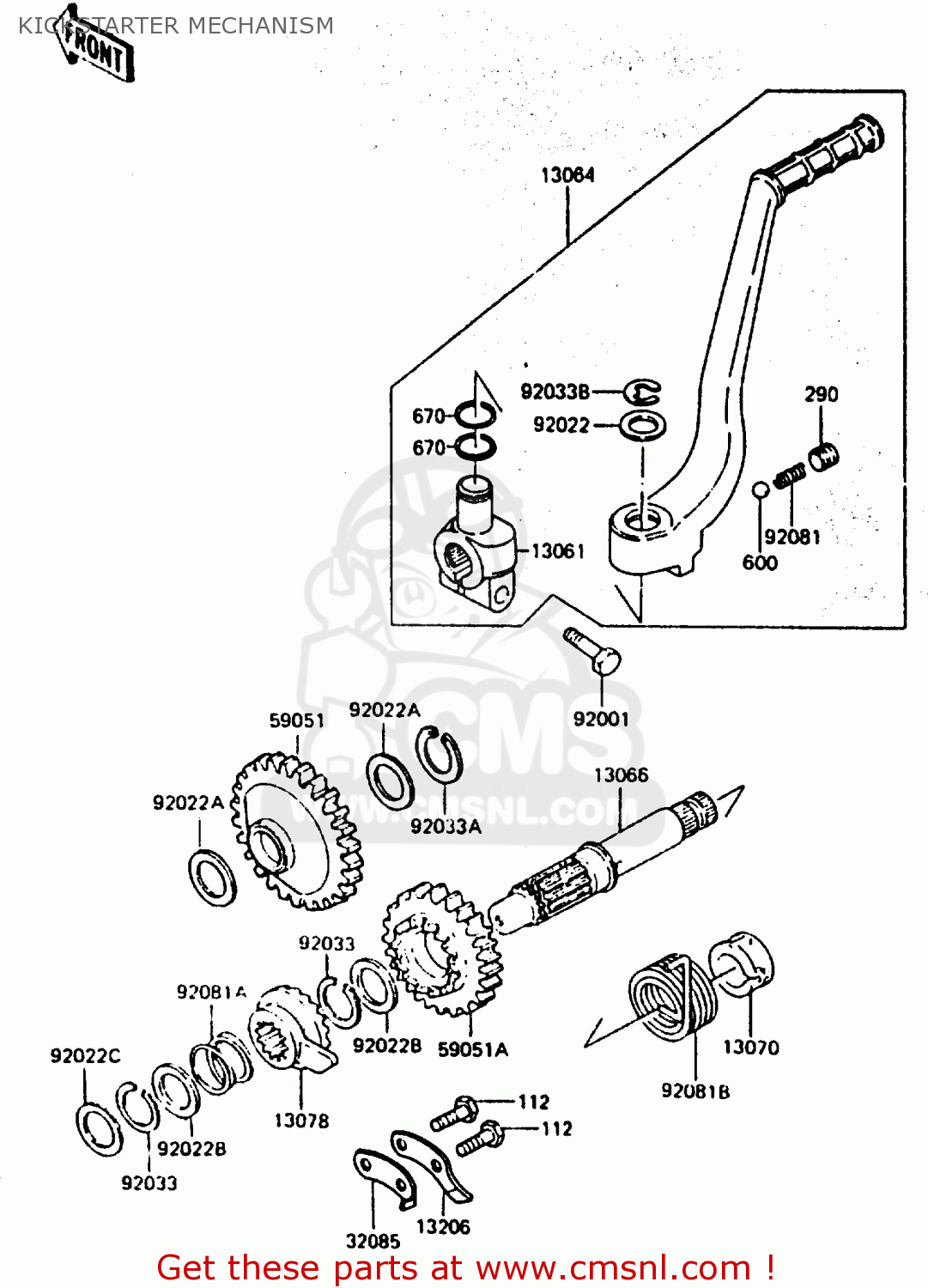

KICKSTARTER MECHANISM

ref

part #

description

quantity

13061

130611106
ref: 13061

BOSS,KICK PEDAL

€ 47.50

13064

130641102
ref: 13064

LEVER-ASSY-KICK,PEDAL

€ 127.00

13066

130661058
ref: 13066

SHAFT-KICK

€ 88.00

13070

130701106
ref: 13070

GUIDE,KICK SPRING

€ 11.50

13078

130781051
ref: 13078

RATCHET

€ 45.00

13206

132061051
ref: 13206

GUIDE-KICK

€ 4.50

52085

13072014
ref: 52085

STOPPER,KICKSTARTER

€ 6.50

59051

590511102
ref: 59051

GEAR-SPUR,IDLE

€ 85.00

59051A

590511142
ref: 59051A

GEAR-SPUR,KICK

€ 90.50

92001

920011042
ref: 92001

BOLT,HEX HEAD,8X28

€ 4.00

92022

920221019
ref: 92022

WASHER,15.2X20X1

€ 3.50

92022A

920221479
ref: 92022A

WASHER,20.3X29X0.5

€ 3.00

92022B

92022159
ref: 92022B

WASHER-THRUST,25MM

€ 5.50

92022C

92022252
ref: 92022C

WASHER

€ 4.00

92033

92033026
ref: 92033

CIRCLIP

€ 6.00

92033A

92033029
ref: 92033A

CIRCLIP,18MM

€ 6.50

92033B

920331166
ref: 92033B

RING-SNAP,10MM

€ 2.50

92081

92081020
ref: 92081

SPRING-KICK PEDAL

€ 2.50

92081A

92081097
ref: 92081A

SPRING

€ 7.50

92081B

92082003
ref: 92081B

SPRING-KICKSTARTER

€ 19.00

112

112G0618
ref: 112

BOLT-UPSET

€ 0.50

290

290Q0808
ref: 290

SCREW,8X8

€ 2.50

600

600A0800
ref: 600

BALL-STEEL,1/4

€ 0.50

670

670B2015
ref: 670

O RING,15MM

€ 1.00
