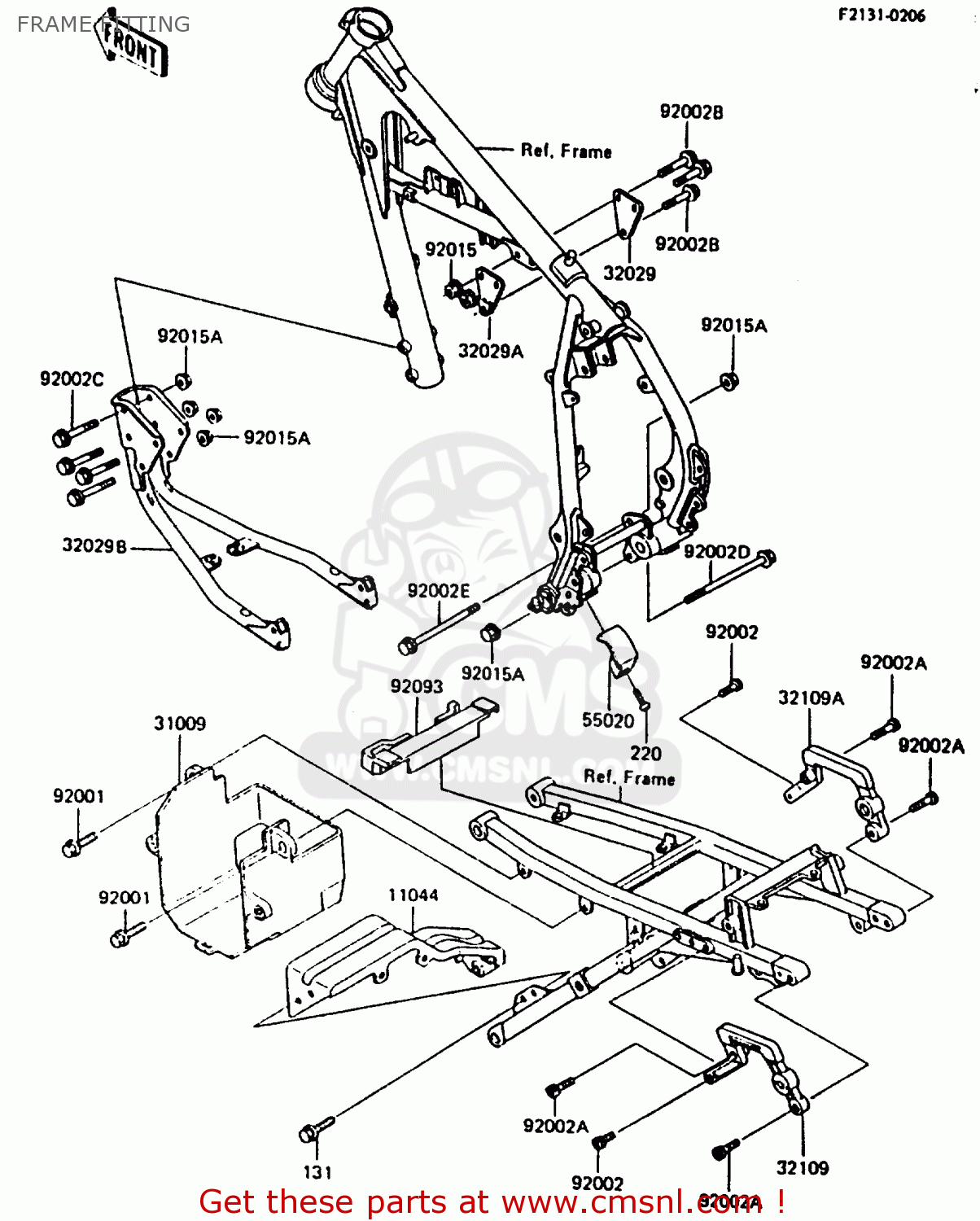

FRAME FITTING

ref

part #

description

quantity

11044

110431921
ref: 11044

BRACKET,BATTERY CASE

€ 28.00

31009

310091051
ref: 31009

CASE-COMP-BATTERY

€ 54.00

32029

320291309
ref: 32029

BRACKET-ENGINE,RH

€ 15.50

32029A

320291334
ref: 32029A

BRACKET-ENGINE,LH

€ 16.00

32029B

320291367
ref: 32029B

BRACKET-ENGINE,FR

€ 101.50

32109

321091105
ref: 32109

GRIP-FRAME,LH

€ 51.50

32109A

321091106
ref: 32109A

GRIP-FRAME,RH

€ 49.00

55020

550201157
ref: 55020

GUARD,CHAIN

€ 23.00

92001

920011771
ref: 92001

BOLT,6X12

€ 2.50

92002

920021175
ref: 92002

BOLT,SOCKET,6X14

€ 3.00

92002A

920021176
ref: 92002A

BOLT,SOCKET,6X25

€ 2.50

92002B

920021182
ref: 92002B

BOLT,8X50

€ 6.00

92002C

920021183
ref: 92002C

BOLT,10X70

€ 7.00

92002D

920021346
ref: 92002D

BOLT,10X185

€ 13.50

92002E

920021346
ref: 92002E

BOLT,10X185

€ 13.50

92015

920151406
ref: 92015

NUT,8MM

€ 3.00

92015A

920151415
ref: 92015A

NUT,10MM

€ 3.00

92093

920931194
ref: 92093

SEAL,AIR FILTER

€ 20.00

131

131B0614
ref: 131

BOLT-FLANGED,6X14

€ 2.00

220

220B0510
ref: 220

SCREW-PAN-CROS,5X10

€ 0.50
