FRONT FORK
KL600B1 1985 EUROPE UK FR GR IT NR SD WK

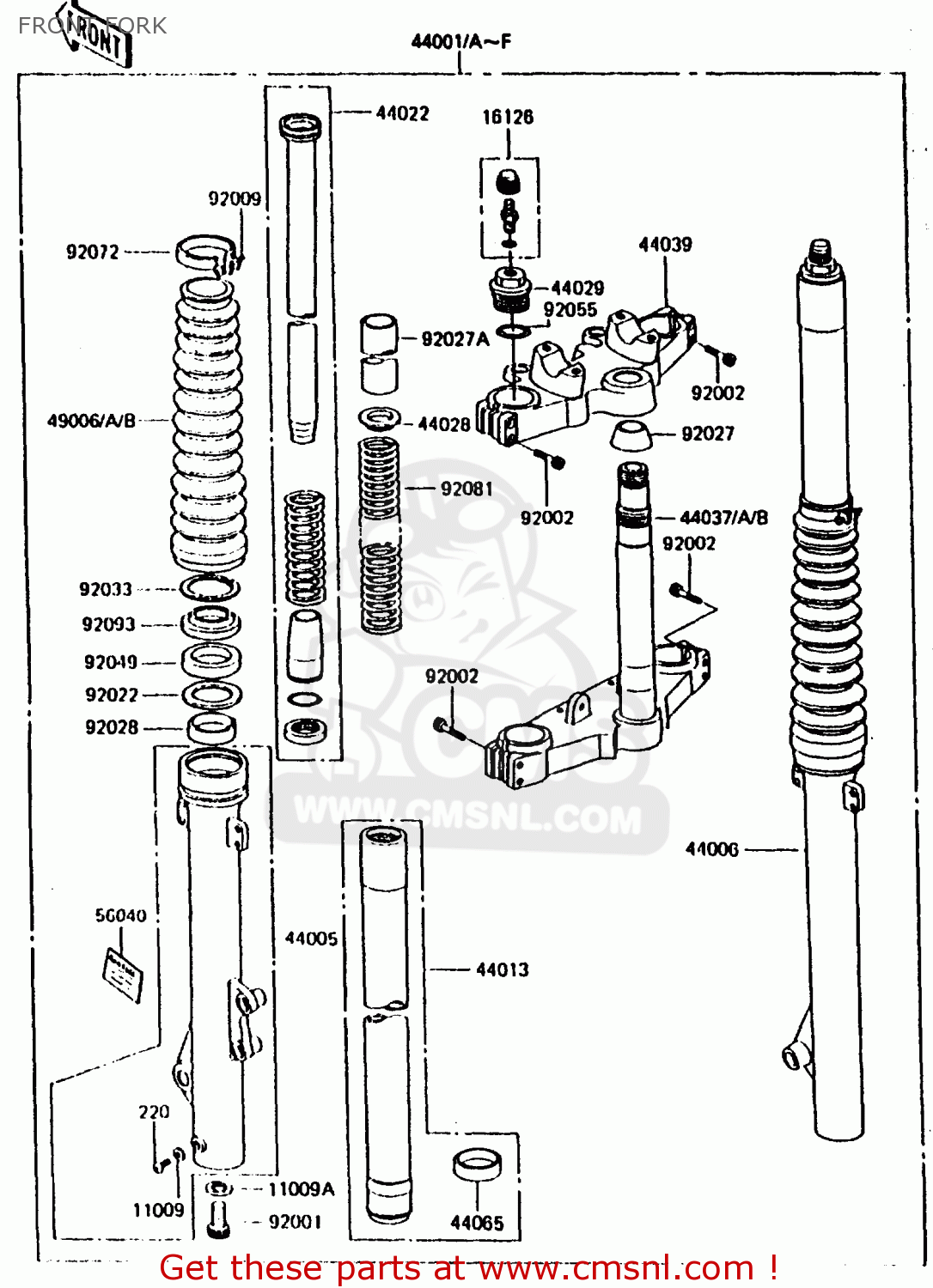

Front fork diagram KL600B1 1985 EUROPE UK FR GR IT NR SD WK
FRONT FORK KL600B1 1985 EUROPE UK FR GR IT NR SD WK
×
prices are in EUR
ref
part #
description
quantity
11009
44045002
ref: 11009
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
11009A
44045057
ref: 11009A
GASKET (NAS)
€ 3.00
16126
161261052
ref: 16126
VALVE,AIR
€ 22.00
44001B
440011571BD
ref: 44001B
IT
FORK-FRONT,BLACK
€ 1,101.50
44001E
440011572BD
ref: 44001E
EU, FR, GR, NR, ST,
FORK-FRONT,BLACK
€ 820.50
44001F
440011573BD
ref: 44001F
SD
FORK-FRONT,BLACK
€ 1,316.00
44005
440051229
ref: 44005
PIPE-LEFT FORK OUTER
€ 177.50
44006
440061229
ref: 44006
PIPE-RIGHT FORK OUTER
€ 289.50
44013
440131227
ref: 44013
PIPE-FORK INNER
€ 165.50
44022
440221177
ref: 44022
CYLINDER-FORK
€ 77.50
44028
440281004
ref: 44028
GUIDE-FORK SPRING
€ 7.50
44029
440291042
ref: 44029
SEAT-FORK SPRING
€ 51.50
44037
440371169
ref: 44037
IT
HOLDER-FORK UNDER
€ 262.50
44037A
440371171
ref: 44037A
EU, FR, GR, NR, ST,
HOLDER-FORK-UNDER
€ 193.00
44037B
440371172
ref: 44037B
SD
HOLDER-FORK-UNDER
€ 193.00
44039
440391101
ref: 44039
1
HOLDER-FORK UPPER
€ 165.50
44065
440651057
ref: 44065
BUSHING,FRON.PIPE
€ 31.50
49006B
490061166BD
ref: 49006B
BOOT,FORK,BLACK
€ 41.00
56040
560401120
ref: 56040
LABEL,FRONT FORK
€ 3.50
92001
44041040
ref: 92001
BOLT-FORK CYLINDER
€ 4.50
92002
920021277
ref: 92002
BOLT,SOCKET,8X32
€ 7.50
92009
920091348
ref: 92009
SCREW
€ 3.50
92022
920221242
ref: 92022
WASHER
€ 5.50
92027
920271791
ref: 92027
COLLAR,UPPER BRACKET
€ 46.00
92027A
920271872
ref: 92027A
COLLAR,L=165
€ 32.00
92028
920281125
ref: 92028
BUSHING
€ 17.00
92033
920331047
ref: 92033
SNAP RING,FORK OUTER
€ 4.00
92049
920491180
ref: 92049
SEAL-OIL,FRONT FORK
€ 14.50
92055
920551050
ref: 92055
RING-O,FORK TOP CAP
€ 4.00
92072
920721171
ref: 92072
BAND,BOOT
€ 6.50
92081
920811871
ref: 92081
SPRING
€ 57.50
92093
920931166
ref: 92093
SEAL,FRONT FORK
€ 12.50
220
220B0408
ref: 220
SCREW-PAN-CROS
€ 0.50
