TALI LAMP
KL600B1 1985 EUROPE UK FR GR IT NR SD WK

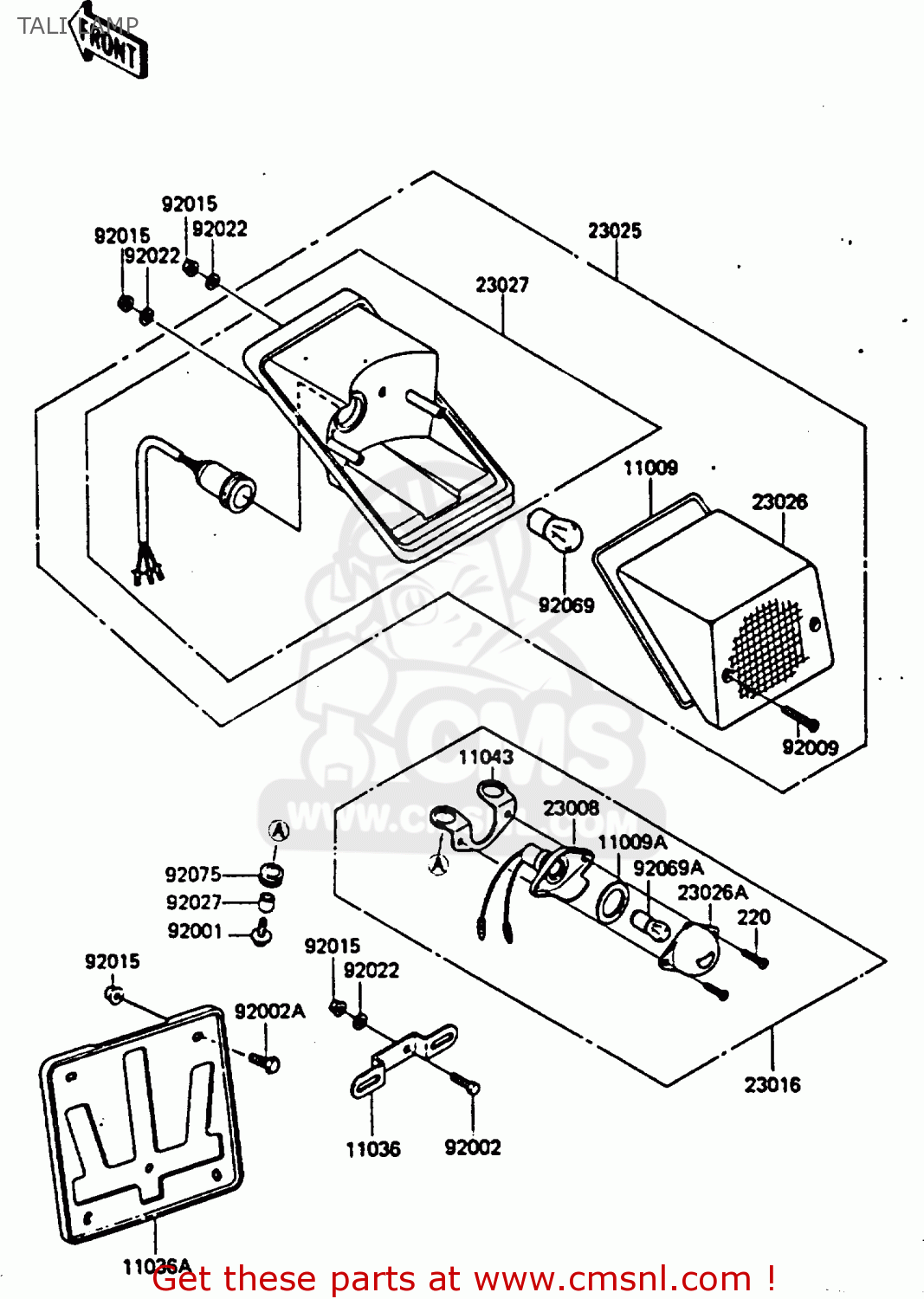

Tali lamp diagram KL600B1 1985 EUROPE UK FR GR IT NR SD WK
TALI LAMP KL600B1 1985 EUROPE UK FR GR IT NR SD WK
×
prices are in EUR
ref
part #
description
quantity
11009
110091371
ref: 11009
GASKET,TAIL LAMP (NAS)
€ 9.00
11009A
110091372
ref: 11009A
GASKET,LICENSE PLATE (NAS)
€ 3.00
11036
110361040
ref: 11036
BRACKET-A,LICENSE PLT
€ 13.00
11036A
110361820
ref: 11036A
IT
BRACKET-A,LICENSE PLA
€ 13.50
11043
110431377
ref: 11043
BRACKET,LICENSE PLATE
€ 7.50
23008
230081205
ref: 23008
SOCKET-ASSY,LICENSE P
€ 8.00
23016
230161052
ref: 23016
LAMP-ASSY,LICENSE PLA
€ 20.50
23025
230251104
ref: 23025
LAMP-TAIL
€ 72.50
23026
230261053
ref: 23026
LENS,TAIL LAMP
€ 58.50
23026A
230261054
ref: 23026A
LENS,LICENSE PLATE LA
€ 7.00
23027
230271053
ref: 23027
BODY-COMP-TAIL LAMP
€ 72.50
92001
920011774
ref: 92001
BOLT,6X22
€ 2.00
92002
920021124
ref: 92002
BOLT,6X16
€ 2.50
92002A
920021132
ref: 92002A
IT
BOLT,6X12
€ 2.50
92009
920091297
ref: 92009
SCREW,TAPPING,4X20
€ 2.50
92015
920151193
ref: 92015
EU, FR, GR, NR, SD,
NUT,FLANGED,6MM
€ 0.50
92015
920151193
ref: 92015
IT
NUT,FLANGED,6MM
€ 0.50
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
92027
92027162
ref: 92027
COLLAR-REAR FENDER
€ 4.50
92069
92069063
ref: 92069
BULB 12V 21/5W
€ 4.50
92069A
920691055
ref: 92069A
BULB,12V 5W
€ 4.00
92075
92075209
ref: 92075
DAMPER RUBBER
€ 3.00
220
220D0410
ref: 220
SCREW-PAN-CROS
€ 2.00
