GEAR CHANGE MECHANISM

KL600B1 1985 EUROPE UK FR GR IT NR SD WK

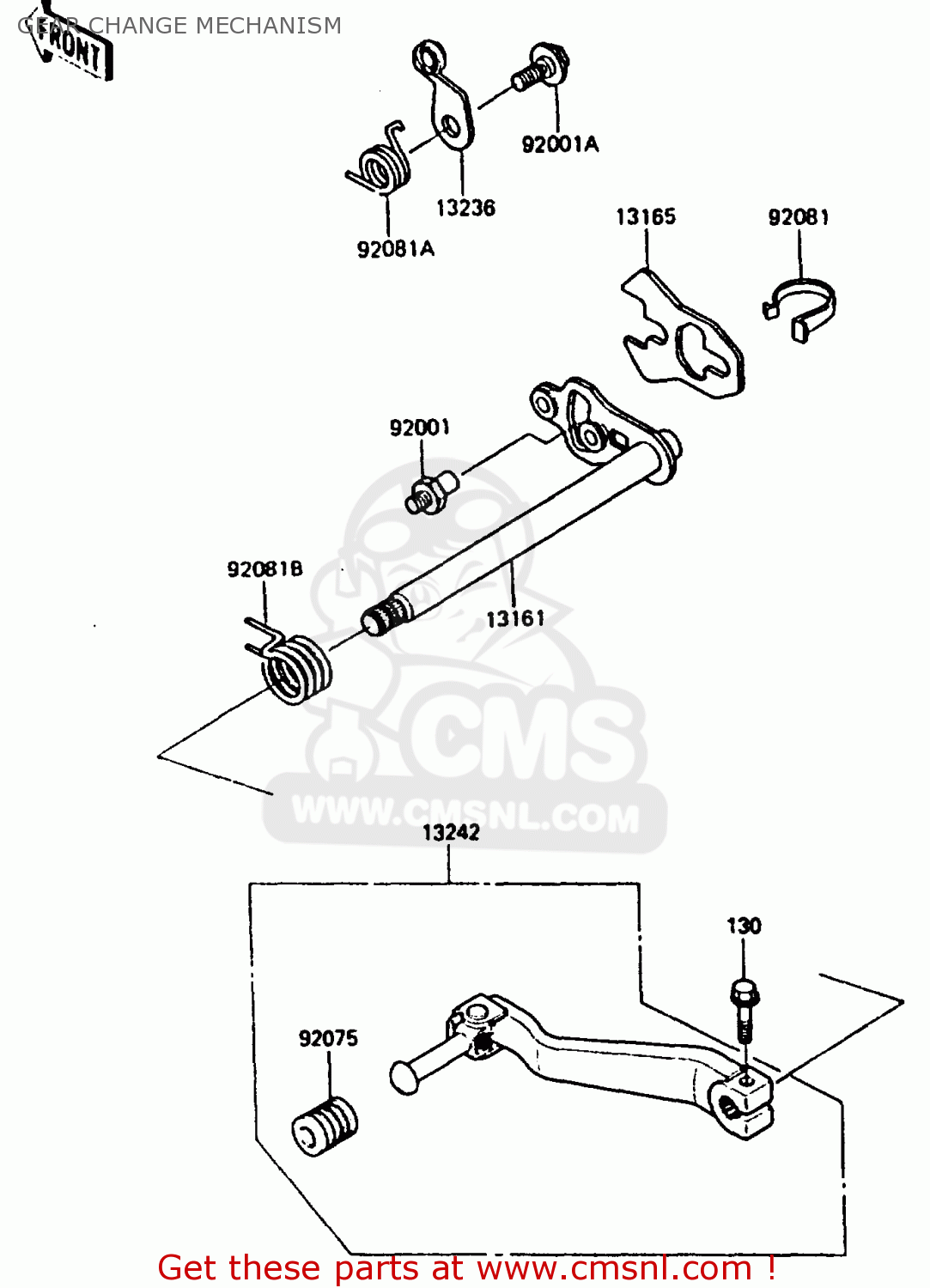

Gear change mechanism diagram KL600B1 1985 EUROPE UK FR GR IT NR SD WK

prices are in EUR

ref

part #

description

quantity

13161

131611104
ref: 13161

LEVER-COMP-CHANGE SHA

€ 64.50

13165

131651103
ref: 13165

PAWL

€ 9.50

13236

132361101
ref: 13236

LEVER-COMP

€ 6.00

13242

132421233
ref: 13242

LEVER-ASSY-CHANGE,PED

€ 47.00

92001

920011401
ref: 92001

BOLT,RETURN SPRING

€ 3.00

92001A

920011715
ref: 92001A

BOLT

€ 7.00

92075

920751944
ref: 92075

DAMPER,CHANGE PEDAL

€ 6.00

92081

920811493
ref: 92081

SPRING,CHANGE LEVER

€ 4.50

92081A

920811496
ref: 92081A

SPRING

€ 6.00

92081B

920811750
ref: 92081B

SPRING,CHANGE PEDAL R

€ 7.50

130

130B0620
ref: 130

BOLT,HEX HEAD,6X20

€ 2.50

GEAR CHANGE MECHANISM

all assemblies
