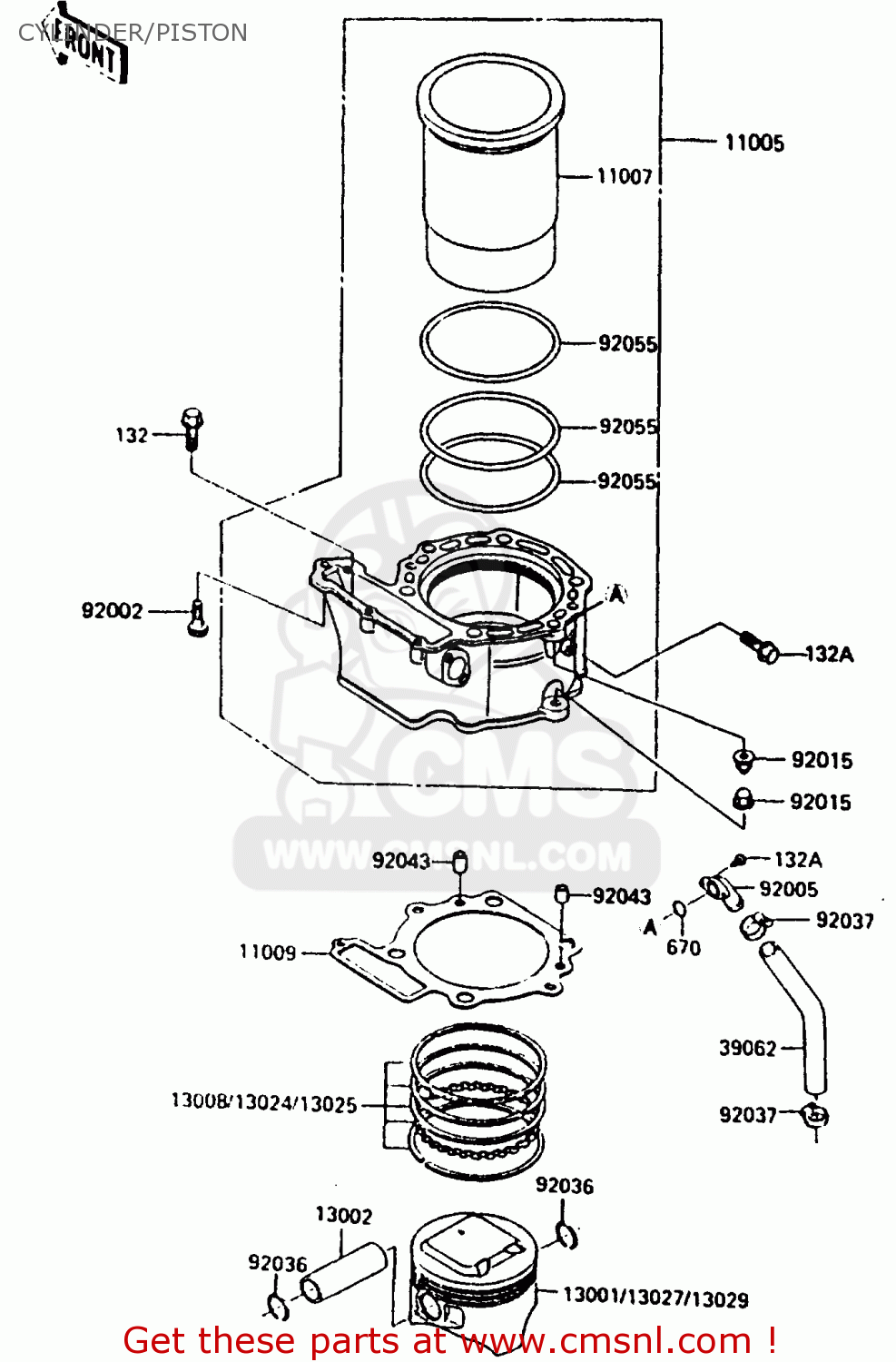

CYLINDER/PISTON

ref

part #

description

quantity

11005

110051423
ref: 11005

CYLINDER-ENGINE

€ 573.50

11007

110071062
ref: 11007

LINER-CYLINDER

€ 118.00

11009

110091463
ref: 11009

GASKET,CLUTCH COVER (MCA)

€ 17.50

13001

130011211
ref: 13001

PISTON-ENGINE,STD

€ 119.00

13002

130021052
ref: 13002

PIN-PISTON

€ 19.50

13008

130085067
ref: 13008

RING-SET-PISTON

€ 89.00

13024

130241073
ref: 13024

RING-SET-PISTON LL,O/

€ 73.50

13025

130251082
ref: 13025

RING-SET-PISTON L,O/S

€ 105.50

13027

130271136
ref: 13027

PISTON-ENGINE LL,O/S

€ 167.50

13029

130291141
ref: 13029

PISTON-ENGINE L,O/S 0

€ 148.50

39062

390621065
ref: 39062

HOSE-COOLING,19.5X25X

€ 15.00

92002

920021409
ref: 92002

BOLT,8X35

€ 3.50

92005

920051122
ref: 92005

FITTING

€ 14.50

92015

920151174
ref: 92015

NUT,CAP,8MM,BLACK

€ 3.00

92036

920361051
ref: 92036

RING-SNAP,PISTON PIN

€ 2.00

92037

920371589
ref: 92037

CLAMP,COOLING HOSE

€ 13.00

92043

920431263
ref: 92043

PIN,DOWEL,6.2X8X14

€ 0.50

92055

920551220
ref: 92055

RING-O

€ 8.50

132

132G0625
ref: 132

BOLT-FLANGED-SMALL

€ 3.00

132A

132J0612
ref: 132A

BOLT-FLANGED-SMALL

€ 2.50

670

670B2018
ref: 670

O RING,18MM

€ 1.00
