REAR HUB
KL600A1 1984 EUROPE UK FR GR IT SD ST WG

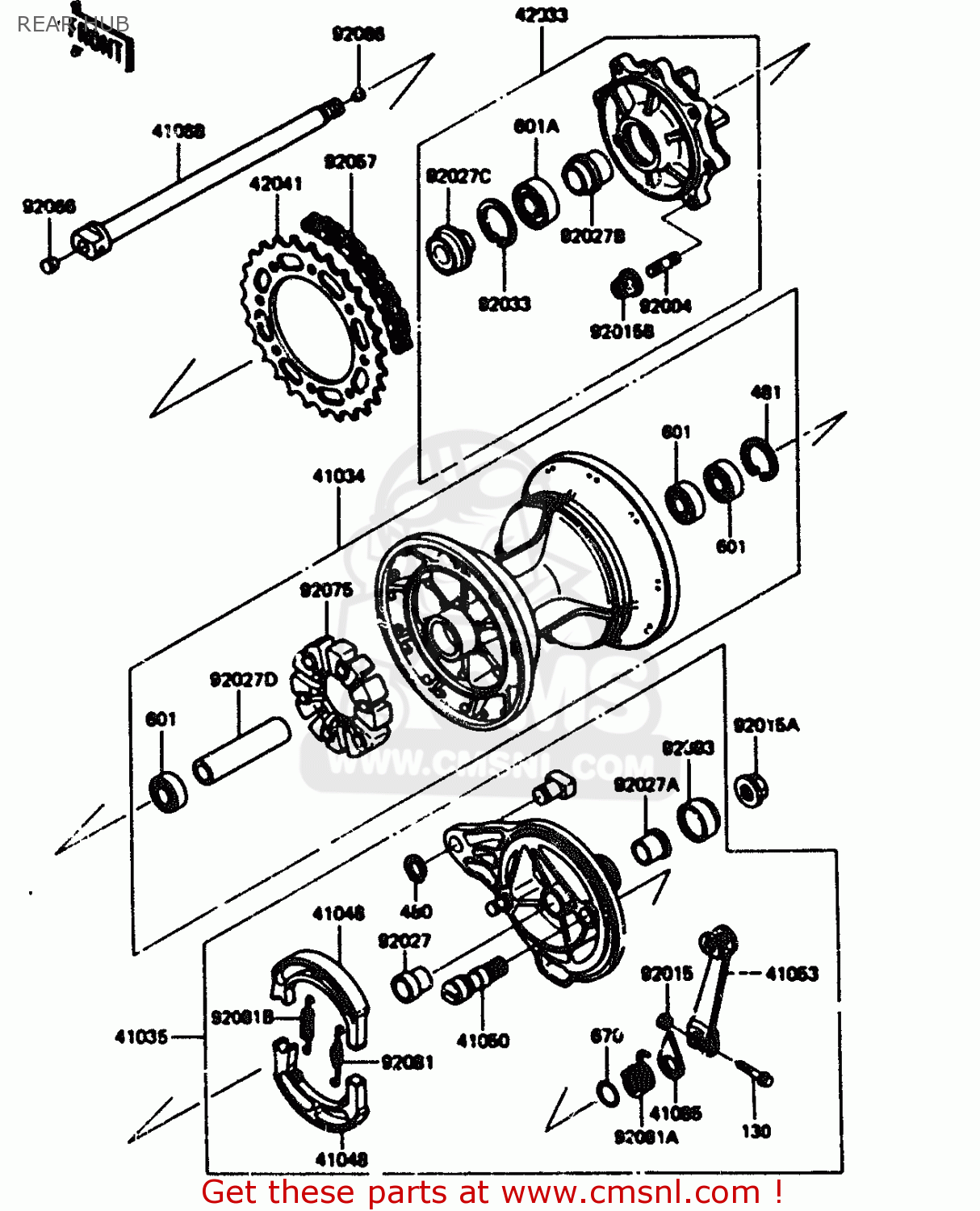

Rear hub diagram KL600A1 1984 EUROPE UK FR GR IT SD ST WG
REAR HUB KL600A1 1984 EUROPE UK FR GR IT SD ST WG
×
prices are in EUR
ref
part #
description
quantity
41034
410341107
ref: 41034
DRUM-ASSY,REAR BRAKE
€ 386.50
41035
410351155
ref: 41035
PANEL-ASSY-BRAKE,RR
€ 276.50
41048
410481025
ref: 41048
SHOE-BRAKE,RR (MCA)
€ 26.00
41050
410501051
ref: 41050
CAM-BRAKE
€ 17.50
41053
410531051
ref: 41053
LEVER-BRAKE CAM
€ 55.00
41068
410681160
ref: 41068
AXLE,RR,L=310
€ 40.50
41085
41085005
ref: 41085
INDICATOR,FRONT BRAK
€ 9.00
42033
420331106
ref: 42033
COUPLING-ASSY,REAR HU
€ 197.00
42041
420411185
ref: 42041
SPROCKET-HUB,43T
€ 29.50
92004
920041125
ref: 92004
ATUD,8X18
€ 2.50
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92015A
920151316
ref: 92015A
NUT,FLANGED,16MM
€ 16.50
92015B
920151397
ref: 92015B
NUT,FLANGED,8MM
€ 2.50
92027
920271689
ref: 92027
COLLAR,REAR BRAKE PAN
€ 13.50
92027A
920271690
ref: 92027A
COLLAR,REAR BRAKE PAN
€ 11.00
92027B
920271770
ref: 92027B
COLLAR,REAR HUB COUPL
€ 14.50
92027C
920271771
ref: 92027C
COLLAR,REAR HUB COUPL
€ 12.00
92027D
920271772
ref: 92027D
COLLAR,REAR BRAKE DRU
€ 9.50
92033
920331041
ref: 92033
CIRCLIP,42MM
€ 4.00
92057
920571177
ref: 92057
CHAIN,DRIVE,EK520LDOX
€ 71.00
92066
920661182
ref: 92066
PLUG
€ 2.50
92075
920751068
ref: 92075
DAMPER,SHOCK,RR HUB
€ 34.50
92081
920811550
ref: 92081
SPRING,BRAKE SHOE
€ 6.00
92081A
920811615
ref: 92081A
SPRING,BRAKE CAM LEVE
€ 13.00
92081B
920811766
ref: 92081B
SPRING,BRAKE SHOE
€ 5.50
92093
920931004
ref: 92093
OIL SEAL
€ 3.50
130
130G0630
ref: 130
BOLT, FLANGED, 6X30
€ 0.50
480
480J1400
ref: 480
CIRCLIP-TYPE-C,14MM
€ 3.00
481
481J3500
ref: 481
CIRCLIP-TYPE-C,35MM
€ 1.00
601
601B60030
ref: 601
BEARING-BALL, #6003UC3
€ 0.00
601A
601B60040
ref: 601A
BEARING-BALL, #6004UC3
€ 0.00
670
670B2015
ref: 670
O RING,15MM
€ 1.00
