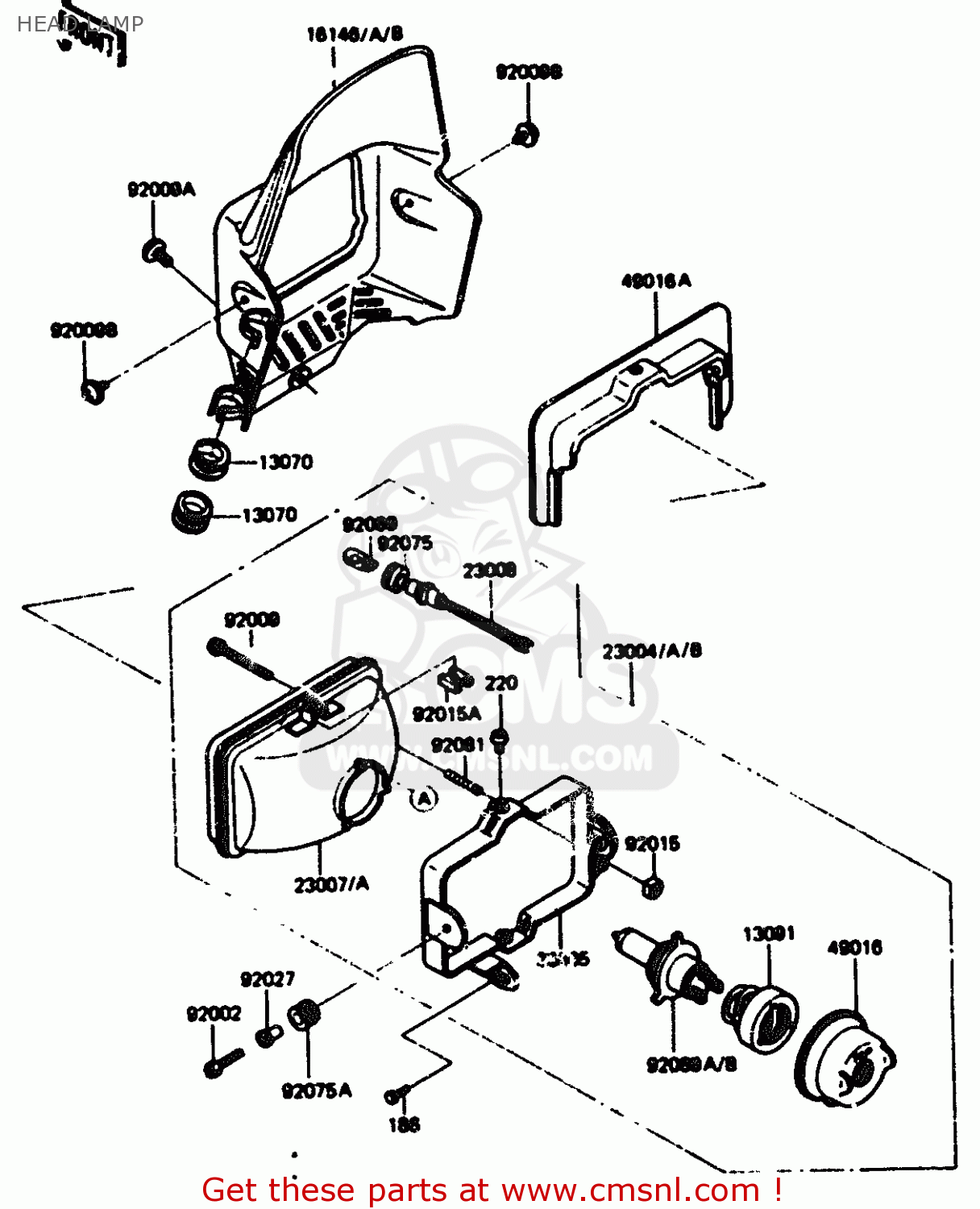

HEAD LAMP

ref

part #

description

quantity

13070

130701107
ref: 13070

GUIDE,BRAKE HOSE

€ 6.50

13091

130911124
ref: 13091

HOLDER,SOCKET

€ 9.00

16146

1614650056F
ref: 16146
EU, FR, GR, IT, SD,

COVER-ASSY,HEAD LAMP,

€ 34.50

16146A

1614650056W
ref: 16146A
EU, FR, GR, SD, ST,

COVER-ASSY,HEAD LAMP,

€ 86.00

16146B

1614650066B
ref: 16146B
IT, UK, WG

COVER-ASSY,HEAD LAMP,

€ 83.00

23004

230041157
ref: 23004
EU, GR, IT, SD, ST,

LAMP-HEAD

€ 336.50

23004A

230041158
ref: 23004A
FR

LAMP-HEAD

€ 348.50

23004B

230041159
ref: 23004B
UK

LAMP-HEAD

€ 346.00

23005

230051052
ref: 23005

BODY-COMP-HEAD LAMP

€ 27.50

23007

230071103
ref: 23007
EU, FR, GR, IT, SD,

LENS-COMP,HEAD LAMP

€ 88.50

23007A

230071104
ref: 23007A
UK

LENS-COMP,HEAD LAMP

€ 95.50

23008

23008038
ref: 23008

SOCKET-ASSY,PARKING L

€ 7.50

49016

490161037
ref: 49016

COVER-SEAL,SOCKET

€ 7.50

49016A

490161101
ref: 49016A

COVER-SEAL,HEAD LAMP

€ 21.00

92002

920021319
ref: 92002

BOLT

€ 4.50

92009

920091065
ref: 92009

SCREW,4MM

€ 3.00

92009A

920091287
ref: 92009A

SCREW,6X14

€ 1.50

92009B

920091294
ref: 92009B

SCREW,6X8

€ 2.50

92015

23020018
ref: 92015

NUT,4MM,FOCUS ADJUST

€ 3.00

92015A

920151354
ref: 92015A

NUT,5MM

€ 3.50

92027

920271134
ref: 92027

COLLAR,FUEL TANK FITT

€ 7.00

92069

ref: 92069
(LOCAL PROCUREMENT I

92069A

920691002
ref: 92069A
EU, GR, IT, SD, ST,

BULB,12V-60155W

€ 15.00

92069B

ref: 92069B
FR, (LOCAL PROCUREME

92075

23066008
ref: 92075

DAMPER,PARKING LAMP

€ 3.00

92075A

920751569
ref: 92075A

DAMPER,HEAD LAMP FITT

€ 3.50

92081

23014005
ref: 92081

SPRING-FOCUS ADJUST

€ 2.50

186

186B0614
ref: 186

BOLT-UPSET-WP

€ 0.50

220

220B0508
ref: 220

SCREW-PAN-CROS,5X8

€ 0.50

all assemblies
