CRANKCASE
KL600A1 1984 EUROPE UK FR GR IT SD ST WG

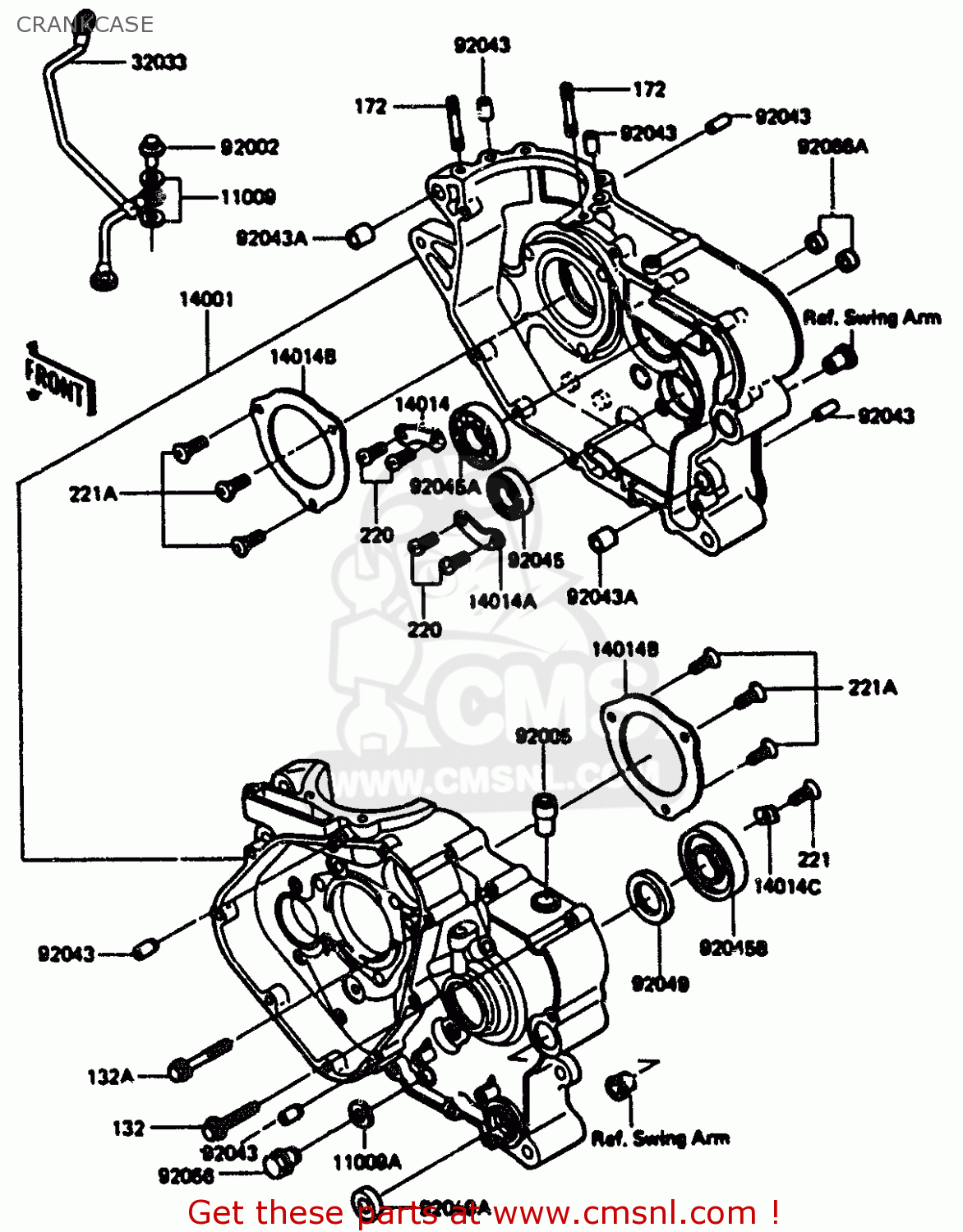

Crankcase diagram KL600A1 1984 EUROPE UK FR GR IT SD ST WG
CRANKCASE KL600A1 1984 EUROPE UK FR GR IT SD ST WG
×
prices are in EUR
ref
part #
description
quantity
11009
110091105
ref: 11009
GASKET,10X14.5X1.5 (NAS)
€ 4.00
11009A
92065097
ref: 11009A
GASKET,DRAIN PLUG BOL (NAS)
€ 1.00
14001
140015165
ref: 14001
SET-CRANKCASE
€ 682.00
14014
14014037
ref: 14014
PLATE-POSITION
€ 2.50
14014A
140141015
ref: 14014A
PLATE-POSITION
€ 3.50
14014B
140141051
ref: 14014B
PLATE-POSITION
€ 26.00
14014C
140141057
ref: 14014C
PLATE-POSITION
€ 2.50
32033
320331160
ref: 32033
PIPE
€ 63.50
92002
920021170
ref: 92002
BOLT,BANJO,10X25
€ 6.50
92005
14067006
ref: 92005
BREATHER JOINT
€ 14.00
92043
92042007
ref: 92043
PIN-DOWEL
€ 4.00
92043A
92042032
ref: 92043A
PIN,DOWEL,14MM
€ 3.00
92045
92045036
ref: 92045
BEARING-BALL,#6905
€ 29.00
92045A
920451105
ref: 92045A
BEARING-BALL,TMB205
€ 25.00
92045B
920451127
ref: 92045B
BEARING-BALL,TM-SX059
€ 47.00
92049
920491159
ref: 92049
SEAL-OIL,TC32457
€ 8.00
92049A
92050082
ref: 92049A
OIL SEAL,CHANGE SHAFT
€ 5.50
92066
92066053
ref: 92066
BOLT,DRAIN PLUG
€ 4.00
92066A
92066064
ref: 92066A
PLUG
€ 4.00
132
132W0630
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
132A
132W0650
ref: 132A
BOLT-FLANGED-SMALL
€ 3.00
172
172G0822
ref: 172
BOLT-STUD,8X22
€ 1.50
220
220B0612
ref: 220
SCREW-PAN HEAD,6X12
€ 1.00
221
221B0612
ref: 221
SCREW-CNTSNK HD,6X12
€ 1.50
221A
221B0616
ref: 221A
SCREW-CNTSNK HD,6X16
€ 0.50
