FRONT FORK
KL600A1 1984 EUROPE UK FR GR IT SD ST WG

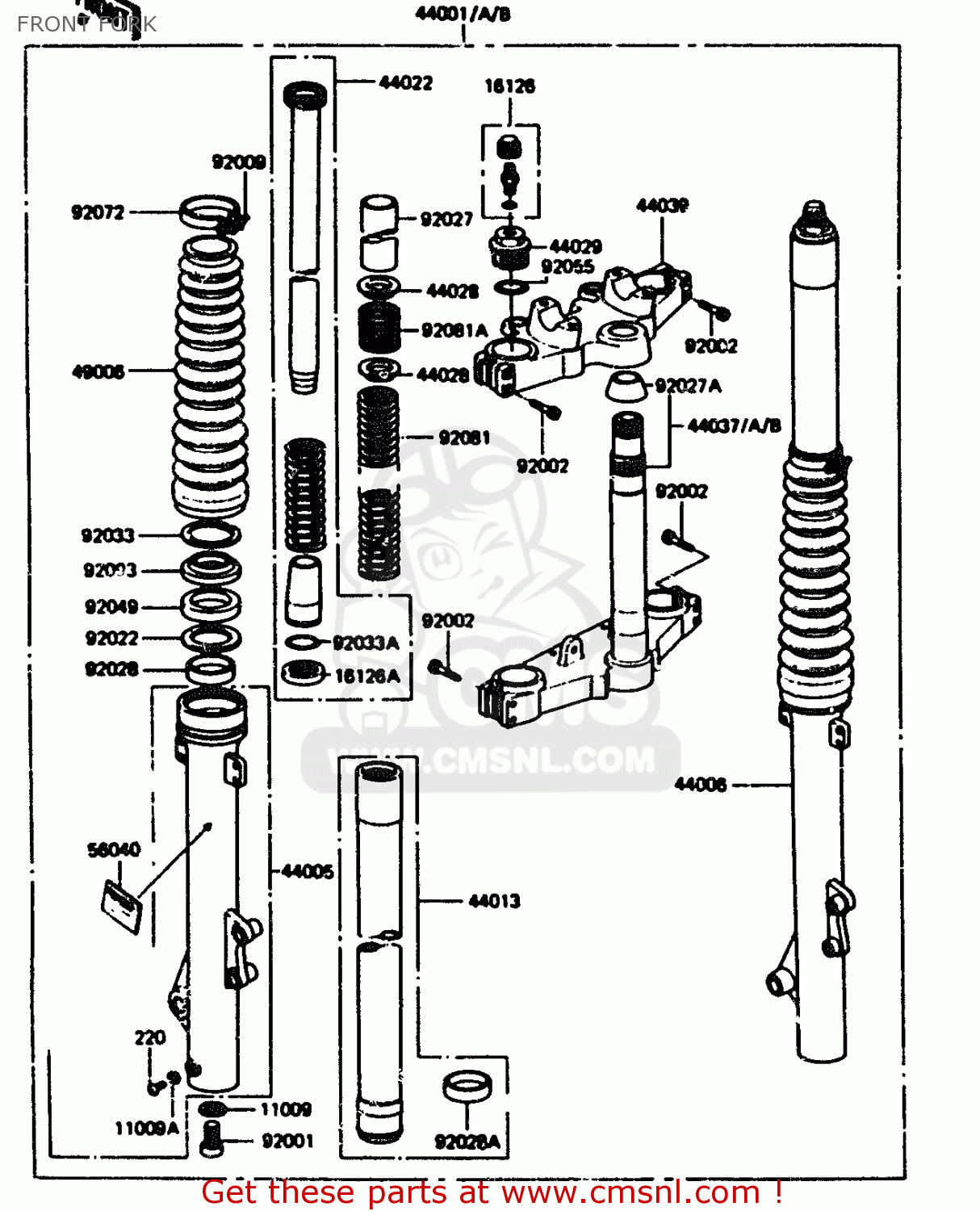

Front fork diagram KL600A1 1984 EUROPE UK FR GR IT SD ST WG
FRONT FORK KL600A1 1984 EUROPE UK FR GR IT SD ST WG
×
prices are in EUR
ref
part #
description
quantity
11009
110091127
ref: 11009
GASKET,FORK CYLID BOL (NAS)
€ 3.00
11009A
44045002
ref: 11009A
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
16126
161261052
ref: 16126
VALVE,AIR
€ 22.00
16126A
161261113
ref: 16126A
VALVE,FORK CYLINDER
€ 87.00
44001
440011511
ref: 44001
EU, FR, GR, ST, UK,
FORK-FRONT
€ 943.00
44001A
440011548
ref: 44001A
SD
FORK-FRONT
€ 943.00
44001B
440011555
ref: 44001B
IT
FORK-FRONT
€ 1,217.50
44005
440051215
ref: 44005
PIPE-LEFT FORK OUTER
€ 188.50
44006
440061214
ref: 44006
PIPE-RIGHT FORK OUTER
€ 222.00
44013
440131218
ref: 44013
PIPE FORK INNER
€ 159.50
44022
440221166
ref: 44022
CYLINDER FORK
€ 81.50
44028
440281003
ref: 44028
GUIDE-FORK SPRING
€ 7.50
44029
440291042
ref: 44029
SEAT-FORK SPRING
€ 51.50
44037
440371169
ref: 44037
IT
HOLDER-FORK UNDER
€ 262.50
44037A
440371171
ref: 44037A
EU, FR, GR, ST, UK,
HOLDER-FORK-UNDER
€ 193.00
44037B
440371172
ref: 44037B
SD
HOLDER-FORK-UNDER
€ 193.00
44039
440391101
ref: 44039
HOLDER-FORK UPPER
€ 165.50
49006
490061166
ref: 49006
BOOT,FORK
€ 41.00
56040
560401120
ref: 56040
LABEL,FRONT FORK
€ 3.50
92001
920011309
ref: 92001
BOLT,FORK CYLINDER
€ 4.50
92002
920021277
ref: 92002
BOLT,SOCKET,8X32
€ 7.50
92009
920091348
ref: 92009
SCREW
€ 3.50
92022
920221242
ref: 92022
WASHER
€ 5.50
92027
920271790
ref: 92027
COLLAR,FORK SPRING
€ 18.50
92027A
920271791
ref: 92027A
COLLAR,UPPER BRACKET
€ 46.00
92028
920281125
ref: 92028
BUSHING
€ 17.00
92028A
920281126
ref: 92028A
BUSHING-FRONT FORK,IN
€ 31.50
92033
920331047
ref: 92033
SNAP RING,FORK OUTER
€ 4.00
92033A
920331175
ref: 92033A
RING-SNAP,FORK CYLIND
€ 7.00
92049
920491180
ref: 92049
SEAL-OIL,FRONT FORK
€ 14.50
92055
920551050
ref: 92055
RING-O,FORK TOP CAP
€ 4.00
92072
920721171
ref: 92072
BAND,BOOT
€ 6.50
92081
920811722
ref: 92081
SPRING,FRONT FORK
€ 40.00
92081A
920811734
ref: 92081A
SPRING FRONT FORK
€ 4.50
92093
920931166
ref: 92093
SEAL,FRONT FORK
€ 12.50
220
220B0408
ref: 220
SCREW-PAN-CROS
€ 0.50
