FRONT HUB

KL600A1 1984 EUROPE UK FR GR IT SD ST WG

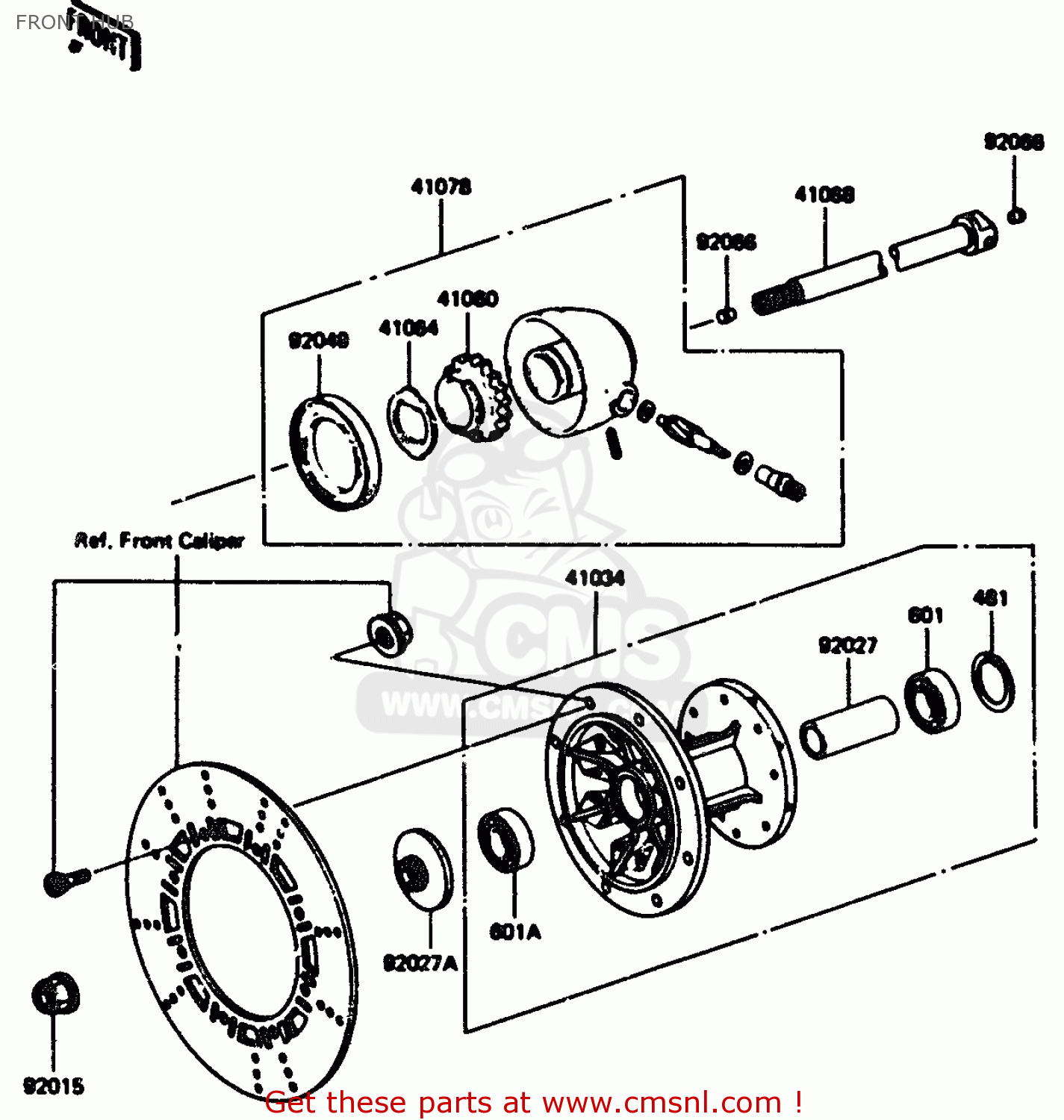

Front hub diagram KL600A1 1984 EUROPE UK FR GR IT SD ST WG

prices are in EUR

ref

part #

description

quantity

41034

410341106
ref: 41034

DRUM-ASSY,FRONT BRAKE

€ 330.00

41060

410601101
ref: 41060

GEAR-METER SCREW,24T

€ 27.00

41064

410641051
ref: 41064

RECEIVER-SPEEDOMETER

€ 8.00

41068

410681159
ref: 41068

AXLE,FR,L=230

€ 35.00

41078

410781051
ref: 41078

CASE-ASSY-METER GEAR

€ 103.00

92015

920151401
ref: 92015

NUT,FLANGED,14MM

€ 7.50

92027

920271683
ref: 92027

COLLAR,FRONT BRAKE DR

€ 28.50

92027A

920271694
ref: 92027A

COLLAR,FRONT AXLE,L=2

€ 11.50

92049

920491172
ref: 92049

SEAL-OIL,METER GEAR C

€ 12.00

92066

920661181
ref: 92066

PLUG

€ 2.00

481

481J3500
ref: 481

CIRCLIP-TYPE-C,35MM

€ 1.00

601

601B62020
ref: 601

BEARING-BALL, #6202UC3

€ 0.00

601A

601B62030
ref: 601A

BEARING-BALL, #6203LUC3/2A

€ 10.50

FRONT HUB

all assemblies
