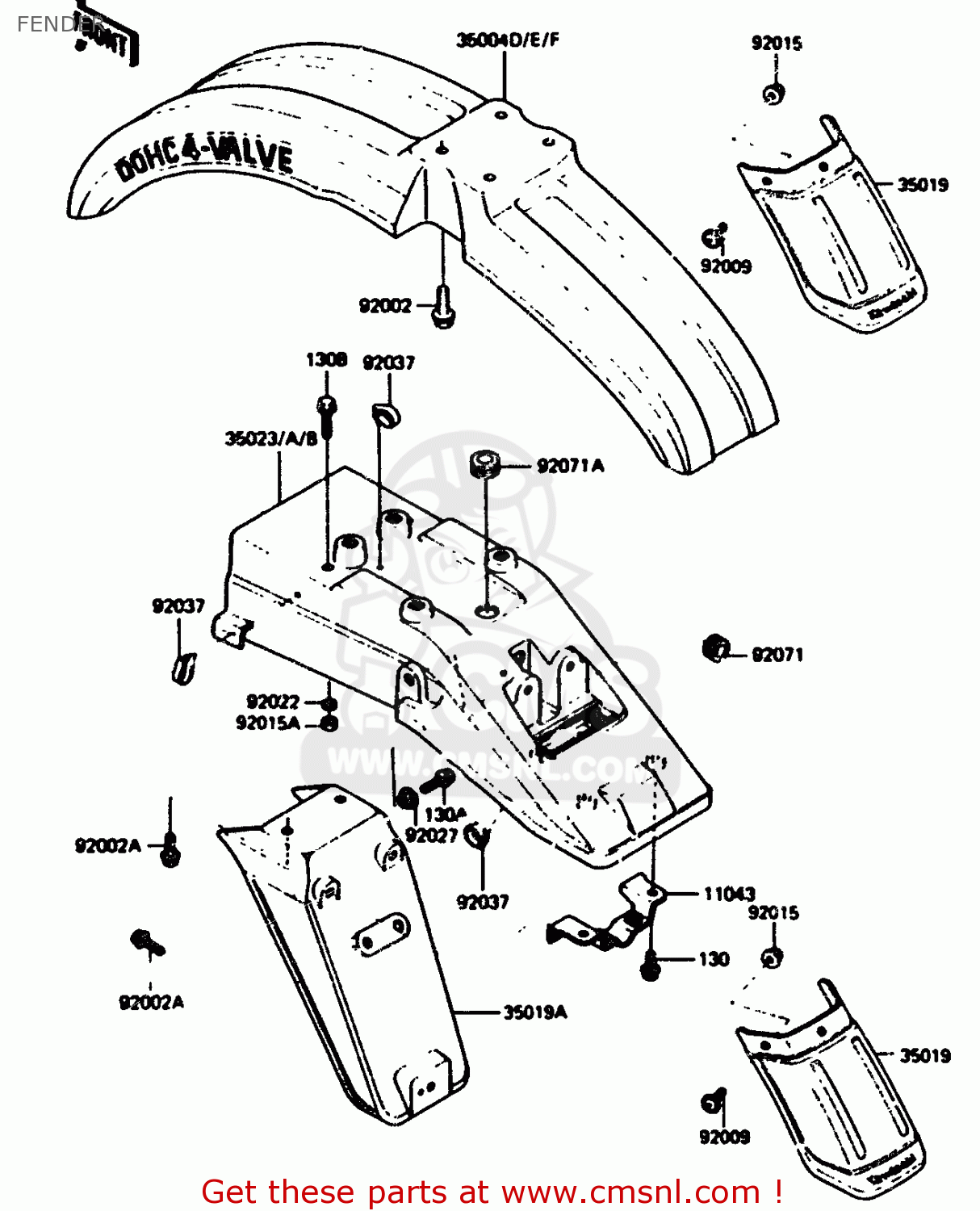

FENDER

ref

part #

description

quantity

11043

110431326
ref: 11043

BRACKET,REAR FLAP

€ 10.50

35004D

3500450376W
ref: 35004D
EU, FR, GR, SD, ST,

FENDER-FRONT

€ 73.00

35004E

3500450386B
ref: 35004E
IT, UK, WG

FENDER-FRONT

€ 75.50

35004F

3500450396F
ref: 35004F
EU, FR, GR, IT, SD,

FENDER-FRONT,P.WHITE

€ 72.00

35019

350191002
ref: 35019
ST

FLAP,FENDER,FR

€ 11.50

35019A

350191103
ref: 35019A

FLAP,REAR FENDER

€ 23.00

35023

3502311016B
ref: 35023
IT, UK, WG

FENDER-REAR,RR,S.RED

€ 59.50

35023A

3502311016F
ref: 35023A
EU, FR, GR, IT, SD,

FENDER-REAR,RR,P.WHIT

€ 57.00

35023B

3502311016W
ref: 35023B
EU, FR, GR, SD, ST,

FENDER-REAR,RR,L.GREE

€ 58.00

92002

920021187
ref: 92002

BOLT,6X16

€ 2.50

92002A

920021188
ref: 92002A

BOLT,6X16

€ 3.00

92009

920091308
ref: 92009
ST

SCREW,6X14

€ 2.00

92015

920151193
ref: 92015
ST

NUT,FLANGED,6MM

€ 0.50

92015A

920151367
ref: 92015A

NUT,FLANGED,6MM

€ 0.50

92022

920221557
ref: 92022

WASHER,6.5X20X1.6

€ 1.00

92027

920271794
ref: 92027

COLLAR

€ 2.50

92037

920371163
ref: 92037

CLAMP,HARNESS,REAR

€ 4.50

92071

92071019
ref: 92071

GROMMET,10MM

€ 2.50

92071A

920711027
ref: 92071A

GROMMET,AIR CLEANER

€ 3.00

130

130D0608
ref: 130

BOLT-FLANGED

€ 0.50

130A

130D0616
ref: 130A

BOLT-FLANGED

€ 0.50

130B

130D0620
ref: 130B

BOLT-FLANGED

€ 0.50
