MUFFLER
KL600A1 1984 EUROPE UK FR GR IT SD ST WG

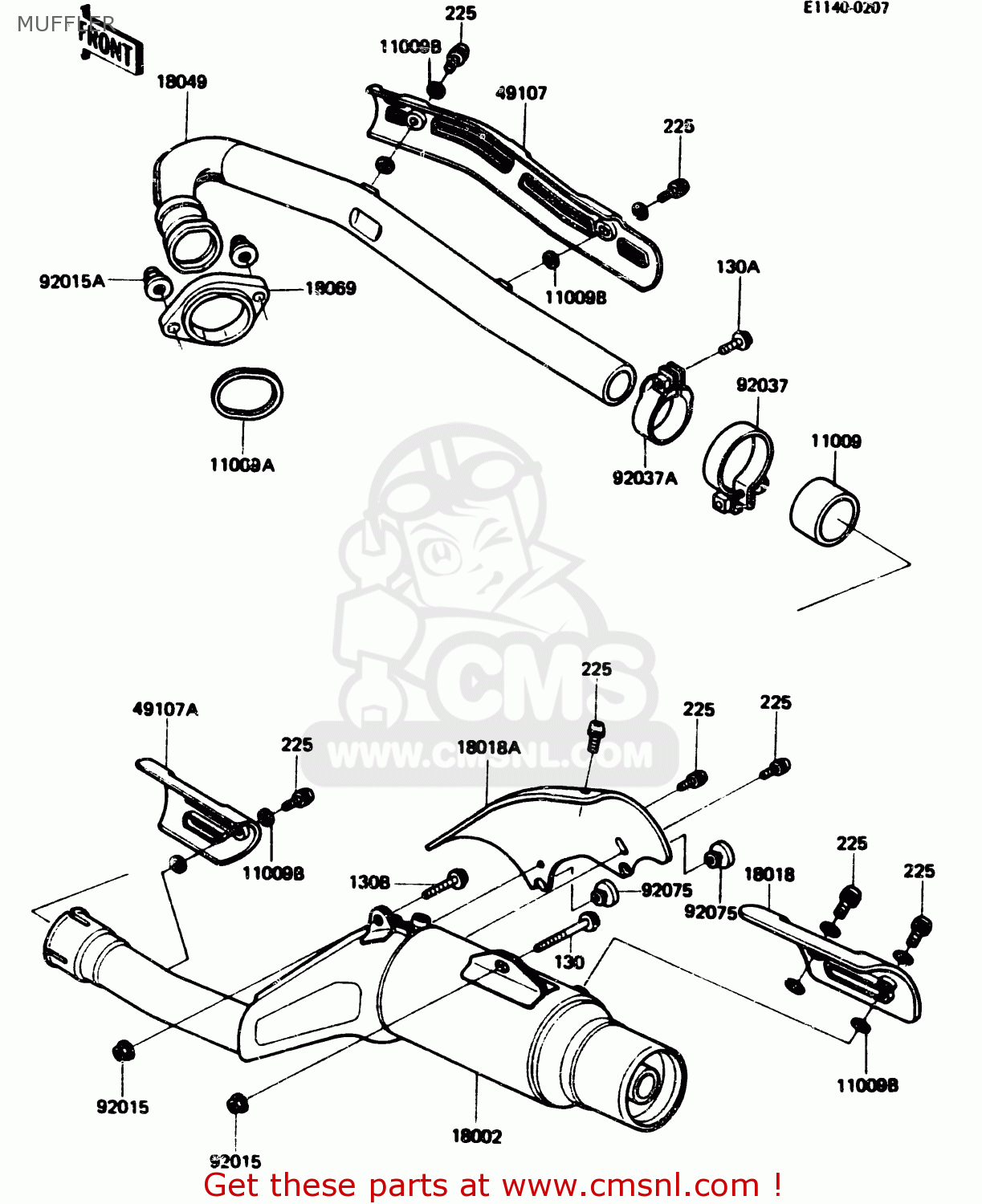

Muffler diagram KL600A1 1984 EUROPE UK FR GR IT SD ST WG
MUFFLER KL600A1 1984 EUROPE UK FR GR IT SD ST WG
×
prices are in EUR
ref
part #
description
quantity
11009
110091104
ref: 11009
GASKET,MUFFLER (MCA)
€ 20.50
11009A
110091374
ref: 11009A
GASKET,EXHAUST PIPE H (NAS)
€ 8.50
11009B
110091451
ref: 11009B
GASKET,MUFFLER COVER (MCA)
€ 2.50
18002
180021454
ref: 18002
BODY-COMP-MUFFLER
€ 390.50
18018
180181053
ref: 18018
PLATE-HEAT GUARD
€ 12.00
18018A
180181060
ref: 18018A
PLATE-HEAT GUARD
€ 25.50
18049
180491267
ref: 18049
PIPE-EXHAUST
€ 104.00
18069
180691063
ref: 18069
HOLDER-EXHAUST PIPE
€ 21.50
49107
491071051
ref: 49107
COVER-EXHAUST PIPE,FR
€ 19.00
49107A
491071052
ref: 49107A
COVER-EXHAUST PIPE,RR
€ 29.50
92015
920151143
ref: 92015
NUT,8MM
€ 0.50
92015A
920151370
ref: 92015A
NUT,CAP,8MM
€ 3.00
92037
920371475
ref: 92037
CLAMP,51.4MM
€ 19.50
92037A
920371571
ref: 92037A
CLAMP
€ 9.00
92075
92075005
ref: 92075
DAMPER
€ 2.50
130
130G0855
ref: 130
BOLT-FLANGED,8X55
€ 1.50
130A
130J0825
ref: 130A
BOLT-FLANGED,8X25,BLA
€ 2.00
130B
130J0840
ref: 130B
BOLT-FLANGED,8X40
€ 3.00
225
225C0612
ref: 225
SCREW-PAN-WSP-CROS
€ 2.50
