WATER PUMP

KL250D2 1985 EUROPE UK FR GR IT SD ST

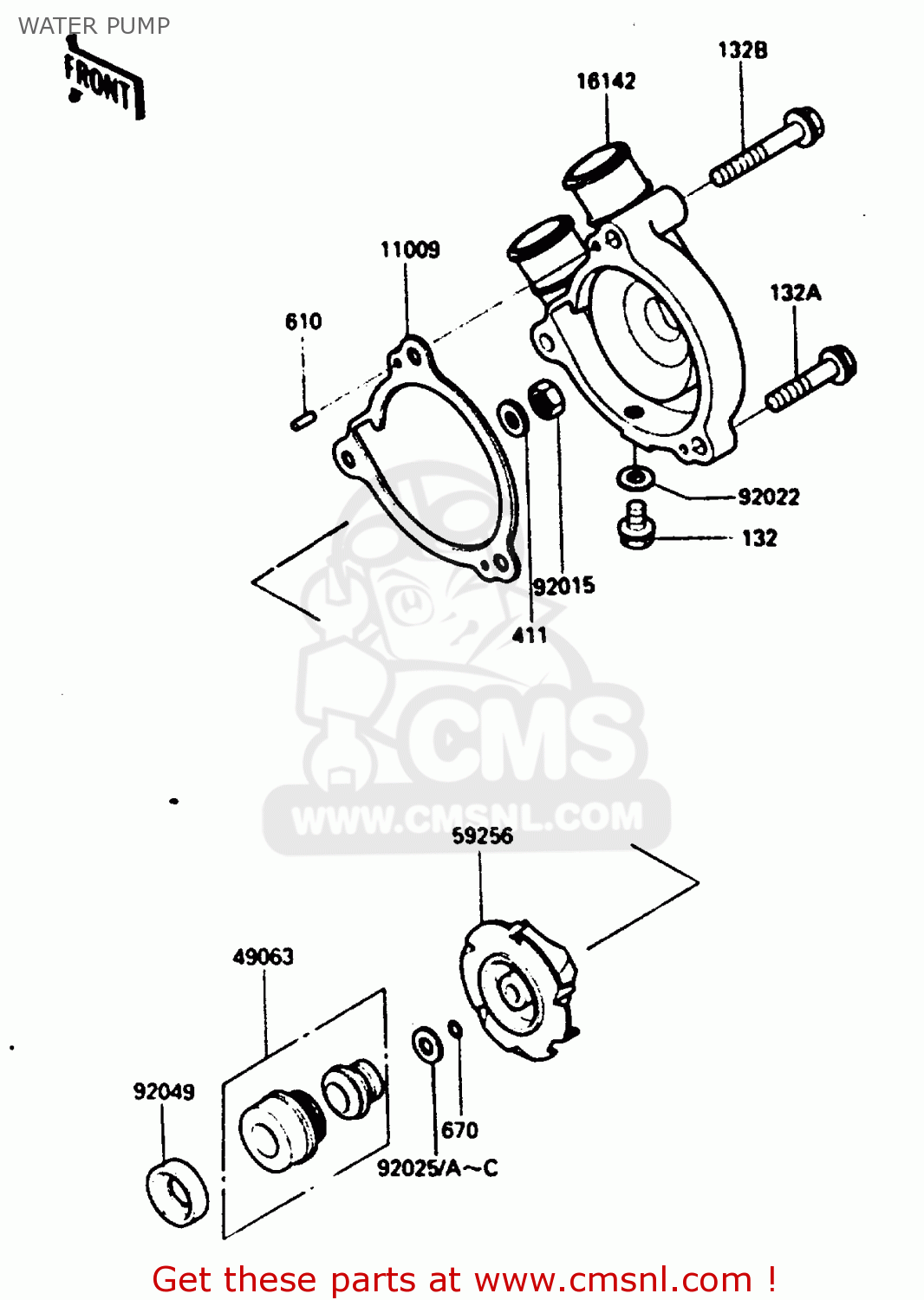

Water pump diagram KL250D2 1985 EUROPE UK FR GR IT SD ST

prices are in EUR

ref

part #

description

quantity

11009

110091461
ref: 11009

GASKET,14X19.5X1.4 (NAS)

€ 3.50

16142

161421055
ref: 16142

COVER-PUMP

€ 68.00

49063

490631054
ref: 49063

SEAL-MECHANICAL

€ 19.00

59256

592561055
ref: 59256

IMPELLER

€ 20.00

92015

920151191
ref: 92015

NUT,LOCK,6MM,BLACK

€ 2.00

92022

92022304
ref: 92022

WASHER,PLAIN

€ 2.50

92025A

920251506
ref: 92025A

SHIM,T=1.4

€ 3.00

92025B

920251507
ref: 92025B

SHIM,T=0.8

€ 2.50

92025C

920251508
ref: 92025C

SHIM,T=0.3

€ 2.50

92049

920491157
ref: 92049

SEAL-OIL,SC10227

€ 6.50

132

132J0608
ref: 132

BOLT-FLANGED-SMALL

€ 2.50

132A

132W0630
ref: 132A

BOLT-FLANGED-SMALL

€ 2.50

132B

132W0645
ref: 132B

BOLT-FLANGED-SMALL

€ 3.00

411

411F0600
ref: 411

WASHER-PLAIN,6MM,BLAC

€ 0.50

610

610A0408
ref: 610

ROLLER,4X8

€ 2.50

670

670B1506
ref: 670

O RING,6MM

€ 1.00

WATER PUMP

all assemblies
