MUFFLER
KL250D2 1985 EUROPE UK FR GR IT SD ST

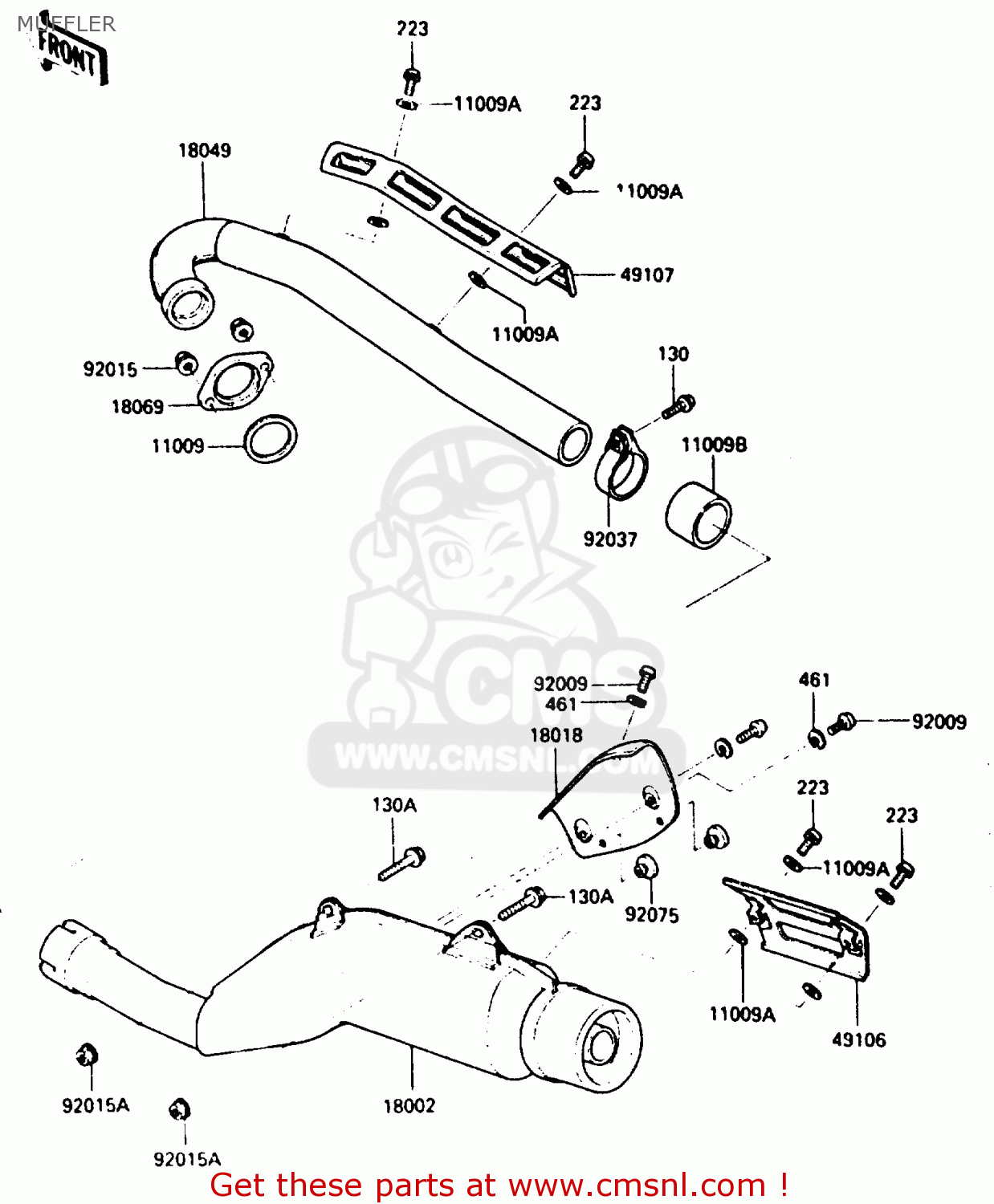

Muffler diagram KL250D2 1985 EUROPE UK FR GR IT SD ST
MUFFLER KL250D2 1985 EUROPE UK FR GR IT SD ST
×
prices are in EUR
ref
part #
description
quantity
11009
110091428
ref: 11009
GASKET,EXHAUST PIPE (NAS)
€ 16.00
11009A
110091451
ref: 11009A
GASKET,MUFFLER COVER (MCA)
€ 2.50
11009B
110091654
ref: 11009B
GASKET,CLUTCH COVER (MCA)
€ 15.00
18002
180021540
ref: 18002
BODY-COMP-MUFFLER
€ 421.00
18018
180181055
ref: 18018
PLATE-HEAT GUARD
€ 24.00
18049
180491302
ref: 18049
PIPE-EXHAUST
€ 142.50
18069
180691058
ref: 18069
HOLDER-EXHAUST PIPE
€ 34.00
49106
491061052
ref: 49106
COVER-MUFFLER
€ 31.00
49107
491071057
ref: 49107
COVER-EXHAUST PIPE
€ 50.00
92009
920091054
ref: 92009
SCREW
€ 2.00
92015
920151331
ref: 92015
NUT
€ 2.50
92015A
920151407
ref: 92015A
NUT,14MM
€ 6.50
92037
920371604
ref: 92037
CLAMP
€ 15.00
92075
92075005
ref: 92075
DAMPER
€ 2.50
130
130J0830
ref: 130
BOLT-FLANGED,8X30
€ 2.50
130A
130J0840
ref: 130A
BOLT-FLANGED,8X40
€ 3.00
223
223C0610
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
