ENGINE COVER
KL250D2 1985 EUROPE UK FR GR IT SD ST

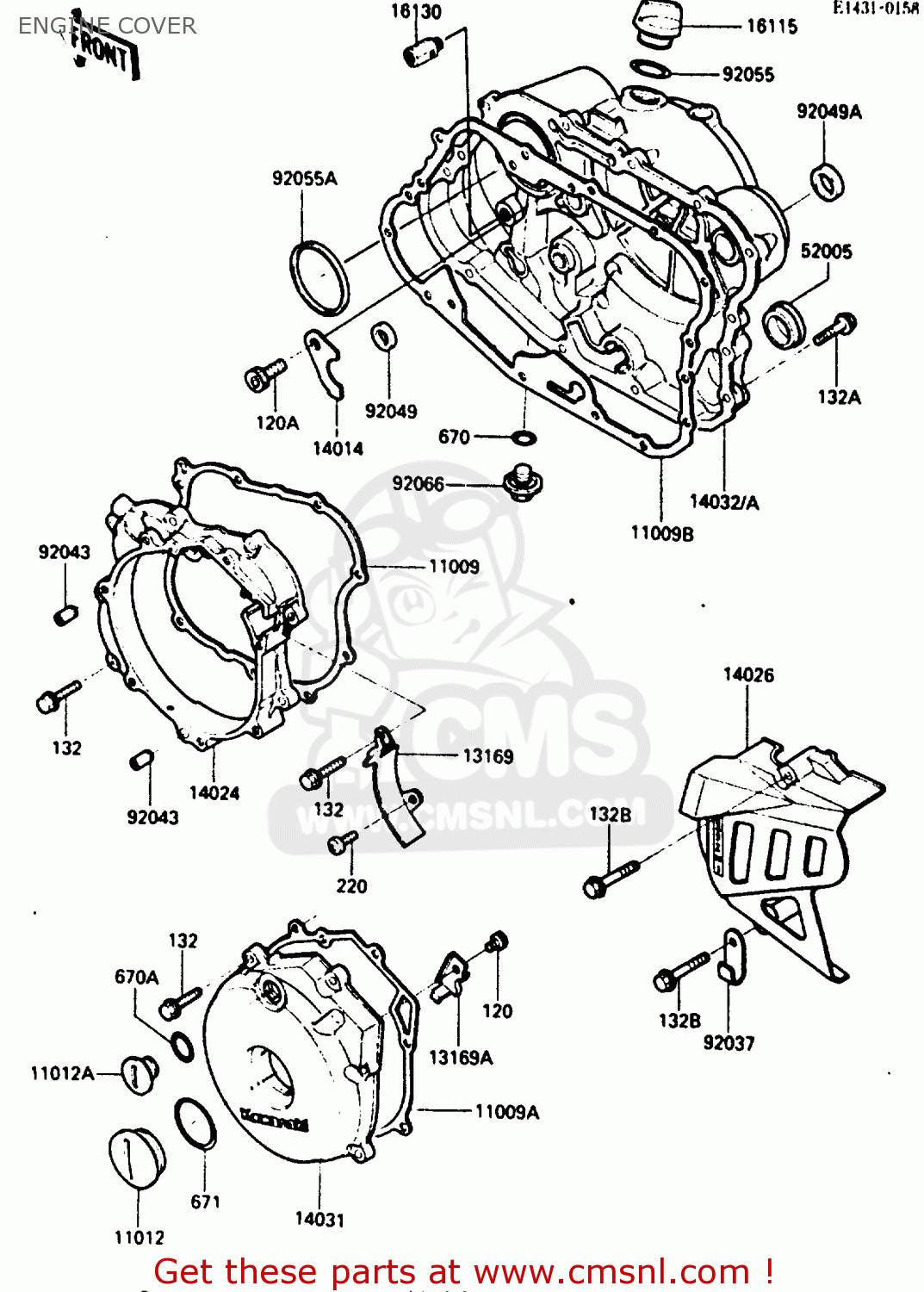

Engine cover diagram KL250D2 1985 EUROPE UK FR GR IT SD ST
ENGINE COVER KL250D2 1985 EUROPE UK FR GR IT SD ST
×
prices are in EUR
ref
part #
description
quantity
11009
110091435
ref: 11009
GASKET,GENERATOR CASE
€ 18.50
11009A
110091436
ref: 11009A
GASKET,GENERATOR COVE (MCA)
€ 12.50
11009B
110091437
ref: 11009B
GASKET,CLUTCH COVER (MCA)
€ 28.50
11012
110121362
ref: 11012
CAP
€ 6.00
11012A
110121363
ref: 11012A
CAP,TOP MARK
€ 4.00
13169
131691879
ref: 13169
PLATE
€ 11.50
13169A
131691880
ref: 13169A
PLATE,GENERATOR LEAD
€ 6.00
14014
140141062
ref: 14014
PLATE-POSITION
€ 5.50
14024
140251911
ref: 14024
COVER,GENERATOR CASE
€ 108.50
14026
140261112
ref: 14026
COVER-CHAIN
€ 40.00
14031
140311170
ref: 14031
COVER-GENERATOR
€ 174.50
14032
140321171
ref: 14032
( - KL250DE013185) (
COVER-CLUTCH
€ 197.00
14032A
140321227
ref: 14032A
( KL250DE013186 - )
COVER-CLUTCH
€ 280.00
16115
161151009
ref: 16115
CAP-OIL FILLER
€ 10.00
16130
161301001
ref: 16130
( KL250DE013186 - )
VALVE-ASSY-RELIEF
€ 28.50
52005
520051009
ref: 52005
GAUGE,OIL LEVEL
€ 12.00
92037
920371069
ref: 92037
CLAMP,L=60
€ 1.50
92043
92042007
ref: 92043
PIN-DOWEL
€ 4.00
92049
920491191
ref: 92049
SEAL-OIL
€ 16.00
92049A
92050078
ref: 92049A
OIL SEAL
€ 5.50
92055
92055049
ref: 92055
'0'RING,31MM
€ 2.50
92055A
920551221
ref: 92055A
RING-O,62.6X66X3.1
€ 6.00
92066
920661156
ref: 92066
PLUG,DRAIN
€ 9.50
120
120P0608
ref: 120
BOLT-SOCKET
€ 1.50
120A
120P0610
ref: 120A
BOLT-SOCKET,6X10
€ 1.00
132
132W0625
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
132A
132W0630
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
132B
132W0645
ref: 132B
BOLT-FLANGED-SMALL
€ 3.00
220
220B0608
ref: 220
SCREW-PAN HEAD,6X8
€ 0.50
670
670B2011
ref: 670
O RING,11MM
€ 1.00
670A
670D2018
ref: 670A
O RING,18MM
€ 1.50
671
671B2540
ref: 671
O RING,40MM
€ 4.00
