CRANKCASE
KL250D2 1985 EUROPE UK FR GR IT SD ST

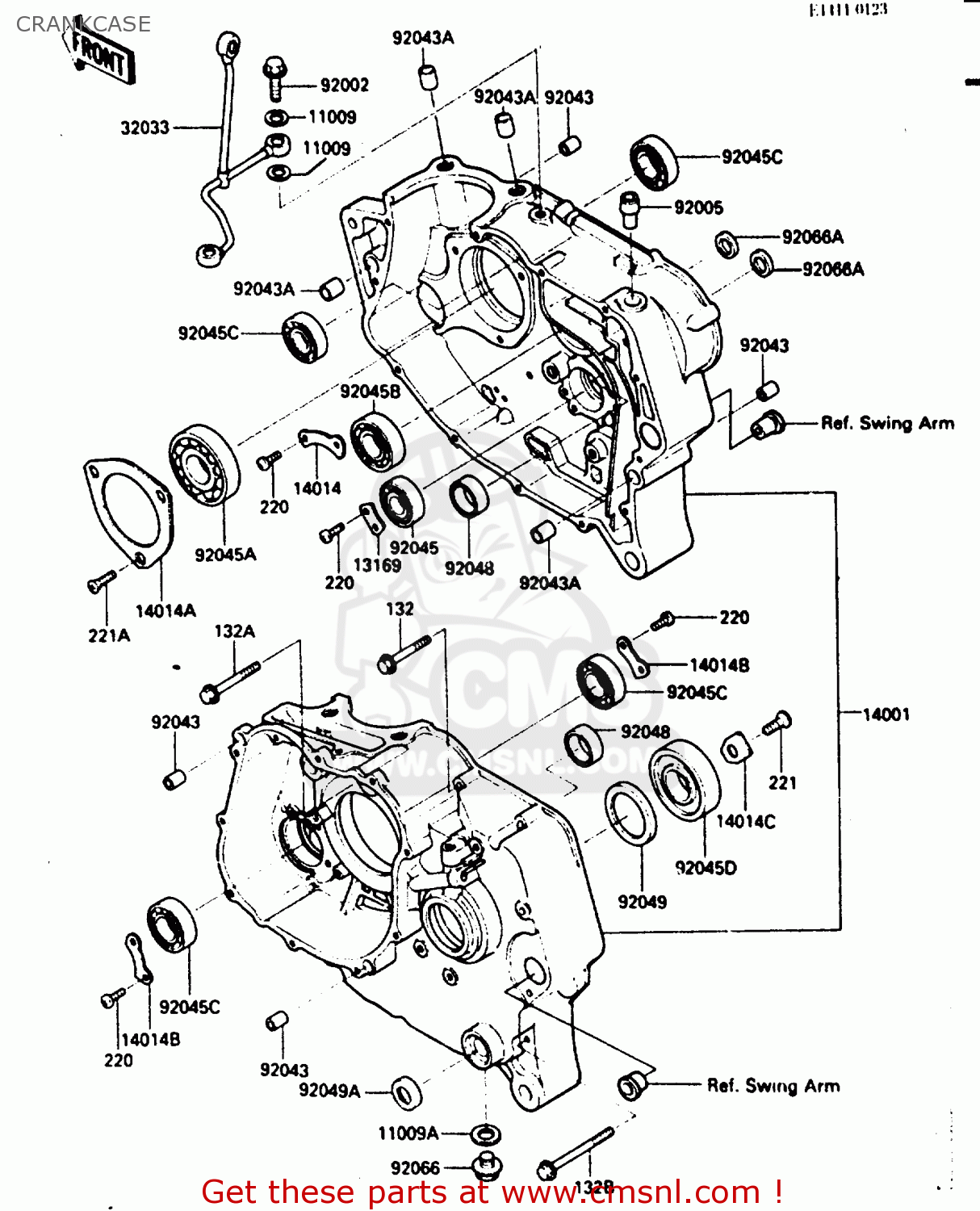

Crankcase diagram KL250D2 1985 EUROPE UK FR GR IT SD ST
CRANKCASE KL250D2 1985 EUROPE UK FR GR IT SD ST
×
prices are in EUR
ref
part #
description
quantity
11009
110091105
ref: 11009
GASKET,10X14.5X1.5 (NAS)
€ 4.00
11009A
92065097
ref: 11009A
GASKET,DRAIN PLUG BOL (NAS)
€ 1.00
13169
13169014
ref: 13169
PLATE,GEAR CHANGE DRU
€ 3.00
14001
140015180
ref: 14001
SET-CRANKCASE
€ 955.00
14014
14014037
ref: 14014
PLATE-POSITION
€ 2.50
14014A
140141004
ref: 14014A
PLATE,POSITIONING
€ 8.00
14014B
140141014
ref: 14014B
PLATE-POSITION
€ 2.50
14014C
140141057
ref: 14014C
PLATE-POSITION
€ 2.50
32033
320331427
ref: 32033
PIPE
€ 98.00
92002
920021170
ref: 92002
BOLT,BANJO,10X25
€ 6.50
92005
14067006
ref: 92005
BREATHER JOINT
€ 14.00
92043
92042007
ref: 92043
PIN-DOWEL
€ 4.00
92043A
920434009
ref: 92043A
PIN,10.1X12X14
€ 4.00
92045
92045036
ref: 92045
BEARING-BALL,#6905
€ 29.00
92045A
92045037
ref: 92045A
BEARING-BALL,#6306
€ 40.00
92045B
920451041
ref: 92045B
BEARING-BALL,TMB204 J
€ 32.50
92045C
920451118
ref: 92045C
BEARING-BALL,6004TMB
€ 23.50
92045D
920451127
ref: 92045D
BEARING-BALL,TM-SX059
€ 47.00
92048
920481057
ref: 92048
RACE,26X33X13
€ 29.50
92049
920491159
ref: 92049
SEAL-OIL,TC32457
€ 8.00
92049A
92050082
ref: 92049A
OIL SEAL,CHANGE SHAFT
€ 5.50
92066
92066053
ref: 92066
BOLT,DRAIN PLUG
€ 4.00
92066A
92066064
ref: 92066A
PLUG
€ 4.00
132
132W0640
ref: 132
BOLT-FLANGED-SMALL
€ 3.00
132A
132W0630
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
132B
132W0670
ref: 132B
BOLT-FLANGED-SMALL
€ 3.00
220
220B0614
ref: 220
SCREW-PAN HEAD,6X14
€ 2.00
221
221B0612
ref: 221
SCREW-CNTSNK HD,6X12
€ 1.50
221A
221B0616
ref: 221A
SCREW-CNTSNK HD,6X16
€ 0.50
