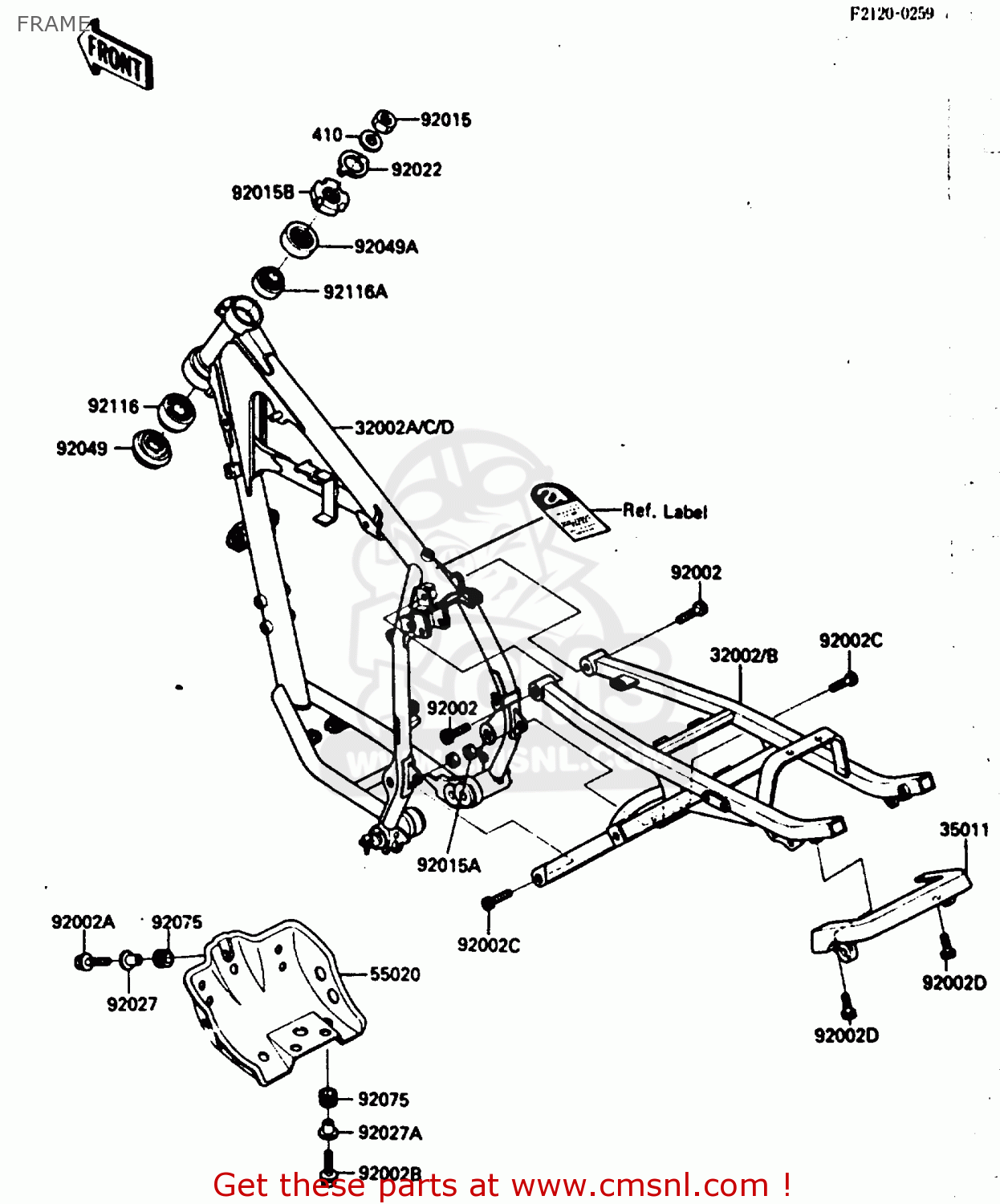

FRAME

ref

part #

description

quantity

32002

320021762
ref: 32002
EU, FR, GR, IT, SD,

FRAME-COMP,AL,RR

€ 529.50

32002A

320021766
ref: 32002A
GU, FR, DR, IT, UK

FRAME-COMP,FR

€ 641.50

32002B

320021778
ref: 32002B
IT, WG

FRAME-COMP,AL,RR

€ 529.50

32002C

320021785
ref: 32002C
SD

FRAME-COMP,FR

€ 502.00

32002D

320021001
ref: 32002D
ST, WG

FRAME

€ 397.00

35011

350111236
ref: 35011

STAY,FRAME,RR

€ 41.00

35020

550201168
ref: 35020

GUARD,ENGINE

€ 205.50

92002

920021181
ref: 92002

BOLT,SOCKET,8X40

€ 5.50

92002A

920021417
ref: 92002A

BOLT,FLANGED,8X20

€ 2.50

92002B

920021418
ref: 92002B

BOLT,6X20

€ 3.00

92002C

920021442
ref: 92002C

BOLT,SOCKET,8X25

€ 3.00

92002B

920021443
ref: 92002B

BOLT,SOCKET,8X10

€ 3.50

92015

920151404
ref: 92015

NUT,18MM

€ 15.50

92015A

920151406
ref: 92015A

NUT,8MM

€ 3.00

92015B

920151546
ref: 92015B

NUT,25MM,T=12

€ 14.50

92022

920221555
ref: 92022

WASHER,CLAW,18.5X30X2

€ 4.50

92027

920271842
ref: 92027

COLLAR,L=12

€ 4.50

92027A

92027251
ref: 92027A

COLLAR,L=13.1

€ 1.00

92049

920491162
ref: 92049

SEAL-OIL,XMHE36X52X4J

€ 7.50

92049A

920491214
ref: 92049A

SEAL-OIL,STEERING STE

€ 11.00

92075

92075209
ref: 92075

DAMPER RUBBER

€ 3.00

92116

921161009
ref: 92116

BEARING R,HR320/28XJ

€ 41.00

92116A

921161052
ref: 92116A

BEARING-ROLLER,25X47X

€ 41.00

410

410F1800
ref: 410

W-PLAIN-S

€ 3.00
