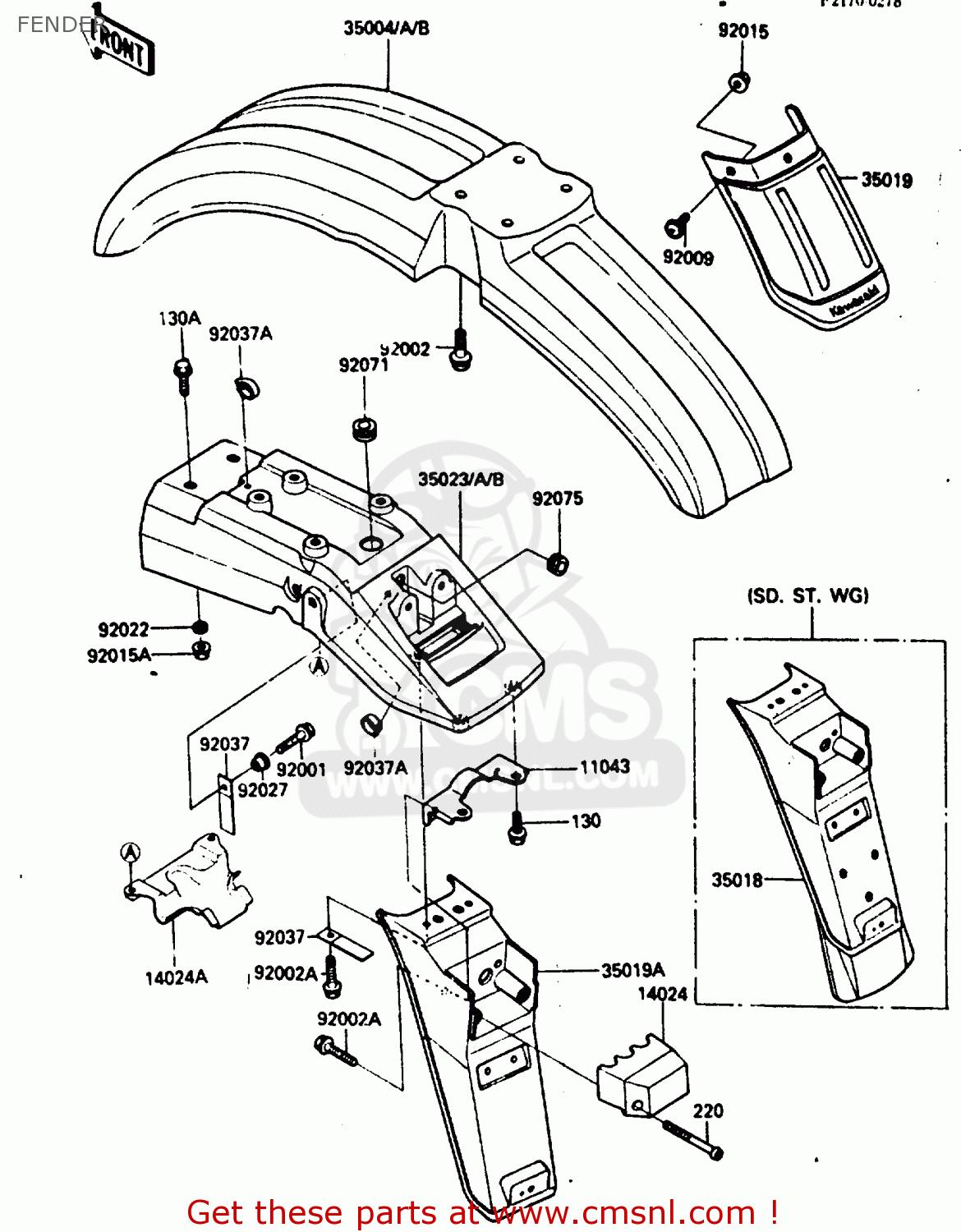

FENDER

ref

part #

description

quantity

11043

110431734
ref: 11043

BRACKET,REAR FLAP

€ 10.00

14024

140251933
ref: 14024

COVER,LICENSE PLATE L

€ 17.00

14024A

140251982
ref: 14024A

COVER,HARNESS

€ 12.50

35004

3500411536B
ref: 35004
EU, GR, IT, SD, ST,

FENDER-FRONT,S.RED

€ 75.50

35004A

3500411536F
ref: 35004A
FR, DR, IT

FENDER-FRONT,P.WHITE

€ 72.00

35004B

3500411536W
ref: 35004B
SU, FR, GR, SD, ST,

FENDER-FRONT,L.GREEN

€ 73.00

35018

350181051
ref: 35018
SD, ST, WG

FLAP-ASSY,FENDER,RR

€ 31.00

35019

350191002
ref: 35019
ST, WG

FLAP,FENDER,FR

€ 11.50

35019A

350191117
ref: 35019A
EU, FR, GR, IT, UK

FLAP,FENDER,RR

€ 27.50

35023

3502311146B
ref: 35023
EU, GR, IT, SD, ST,

FENDER-REAR,RR,S.RED

€ 73.50

35023A

3502311146F
ref: 35023A
FR, DR, IT

FENDER-REAR,RR,P.WHIT

€ 79.00

35023B

3502311146W
ref: 35023B
EU, FR, GR, SD, ST,

FENDER-REAR,RR,L.GREE

€ 73.00

92001

920011773
ref: 92001

BOLT,6X20

€ 2.50

92002

920021187
ref: 92002

BOLT,6X16

€ 2.50

92002A

920021188
ref: 92002A

BOLT,6X16

€ 3.00

92009

920091308
ref: 92009
ST, WG

SCREW,6X14

€ 2.00

92015

920151193
ref: 92015
ST, WG

NUT,FLANGED,6MM

€ 0.50

92015A

920151367
ref: 92015A

NUT,FLANGED,6MM

€ 0.50

92022

920221557
ref: 92022
EU, FR, GR, IT, UK

WASHER,6.5X20X1.6

€ 1.00

92022

920221557
ref: 92022
SD, ST, WG

WASHER,6.5X20X1.6

€ 1.00

92027

92027122
ref: 92027

COLLAR,L=4.7

€ 5.50

92037

920371069
ref: 92037

CLAMP,L=60

€ 1.50

92037A

920371163
ref: 92037A

CLAMP,HARNESS,REAR

€ 4.50

92071

920711027
ref: 92071

GROMMET,AIR CLEANER

€ 3.00

92075

920751028
ref: 92075

DAMPER RUBBER

€ 3.00

130

130D0608
ref: 130

BOLT-FLANGED

€ 0.50

130A

130D0612
ref: 130A

BOLT,FLANGED

€ 0.50

220

220C0545
ref: 220

SCREW-PAN-CROS

€ 1.50
