TRANSMISSION
KL250D2 1985 EUROPE UK FR GR IT SD ST

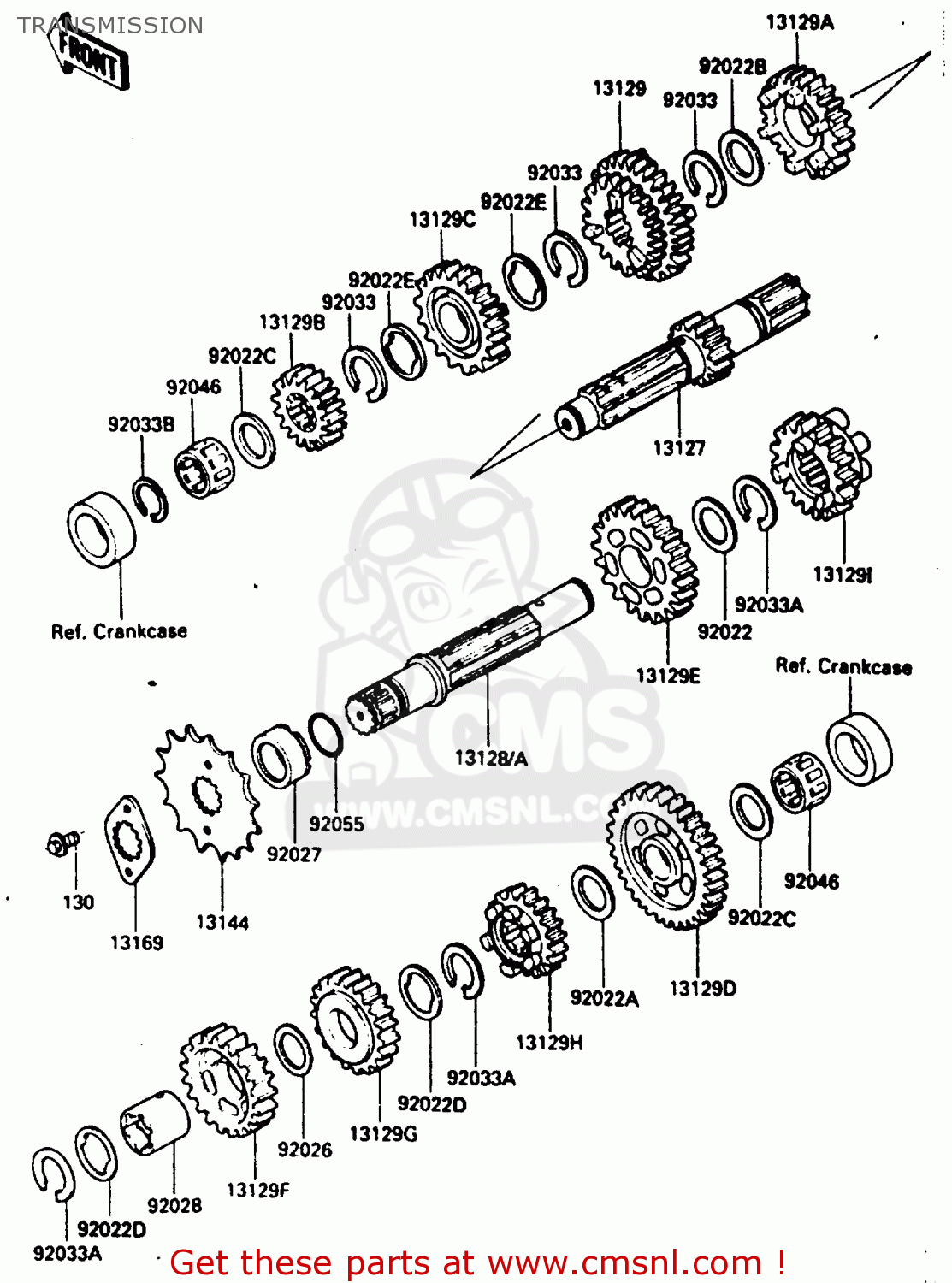

Transmission diagram KL250D2 1985 EUROPE UK FR GR IT SD ST
TRANSMISSION KL250D2 1985 EUROPE UK FR GR IT SD ST
×
prices are in EUR
ref
part #
description
quantity
13127
131271121
ref: 13127
SHAFT-TRANSMISSION IN
€ 161.50
13128
131281117
ref: 13128
( - KL250DE012136) (
SHAFT-TRANSMISSION
€ 82.50
13128A
131281139
ref: 13128A
( KL250DE012137 - )
SHAFT-TRANSMISSION OU
€ 167.50
13129
131291602
ref: 13129
GEAR,INPUT 3RD&4TH,18
€ 124.00
13129A
131291603
ref: 13129A
GEAR,INPUT 5TH,20T
€ 107.00
13129B
131291646
ref: 13129B
GEAR-INPUT 2ND,15T
€ 70.00
13129C
131291647
ref: 13129C
GEAR,INPUT TOP,21T
€ 59.00
13129D
131291648
ref: 13129D
GEAR-OUTPUT LOW,30T
€ 119.50
13129E
131291649
ref: 13129E
GEAR-OUTPUT 2ND,30T
€ 106.50
13129F
131291650
ref: 13129F
GEAR,OUTPUT 3RD,27T
€ 106.50
13129G
131291651
ref: 13129G
GEAR,OUTPUT 4TH,25T
€ 107.00
13129H
131291632
ref: 13129H
GEAR,INPUT 5TH,28T
€ 51.00
13129I
131291653
ref: 13129I
GEAR,OUTPUT TOP,19T
€ 95.50
13144
131441103
ref: 13144
SPROCKET-OUTPUT,15T
€ 36.00
13169
131691109
ref: 13169
PLATE,ENGINE SPROCKET
€ 5.50
92022
92022159
ref: 92022
WASHER-THRUST,25MM
€ 5.50
92022A
920221614
ref: 92022A
( KL250DE012137 - )
WASHER,17.3X25X0.5
€ 2.50
92022B
92022198
ref: 92022B
WASHER-PLAIN
€ 3.50
92022C
92022255
ref: 92022C
WASHER
€ 5.50
92022D
92024038
ref: 92022D
WASHER-LOCK
€ 4.00
92022E
92024039
ref: 92022E
WASHER-LOCK
€ 4.00
92026
92026079
ref: 92026
WASHER,30X38X1
€ 6.00
92027
920271800
ref: 92027
COLLAR
€ 19.50
92028
920281016
ref: 92028
BUSHING,OUTPUT SHAFT
€ 21.00
92033
92033025
ref: 92033
CIRCLIP,25MM
€ 3.00
92033A
92033026
ref: 92033A
CIRCLIP
€ 6.00
92033B
92033032
ref: 92033B
CIRCLIP
€ 3.00
92046
920461156
ref: 92046
BEARING-NEEDLE,K17X25
€ 26.00
92053
920551293
ref: 92053
RING-O, 21.5MM
€ 3.00
130
130G0608
ref: 130
BOLT-FLANGED
€ 0.50
