TAILLIGHT/TURN SIGNALS
KH100B8 1977 CANADA

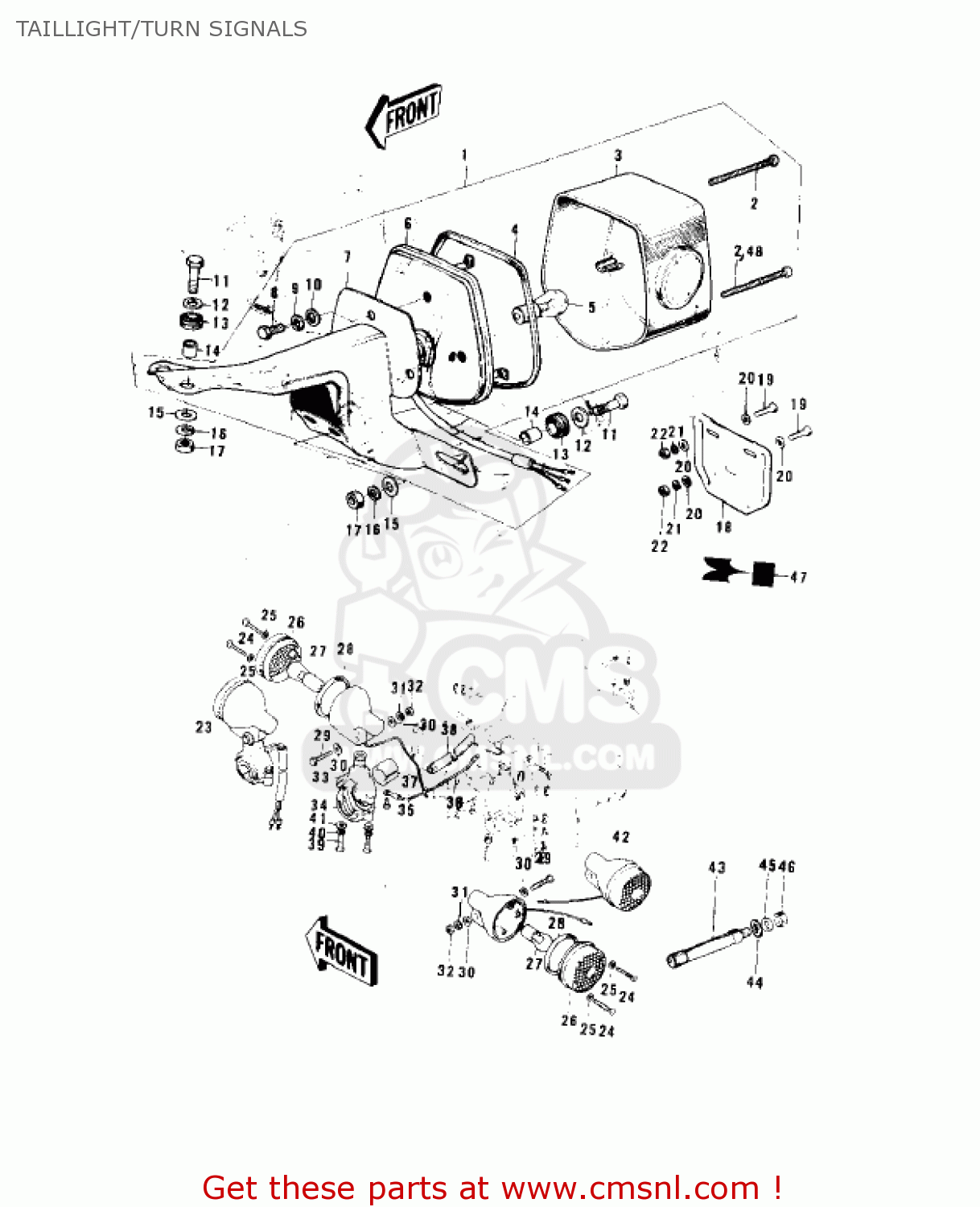

Taillight/turn signals diagram KH100B8 1977 CANADA
TAILLIGHT/TURN SIGNALS KH100B8 1977 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
2302404910
ref: 1
BLACK
TAIL LAMP ASSEMBLY,BLACK
€ 228.00
2
220R0455
ref: 2
(1 REQ KH100-B8)
SCREW-PAN-CROS
€ 3.50
3
23026028
ref: 3
LENS,TAIL LAMP,W/REFL
€ 48.50
4
23028019
ref: 4
GASKET,TAIL LAMP LENS (NAS)
€ 5.50
5
92069074
ref: 5
BULB,6V-32X3CP
€ 4.50
6
230271018
ref: 6
TAIL LAMP BODY,COMPLETE
€ 55.00
7
2303603010
ref: 7
BLACK
BRACKET,LICENSE PLATE
€ 64.00
8
112B0614
ref: 8
BOLT-UPSET 6X14
€ 2.50
8
112B0614
ref: 8
BOLT-UPSET 6X14
€ 2.50
9
461F0600
ref: 9
WASHER-SPRING,6MM
€ 0.50
10
411B0600
ref: 10
(N/R KH100-B8)
WASHER-PLAIN,6MM
€ 0.50
11
112B0622
ref: 11
BOLT, 6X22
€ 2.50
11
112B0622
ref: 11
BOLT, 6X22
€ 2.50
12
92022125
ref: 12
WASHER,6.5X20X1.6
€ 1.00
13
92075076
ref: 13
DAMPER
€ 3.00
14
92027129
ref: 14
COLLAR,6.8X10X8.5
€ 3.00
15
411B0600
ref: 15
WASHER-PLAIN,6MM
€ 0.50
16
461F0600
ref: 16
WASHER-SPRING,6MM
€ 0.50
17
311B0600
ref: 17
NUT,6MM
€ 0.50
18
110341117
ref: 18
BRACKET,LICENSE PLATE
€ 12.50
19
112G0620
ref: 19
BOLT 6X20
€ 1.00
20
411B0600
ref: 20
WASHER-PLAIN,6MM
€ 0.50
21
461F0600
ref: 21
WASHER-SPRING,6MM
€ 0.50
22
311B0600
ref: 22
NUT,6MM
€ 0.50
23
23037005
ref: 23
LAMP ASY-FR TURN SIG
€ 53.50
24
220E0420A
ref: 24
SCREW-PAN HEAD,4X20
€ 2.50
25
23058002
ref: 25
WASHER,PLAIN,4MM
€ 2.00
26
230481001
ref: 26
LENS-SIGNAL LAMP,045-
€ 10.50
27
92069056
ref: 27
BULB,6V 21CP
€ 4.50
28
23050003
ref: 28
GASKET,SIGNAL LAMP (NAS)
€ 3.50
29
112G0630
ref: 29
BOLT-UPSET
€ 1.00
30
411D0600
ref: 30
WASHER-PLAIN,6MM
€ 1.50
31
461F0600
ref: 31
WASHER-SPRING,6MM
€ 0.50
32
311B0600
ref: 32
NUT,6MM
€ 0.50
33
230511004
ref: 33
BRACKET-SIGNAL LAMP,F
€ 23.00
34
230511013
ref: 34
BRACKET-SIGNAL LAMP,F
€ 11.50
35
220B0305A
ref: 35
SCREW-PAN HEAD,3X5
€ 1.00
36
26011061
ref: 36
WIRE-LEAD,SIGNAL LAMP
€ 2.50
37
23066003
ref: 37
DAMPER
€ 3.50
38
26009004
ref: 38
COVER-WIRING HARNESS
€ 1.00
39
110N0516
ref: 39
BOLT,5X16
€ 2.00
40
461F0500
ref: 40
WASHER-SPRING,5MM
€ 0.50
41
410D0500
ref: 41
WASHER-PLAIN,5MM
€ 1.50
42
23040038
ref: 42
TURN SIGNAL LAMP ASSEMBLY
€ 202.00
43
23051047
ref: 43
BRACKET-SIGNAL LAMP
€ 53.50
44
411B1200
ref: 44
WASHER-PLAIN,12MM
€ 0.50
45
461F1200
ref: 45
WASHER-SPRING,12MM
€ 0.50
46
311B1200
ref: 46
NUT,12MM
€ 0.50
47
56018176
ref: 47
EMBLEM,LICENSE PLATE
€ 8.50
48
220E0450
ref: 48
KH100-B8
SCREW-PAN HEAD,4X50
€ 3.00
